Removal [09/2014 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 2 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 1 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 1 [03/2019 - 01/2023] , or refer to PROCEDURE - Step 1 [01/2023 - ]

  3. REMOVE CENTER NO. 4 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 2 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 2 [10/2015 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]

  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

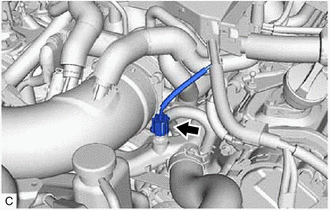

      GTY515733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor from the front water by-pass joint.

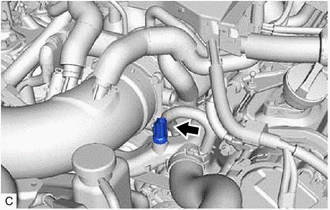

      GTY515729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

    3. Remove the gasket from the engine coolant temperature sensor.
