Inspection [09/2014 - ]: Procedure
- INSPECT HEATED OXYGEN SENSOR
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 (HT1B) - 2 (+B)
1 (HT2B) - 2 (+B)20°C (68°F) 11 to 16 Ω 1 (HT1B) - 4 (E2)

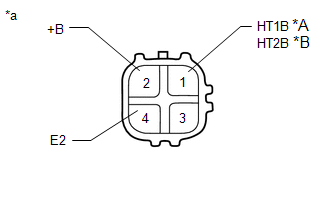

1 (HT2B) - 4 (E2)Always 10 kΩ or higher *A for Bank 1 *B for Bank 2 *a Component without harness connected
(Heated Oxygen Sensor)If the result is not as specified, replace the heated oxygen sensor.
- Measure the resistance according to the value(s) in the table below.
