Components [09/2014 - ]

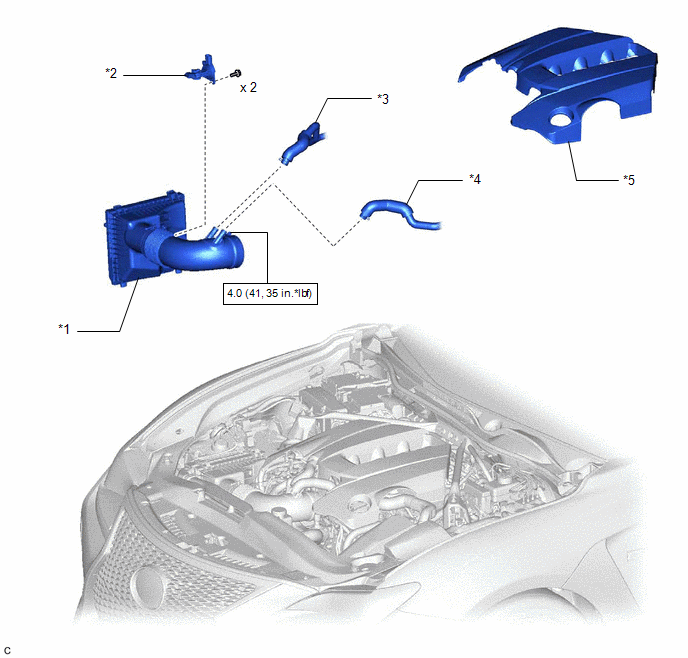

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
GTY503751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 MASS AIR FLOW METER SUB-ASSEMBLY
*3 NO. 2 VENTILATION HOSE *4 NO. 3 VENTILATION HOSE
*5 V-BANK COVER SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
