Removal [09/2014 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 2 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - ]

  2. DISCONNECT VENTILATION HOSE

    See step  5

  3. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  6

  4. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

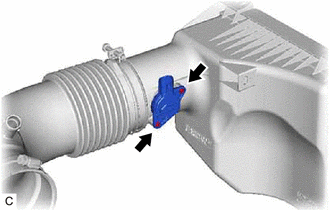

    1. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      GTY515739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.
