Inspection [09/2014 - ]: Procedure

  1. INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (M-) - 2 (M+) 20°C (68°F) 0.3 to 100 Ω

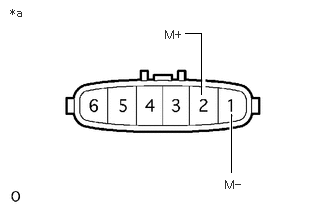

      GTY445465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Throttle Body with Motor Assembly)

      If the result is not as specified, replace the throttle body with motor assembly.
