On-Vehicle Inspection [09/2014 - ]: Procedure
- INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY
- Before cleaning, or after cleaning the throttle body with motor assembly and installing it to the vehicle, turn the engine switch on (IG) without operating the accelerator pedal sensor assembly.NOTE:
If the accelerator pedal sensor assembly has been operated, restart the procedure from the step above.
- Connect the Techstream to the DLC3 and check for DTCs. If DTCs are stored, repair them by following the repair procedure flow. If DTCs are not stored, perform the throttle body operation check.
- Check throttle body operation.
- Enter the following menus:
Powertrain / Engine / Active Test / Control the ETCS Open/Close Slow Speed
- During Active Test operation, check the Data List items "Throttle Position Command" and "Throttle Position No. 1".
Powertrain > Engine > Active Test

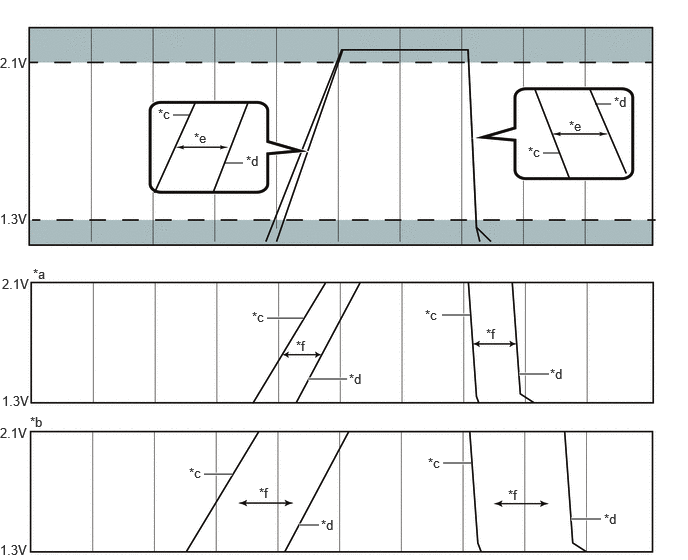

Active Test Display Control the ETCS Open/Close Slow Speed Data List Display Throttle Position No. 1 Throttle Position Command *a Correct *b Incorrect *c Throttle Position Command *d Throttle Position No. 1 *e Specified Condition *f 200 ms OK
Tester Display Condition Specified Condition Throttle Position Command
Throttle Position No. 1Checked during Active Test operation at a voltage of 1.3 V to 2.1 V. Response lag between Throttle Position Command and Throttle Position No. 1 is within 200 ms. - Enter the following menus:
Powertrain / Engine / Active Test / Control the ETCS Open/Close Fast Speed
- During Active Test operation, check the Data List items "Throttle Position Command" and "Throttle Position No. 1".
Powertrain > Engine > Active Test
Active Test Display Control the ETCS Open/Close Fast Speed Data List Display Throttle Position No. 1 Throttle Position Command *a Correct *b Incorrect *c Throttle Position Command *d Throttle Position No. 1 *e Specified Condition *f 200 ms OK
Tester Display Condition Specified Condition Throttle Position Command
Throttle Position No. 1Checked during Active Test operation at a voltage of 1.3 V to 2.1 V. Response lag between Throttle Position Command and Throttle Position No. 1 is within 200 ms.
- Enter the following menus:
- Warm up the engine.NOTE:
- The A/C switch and all accessory switches should be off.
- The electric fan should be off.
- After warming up the engine, check that the coolant temperature is 75°C (167°F) or more.
- Check the "Throttle Sensor Volt %".
- Read the Data List while quickly and fully depressing the accelerator pedal and check that the value for "Throttle Sensor Volt %" is 60% or more.
- If there was any abnormality found during the throttle body operation check or "Throttle Sensor Volt %" check, clean the throttle body, then reassemble it and perform the throttle body operation check again. If the operation returns to normal, the procedure is complete. If operation does not return to normal, replace the throttle body with motor assembly.
- Perform "Inspection After Repair" after replacing or cleaning the throttle body with motor assembly.
Refer to INITIALIZATION [09/2014 - ]
- Before cleaning, or after cleaning the throttle body with motor assembly and installing it to the vehicle, turn the engine switch on (IG) without operating the accelerator pedal sensor assembly.
