Parts Location [01/2023 - ]: Illustration

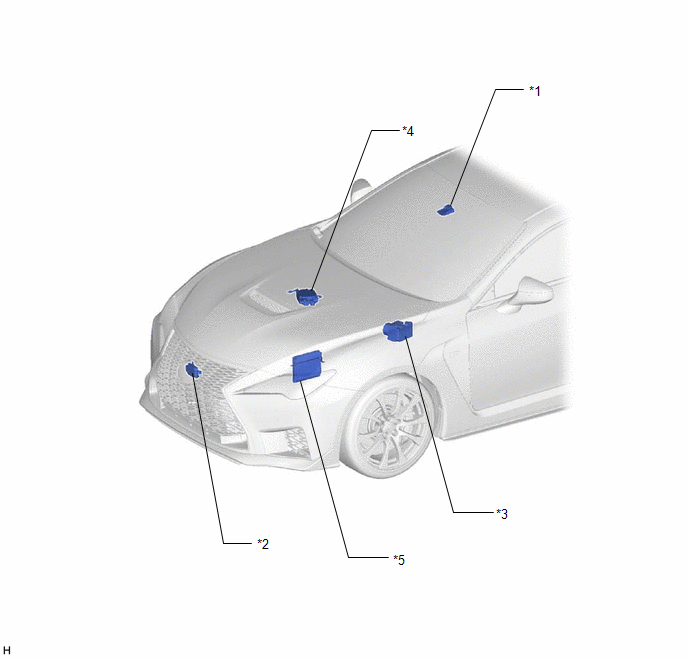

GTY1171235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD RECOGNITION CAMERA *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) *4 POWER STEERING ECU ASSEMBLY
*5 ECM - -

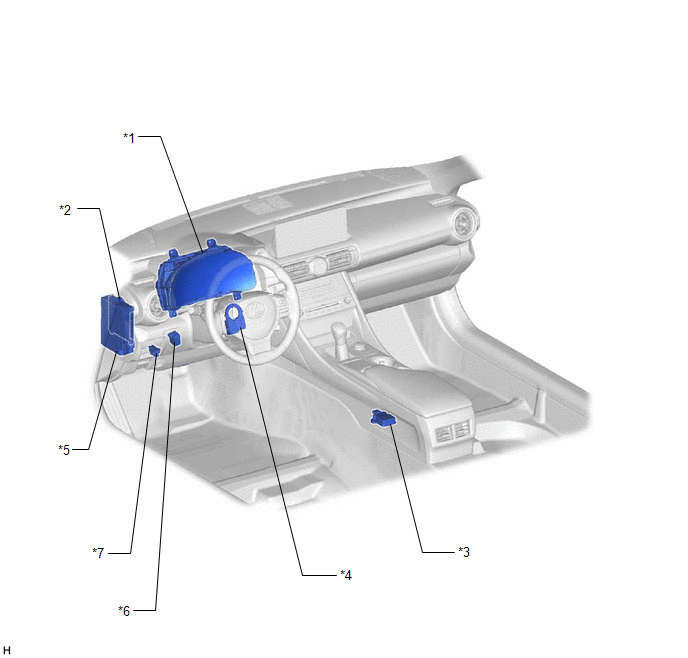

GTY1170351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 YAW RATE SENSOR *4 STEERING SENSOR
*5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- IG1 NO. 3 FUSE		 *6 SKID CONTROL BUZZER ASSEMBLY
*7 DLC3 - -
