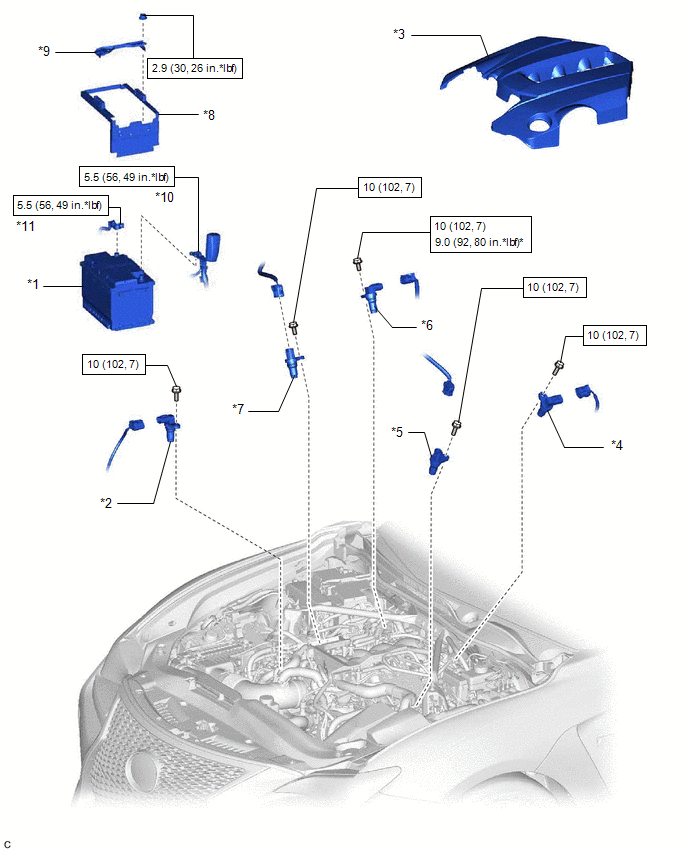

Components [09/2014 - ]
| *1 | BATTERY | *2 | CAMSHAFT POSITION SENSOR |
| *3 | V-BANK COVER SUB-ASSEMBLY | *4 | VVT SENSOR (for Intake Side of Bank 1) |
| *5 | VVT SENSOR (for Exhaust Side of Bank 1) | *6 | VVT SENSOR (for Intake Side of Bank 2) |
| *7 | VVT SENSOR (for Exhaust Side of Bank 2) | *8 | BATTERY INSULATOR |
| *9 | BATTERY CLAMP | *10 | POSITIVE BATTERY TERMINAL |
| *11 | NEGATIVE BATTERY TERMINAL | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench |
