Components [09/2014 - ]

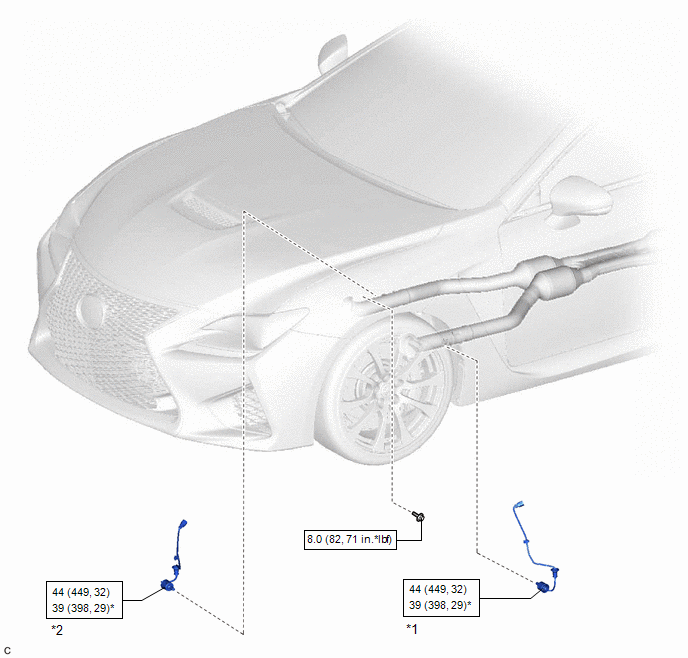

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY511006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HEATED OXYGEN SENSOR (for Bank 1) *2 HEATED OXYGEN SENSOR (for Bank 2)
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
