Removal [09/2014 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  3. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 4 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE CASE SEPARATOR

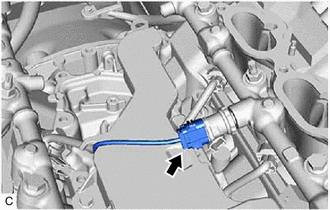

    1. Disconnect the fuel pressure sensor connector.
      GTY521513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

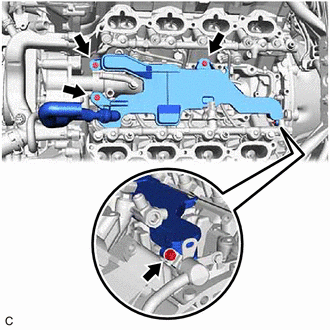

    2. Remove the 4 bolts and case separator.
      GTY515751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE KNOCK CONTROL SENSOR

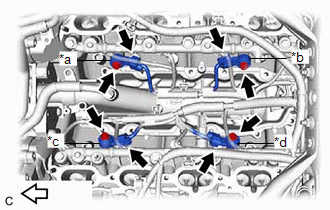

    1. Disconnect the 4 knock control sensor connectors.
      GTY517338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a for Bank 2 Sensor 1
      *b for Bank 2 Sensor 2
      *c for Bank 1 Sensor 1
      *d for Bank 1 Sensor 2
      Engine Front
    2. Remove the 4 bolts and 4 knock control sensors from the cylinder block sub-assembly.
      NOTE:

      If a knock control sensor has been struck or dropped, replace it.
