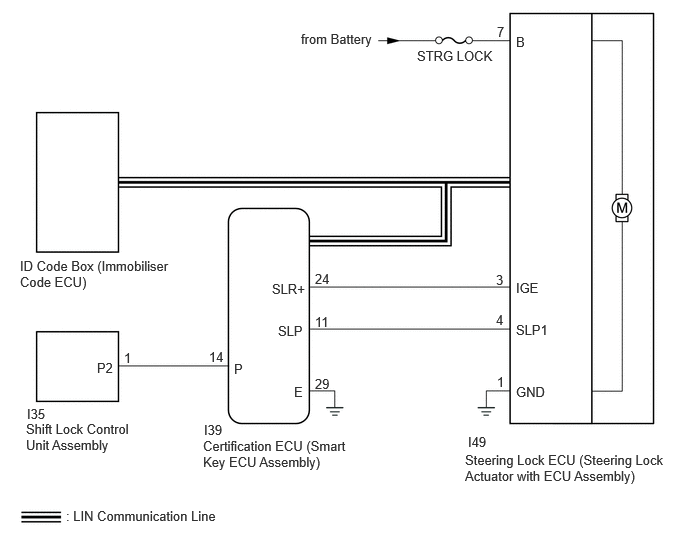

Steering Lock does not Lock [12/2021 - ]: Wiring Diagram

GTY1124205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
