System Diagram [12/2021 - ]

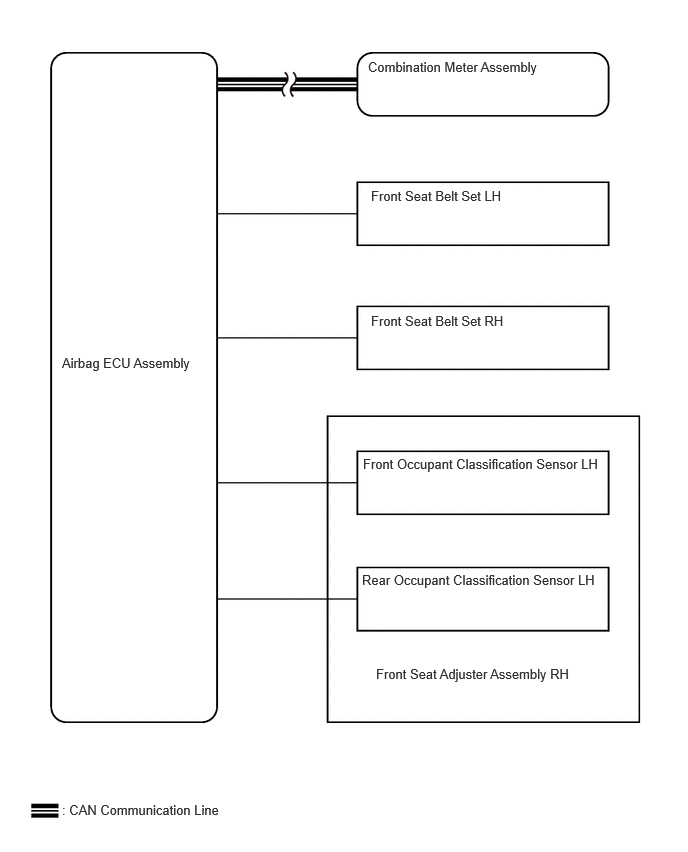

  1. FRONT SEAT BELT WARNING
    GTY1134795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

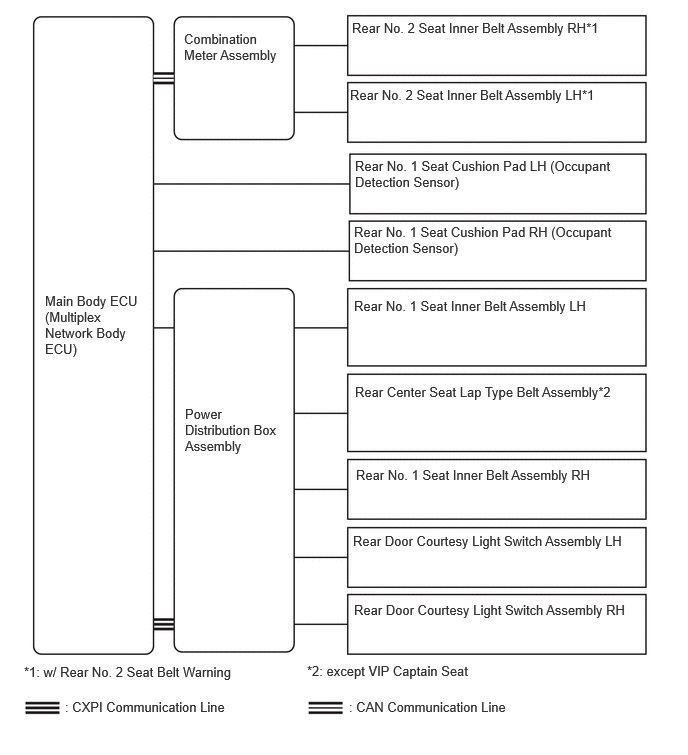

  2. REAR SEAT BELT WARNING
    GTY1059018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
