Electronic Control Assembly (ECA): Notes

The ECA is a solid-state, micro-computer consisting of a processor assembly and a calibration assembly. This unit is located in the passenger compartment under the instrument panel, to the left of the steering column. The ECA is the "brain" of the EEC system.

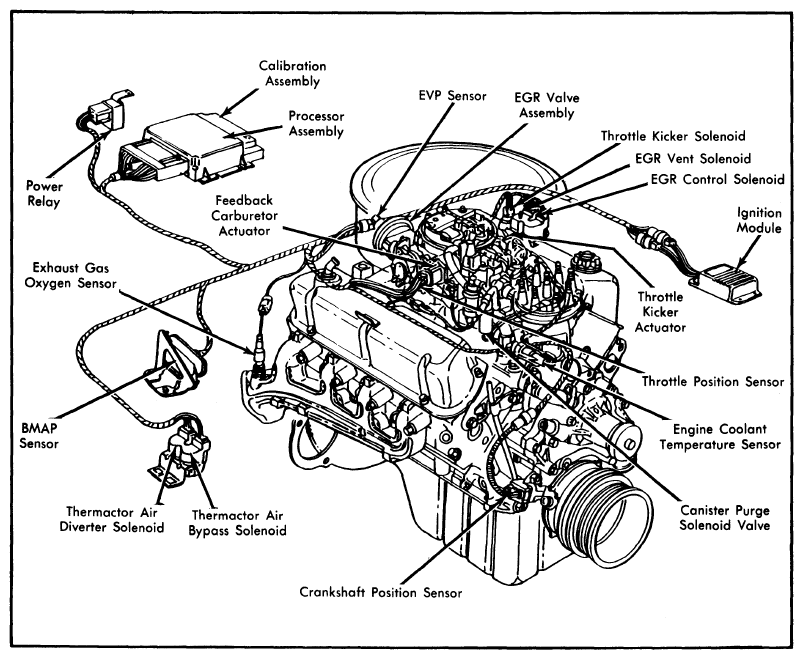

Fig 1: Electronic Engine Control Component Locations (Carburetor Model Shown)

Courtesy of FORD MOTOR CO.
