Service Point Locations

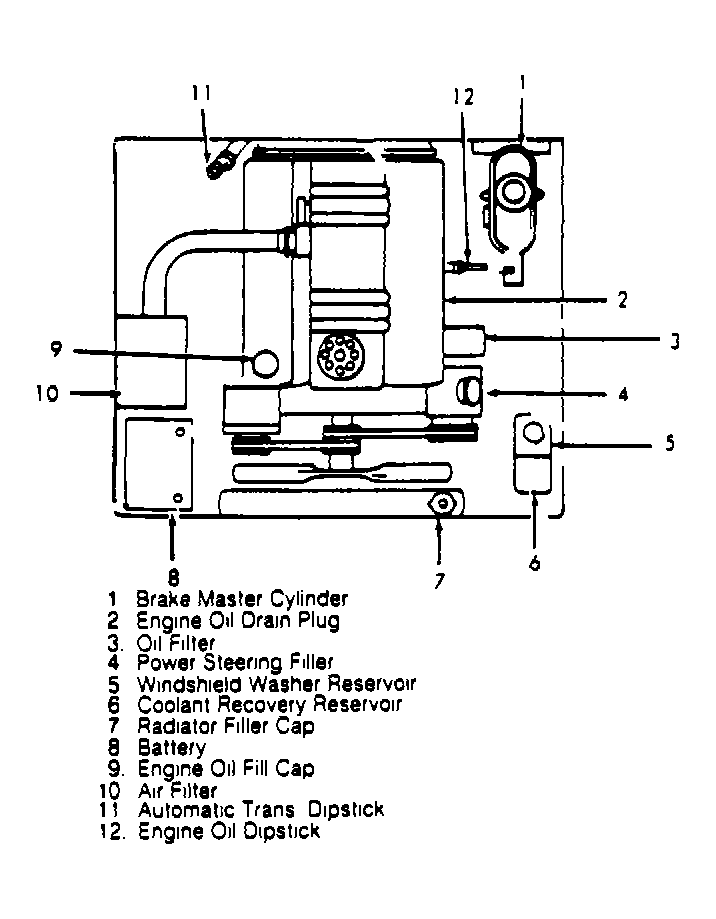

Fig 1: Service Point Locations (5.0L Engine)
G90E04175Courtesy of FORD MOTOR CO.

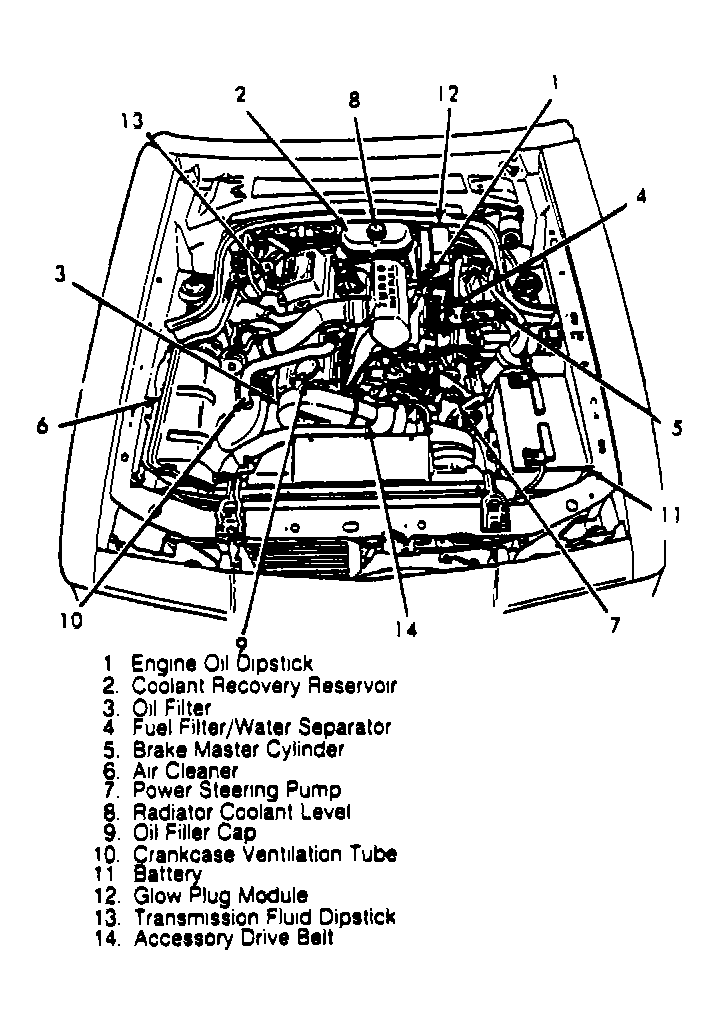

Fig 2: Service Point Locations (2.4L Diesel Engine)
G90G04176Courtesy of FORD MOTOR CO.
