Fuses & Circuit Breakers: Notes

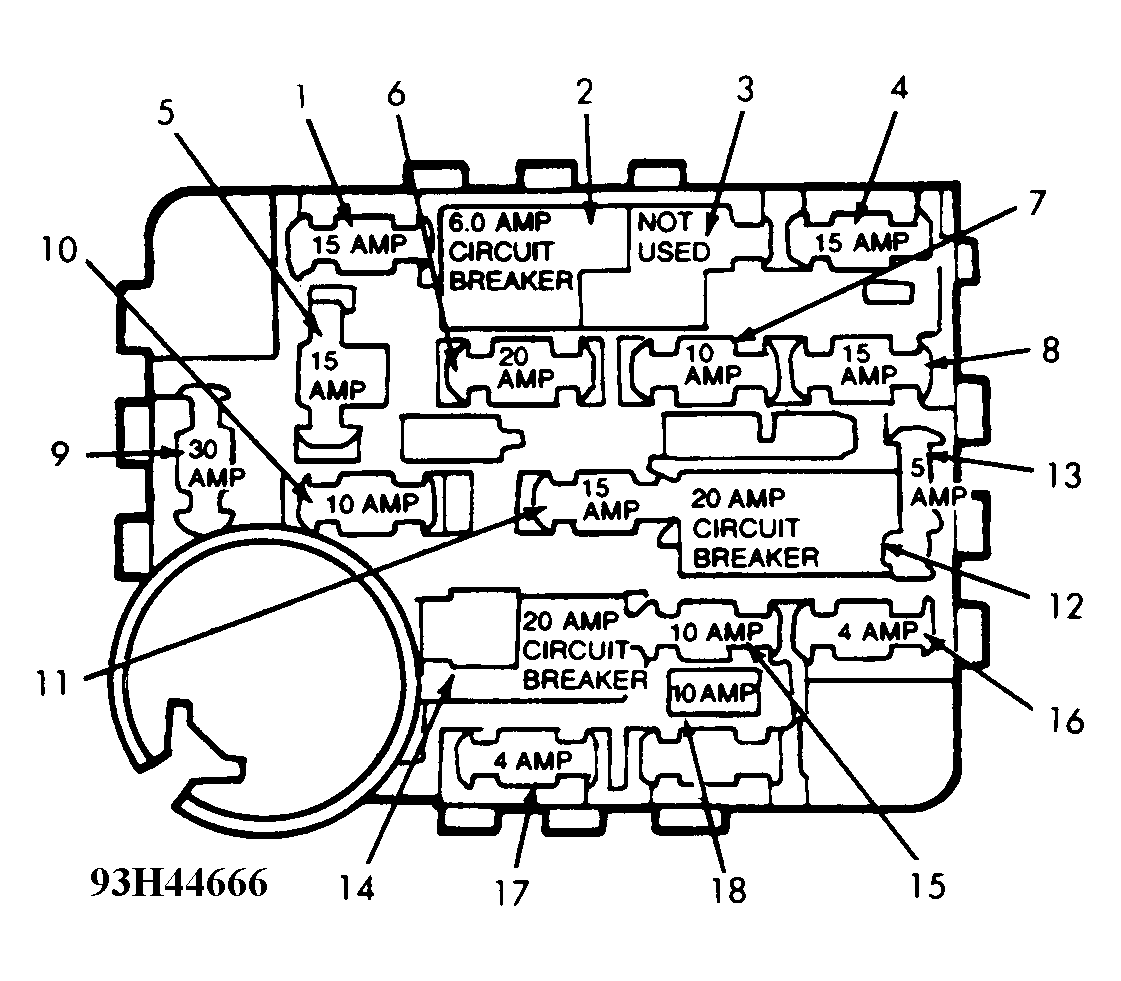

Fuse panel is located in the instrument panel, to left of steering column. Turn signal flasher is located on front of fuse panel. Hazard flasher is located on back of fuse panel behind turn signal flasher.
Courtesy of FORD MOTOR CO.
