Service Point Locations

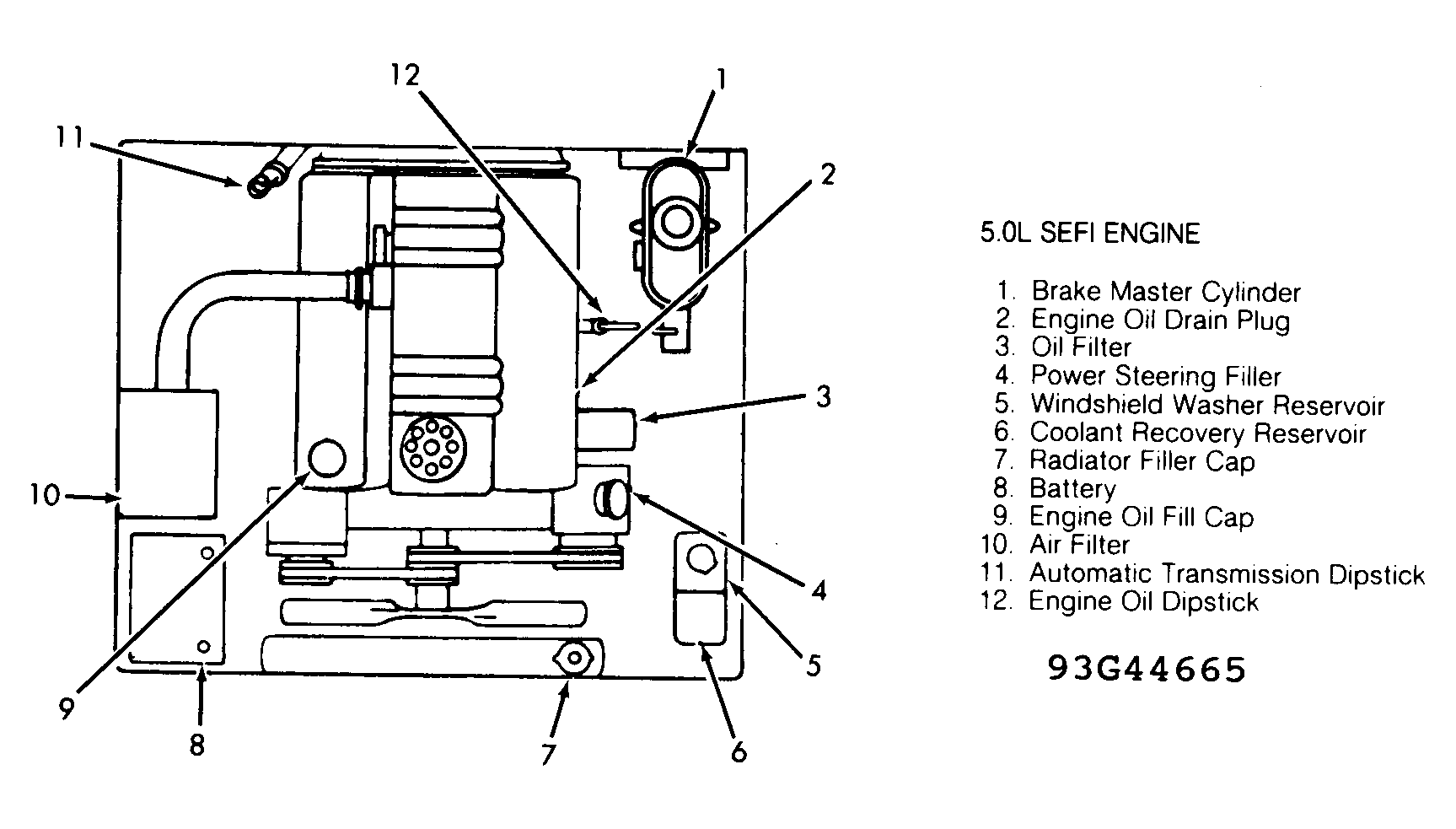

Fig 1: Service Point Locations (5.0L SEFI Engine)
Courtesy of FORD MOTOR CO.

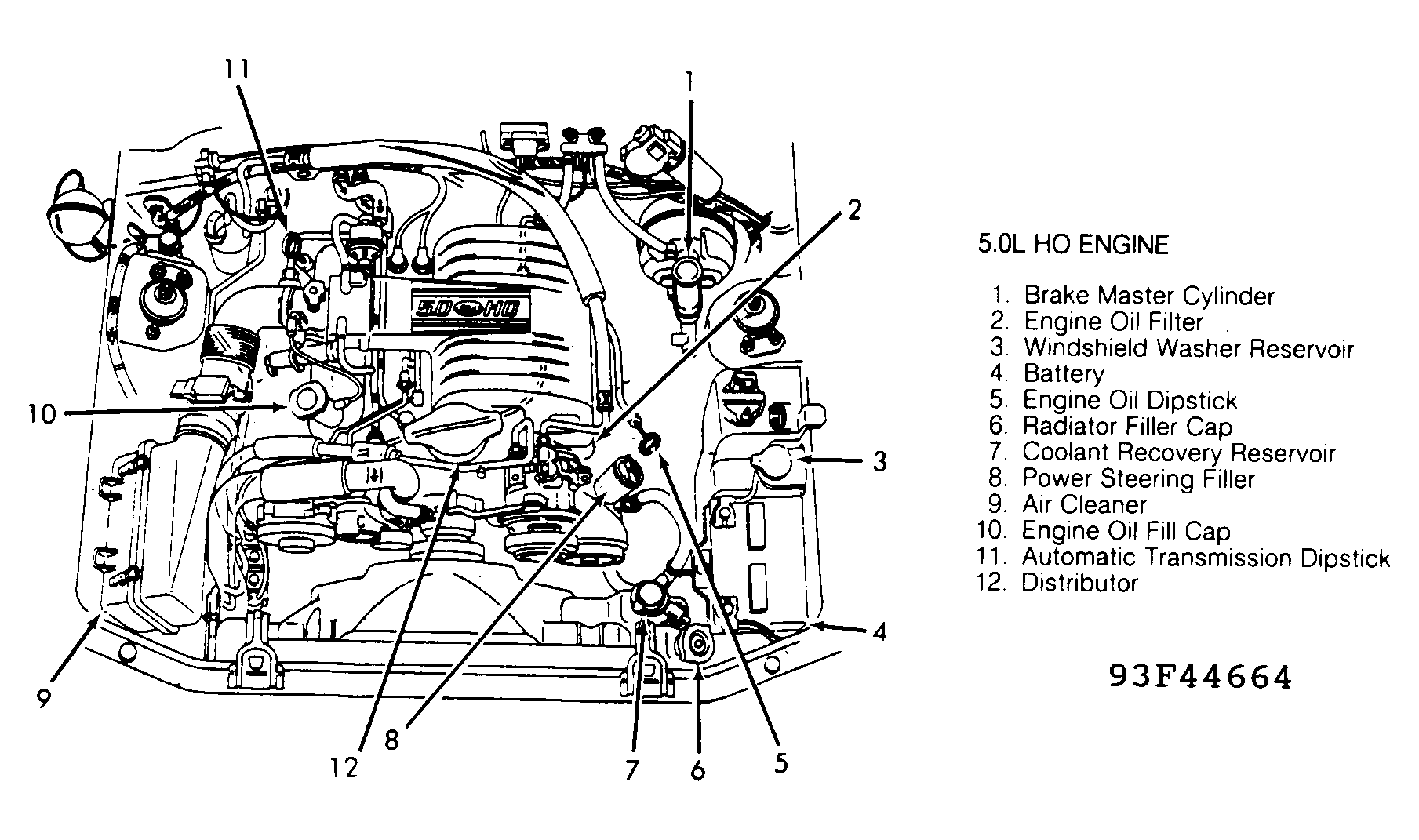

Fig 2: Service Point Locations (5.0L HO Engine)
Courtesy of FORD MOTOR CO.

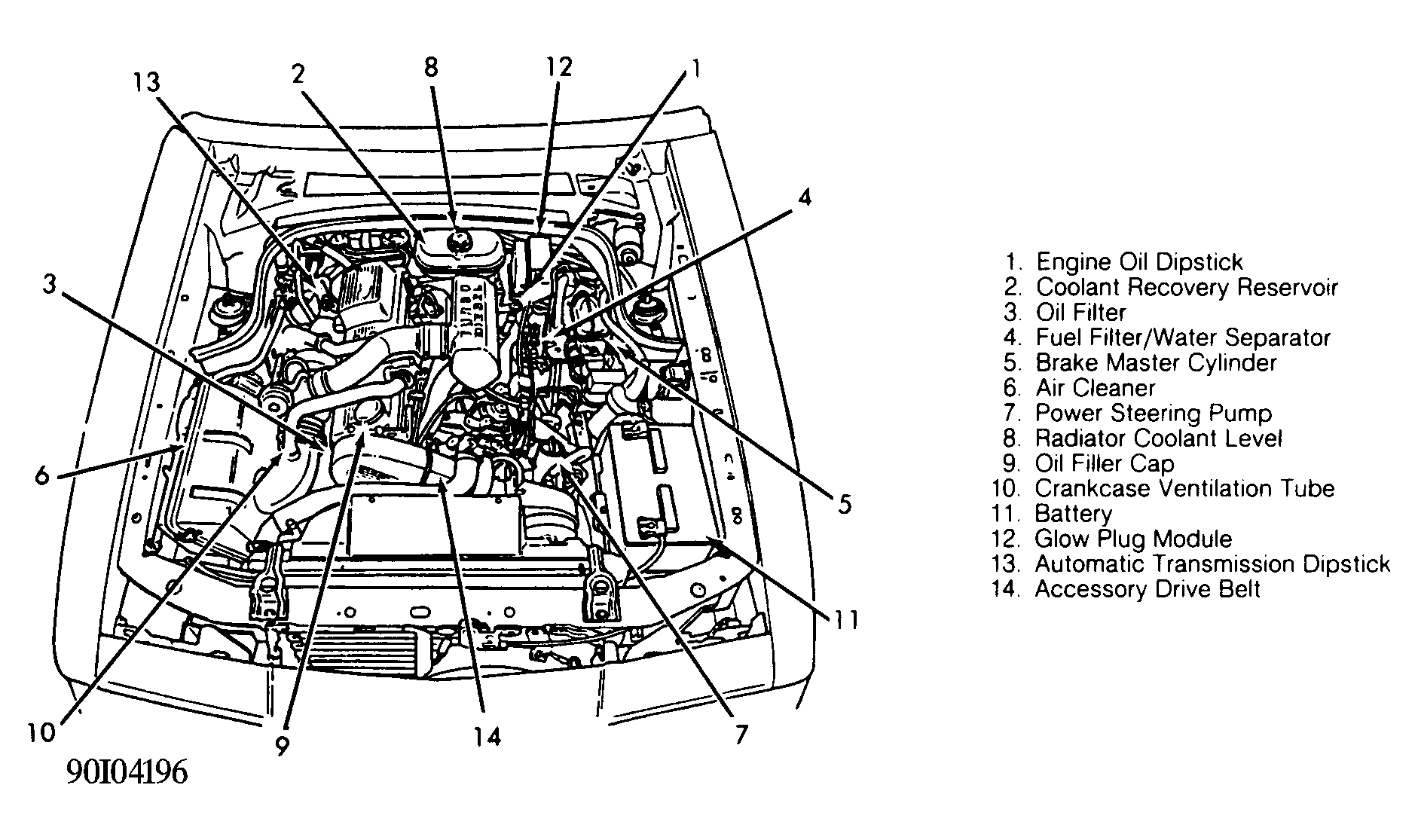

Fig 3: Service Point Locations (2.4L Diesel Engine)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
