Firing Order & Timing Marks

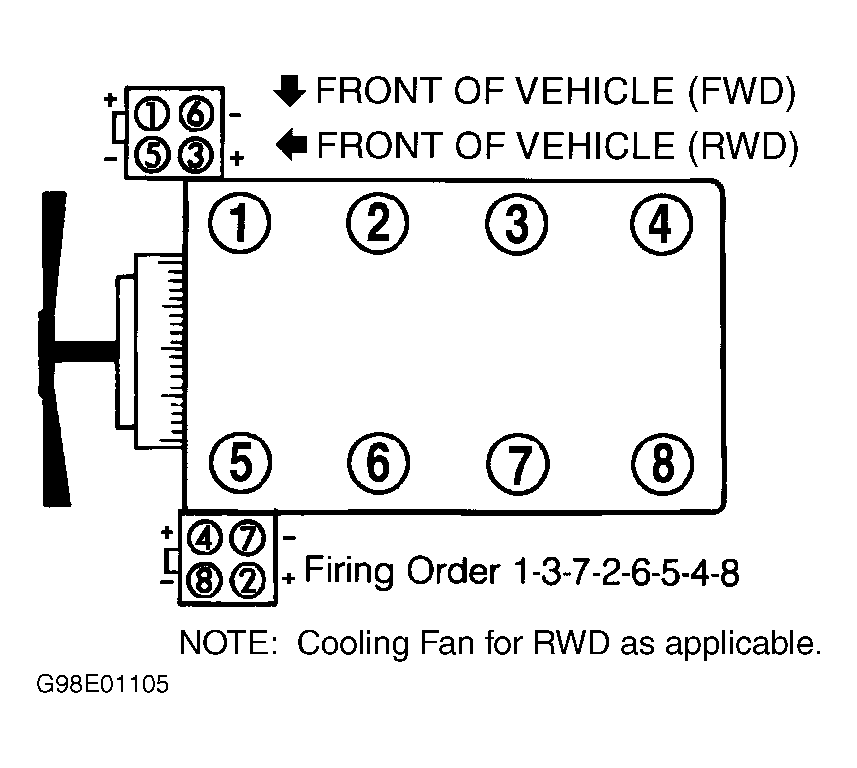

Fig 1: Firing Order & Timing Marks
G98E01105

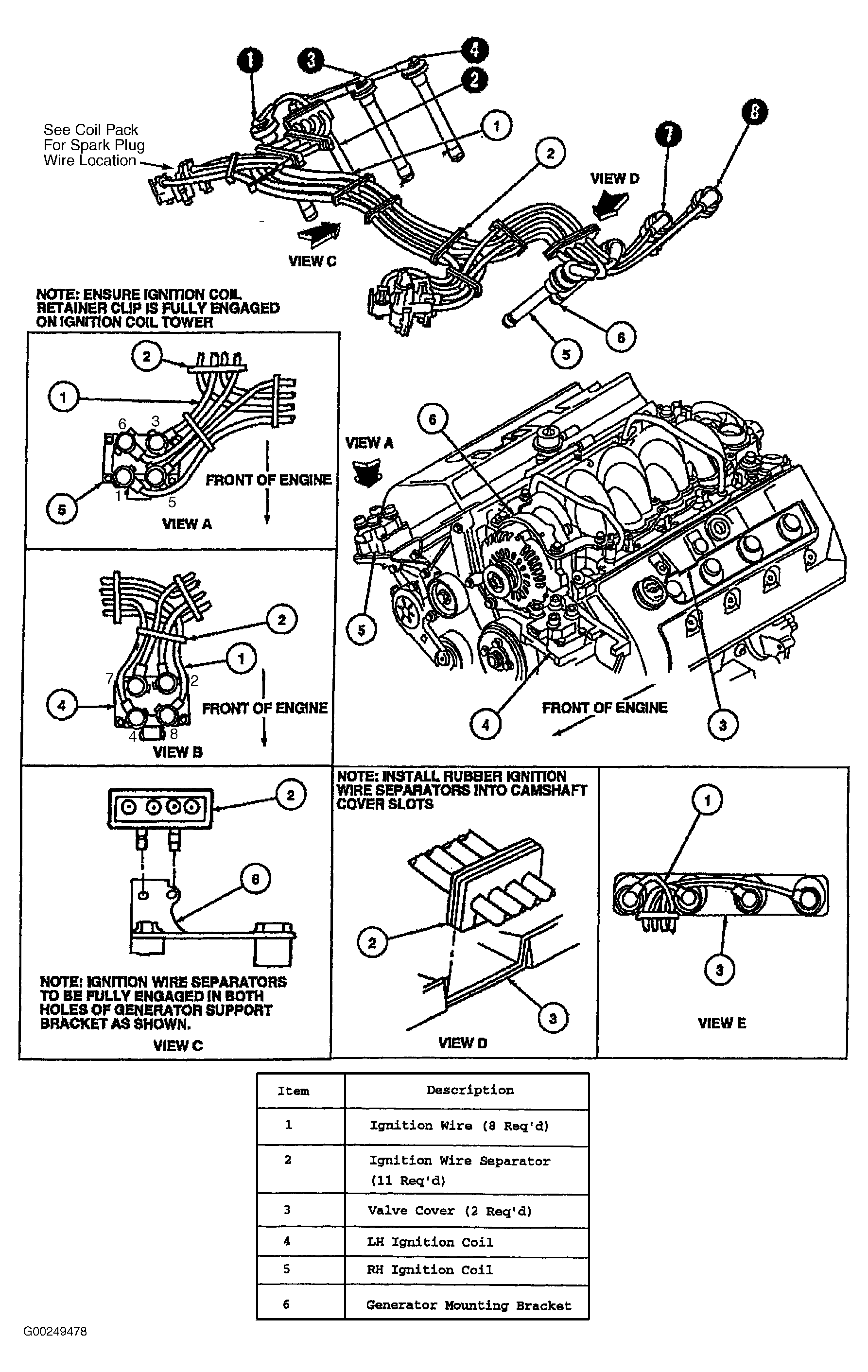

Fig 2: Identifying Spark Plug Wire Routing
G00249478Courtesy of FORD MOTOR CO.
BASE IGNITION TIMING

Application Degrees BTDC @ Idle
4.6L (1)(2) 8-12
(1) Disconnect single in-line SPOUT connector, or remove shorting bar from double-wire SPOUT connector.
(2) Timing is not adjustable.
