Firing Order & Timing Marks

NOTE: Use illustrations for firing order and timing marks. See Fig 1.

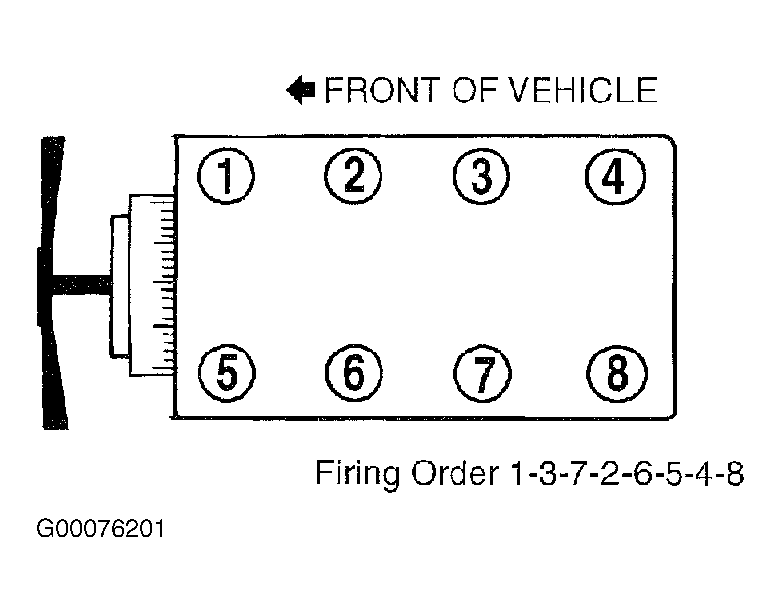

Fig 1: Identifying Firing Order & Timing Marks (Ignition Coil Over Plug)
G00076201Courtesy of FORD MOTOR CO.
