Mirror Control Switch

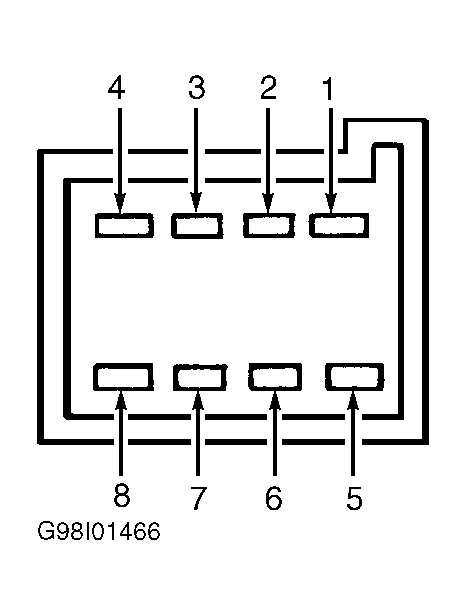

Using an ohmmeter, check for continuity between indicated switch terminals when switch is activated as specified. See POWER MIRROR SWITCH CONTINUITY TEST table. See Figure . Replace switch if it does not test as specified.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Pins No. | |
|---|---|---|
| Left Mirror | ||
| Up | 1 & 6; 3 & 5 | |
| Down | 1 & 3; 5 & 6 | |
| Left | 1 & 6; 4 & 5 | |
| Right | 1 & 4; 5 & 6 | |
| Right Mirror | ||
| Up | 1 & 6; 5 & 7 | |
| Down | 1 & 7; 5 & 6 | |
| Left | 1 & 6; 5 & 8 | |
| Right | 1 & 8; 5 & 6 | |
