Starter Motor - 2.5L: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

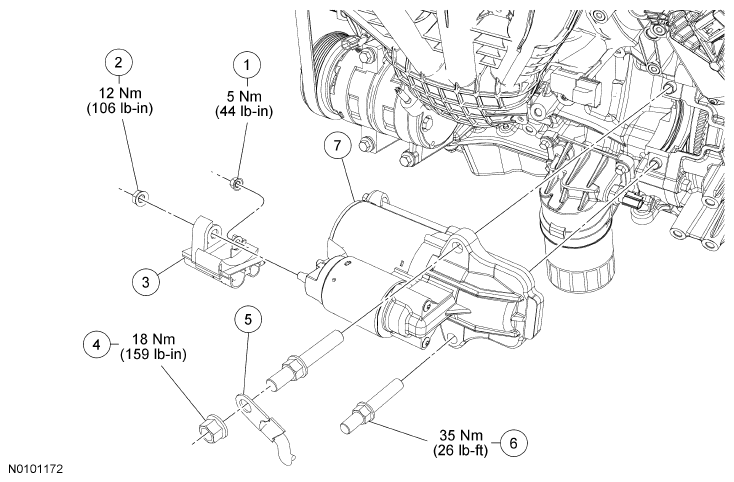

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W704141 | Starter motor solenoid wire nut |
| 2 | W766414 | Starter motor solenoid battery cable nut |
| 3 | 14A280 | Starter motor solenoid terminal cover |
| 4 | N802001 | Ground wire nut |
| 5 | 14452 | Ground wire (part of 14A280) |
| 6 | N801472 | Starter motor stud bolt (2 required) |
| 7 | 11000 | Starter motor |
