Driver's Control Switch

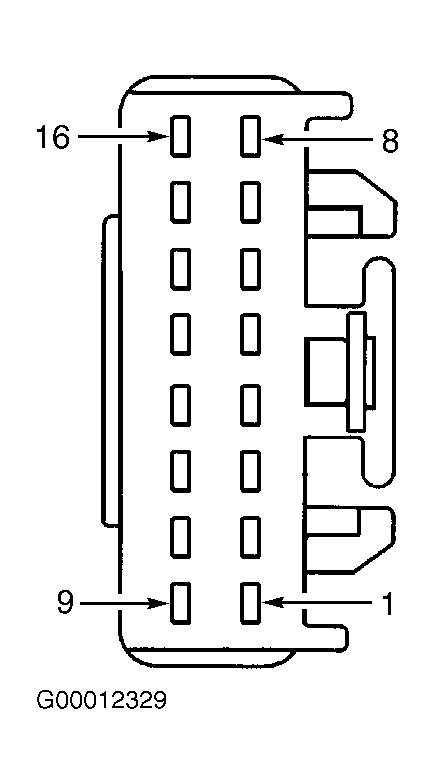

Remove driver's control switch from vehicle. See CONTROL SWITCHES under REMOVAL & INSTALLATION. Using ohmmeter, check for continuity between switch terminals in specified switch positions. See DRIVER'S CONTROL SWITCH TEST table. See Figure . Replace driver's control switch if continuity is not as specified.
DRIVER'S CONTROL SWITCH TEST
| Switch Position | Continuity Between Terminals | ||
|---|---|---|---|
| Driver Up | 7 & 9 | ||
| Driver Down | 6 & 9 | ||
| Left Rear Up | 9 & 13 | ||
| Left Rear Down | 9 & 15 | ||
| Lock-Out On | 5 & 9 | ||
| Neutral | (1) | ||
| One-Touch Down | 4 & 9 | ||
| Passenger's Up | 2 & 9 | ||
| Passenger's Down | 3 & 9 | ||
| Right Rear Up | 9 & 12 | ||
| Right Rear Down | 9 & 10 | ||
|
|||
