Single Switches

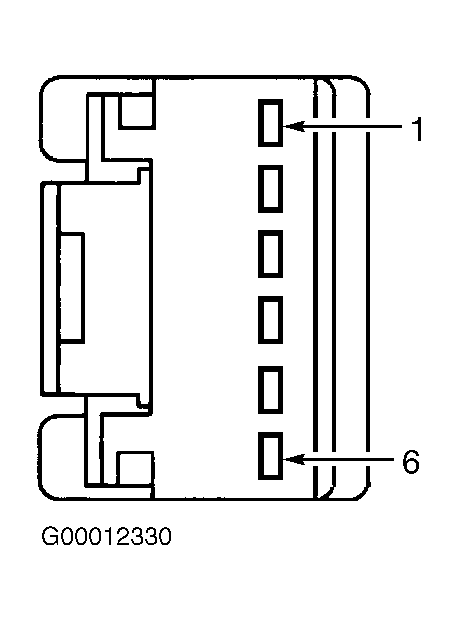

Remove appropriate control switch(es) from vehicle. See CONTROL SWITCHES under REMOVAL & INSTALLATION. Using ohmmeter, check for continuity between switch(es) terminals in specified switch positions. See SINGLE SWITCH TESTING table. See Figure . Replace control switch(es) if continuity is not as specified.

SINGLE SWITCH TESTING

Switch Position

Continuity Between Terminals

Neutral

⁽¹⁾

1 & 3

Down

2 & 3

⁽¹⁾	Continuity should not exist between any terminals.
