Power Window Single Switch

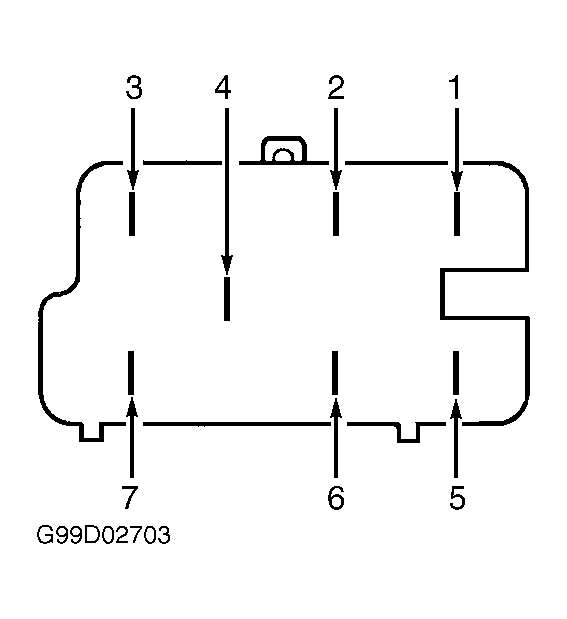

Remove suspect window switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Check continuity between appropriate terminals with switch in appropriate position. See SINGLE SWITCH TESTING table. See Fig 1 . Continuity should exist at all times between terminals No. 1 and 5 (switch illumination circuit). If continuity is not as specified, replace switch.
SINGLE SWITCH TESTING
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Right Front & Left Rear | ||
| Rest | 2 & 6; 7 & 3 | |
| Down | 4 & 6 | |
| Up | 4 & 3 | |
| Right Rear | ||
| Rest | 2 & 3; 7 & 6 | |
| Down | 4 & 3 | |
| Up | 4 & 6 | |
