Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

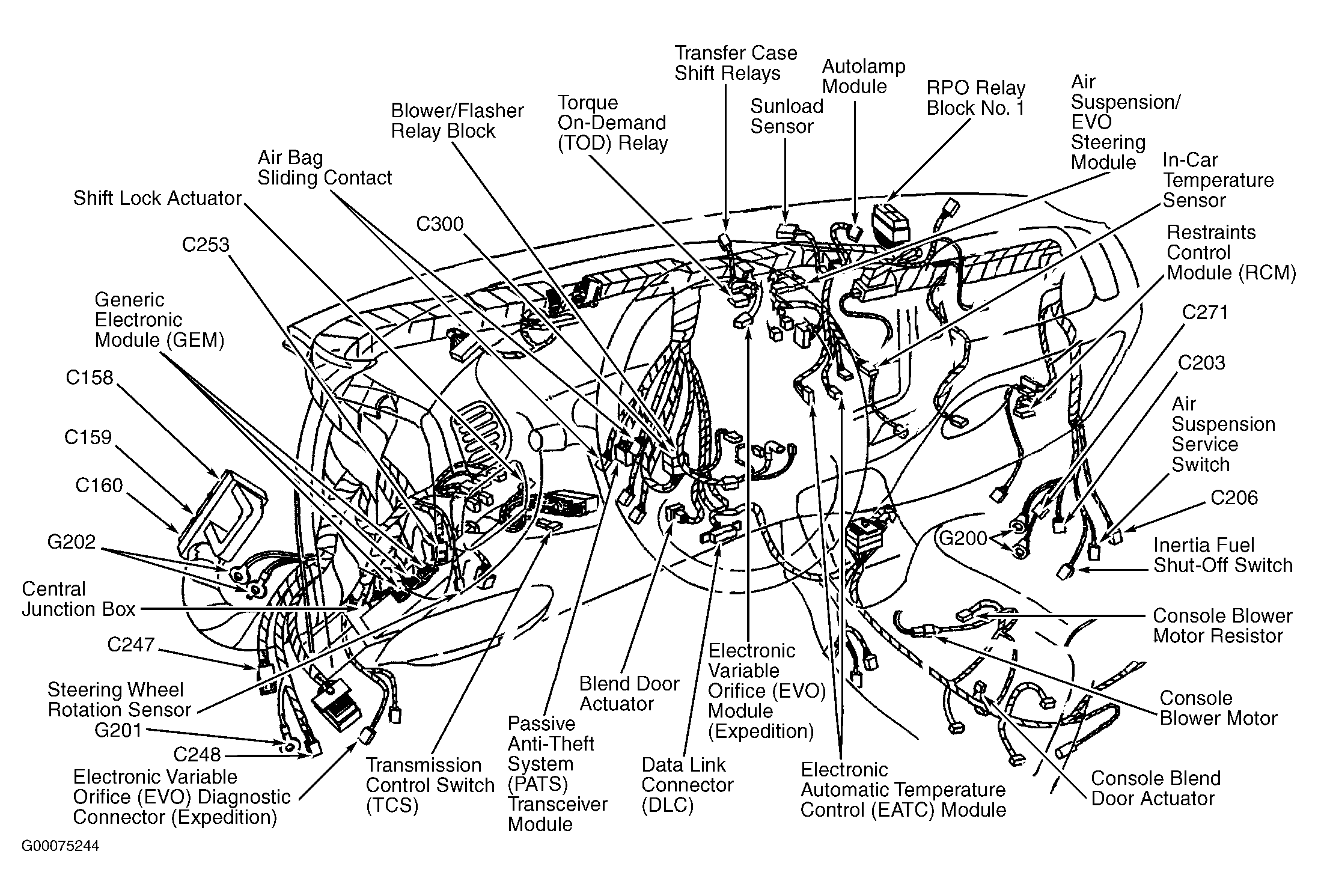

| Air Suspension/EVO Steering Module | Behind center of dash. See Figure . |
| Autolamp Module | Behind center of dash. See Figure . |

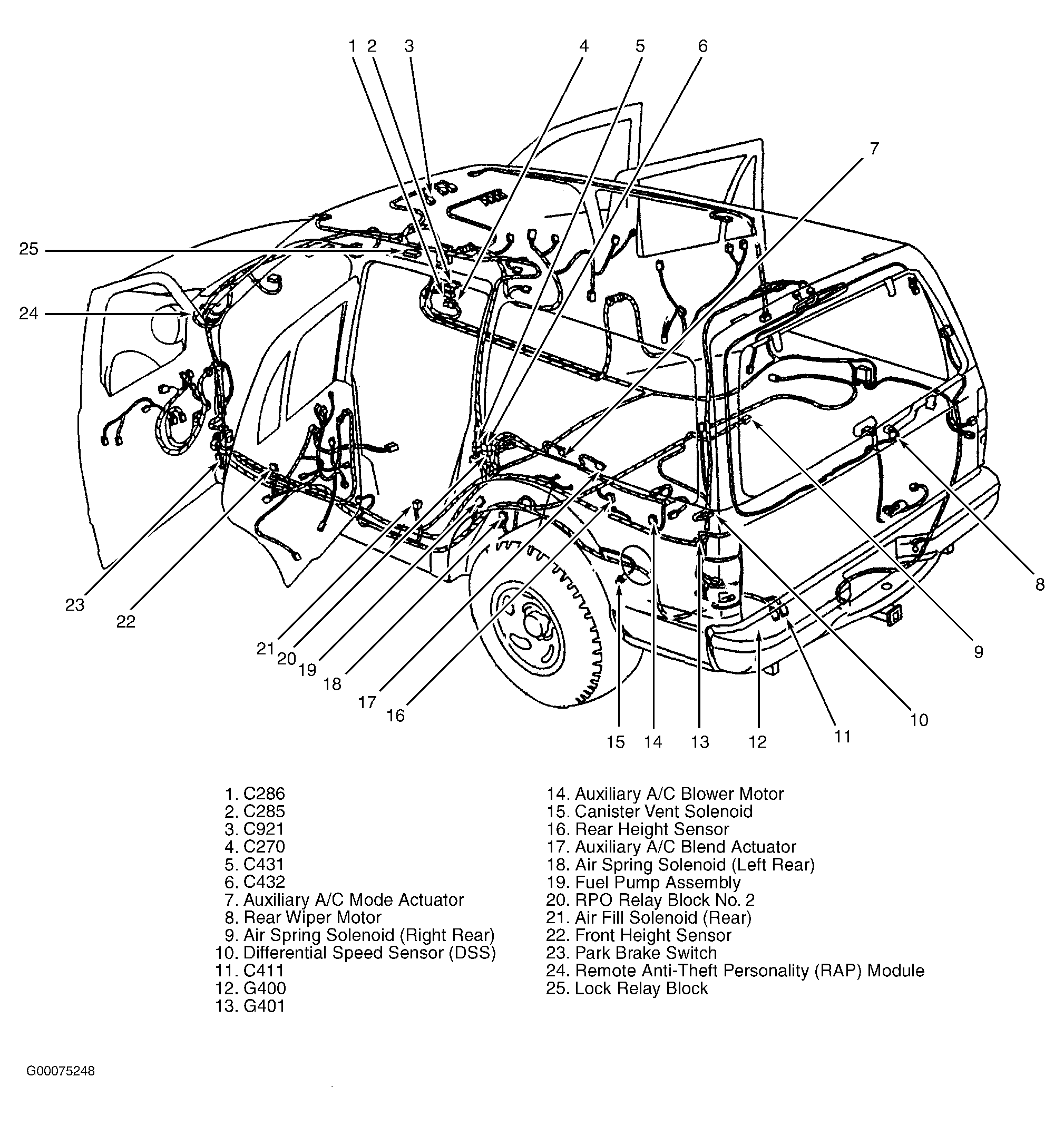

| Auxiliary A/C Control Module | In rear of vehicle, behind left side panel. |
| Driver Seat Module | Under driver seat. |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure . |
| Electronic Variable Orifice (EVO) Module (Expedition) | Behind center of dash. See Figure . |
| Generic Electronic Module (GEM) | Behind left side of dash. See Figure . |
| Overhead Trip Computer (OTC) Module | In front of overhead console. |
| Parking Aid Module (PAM) | Right rear of vehicle. |
| Passive Anti-Theft System (PATS) Transceiver Module | Behind center of dash. See Figure . |

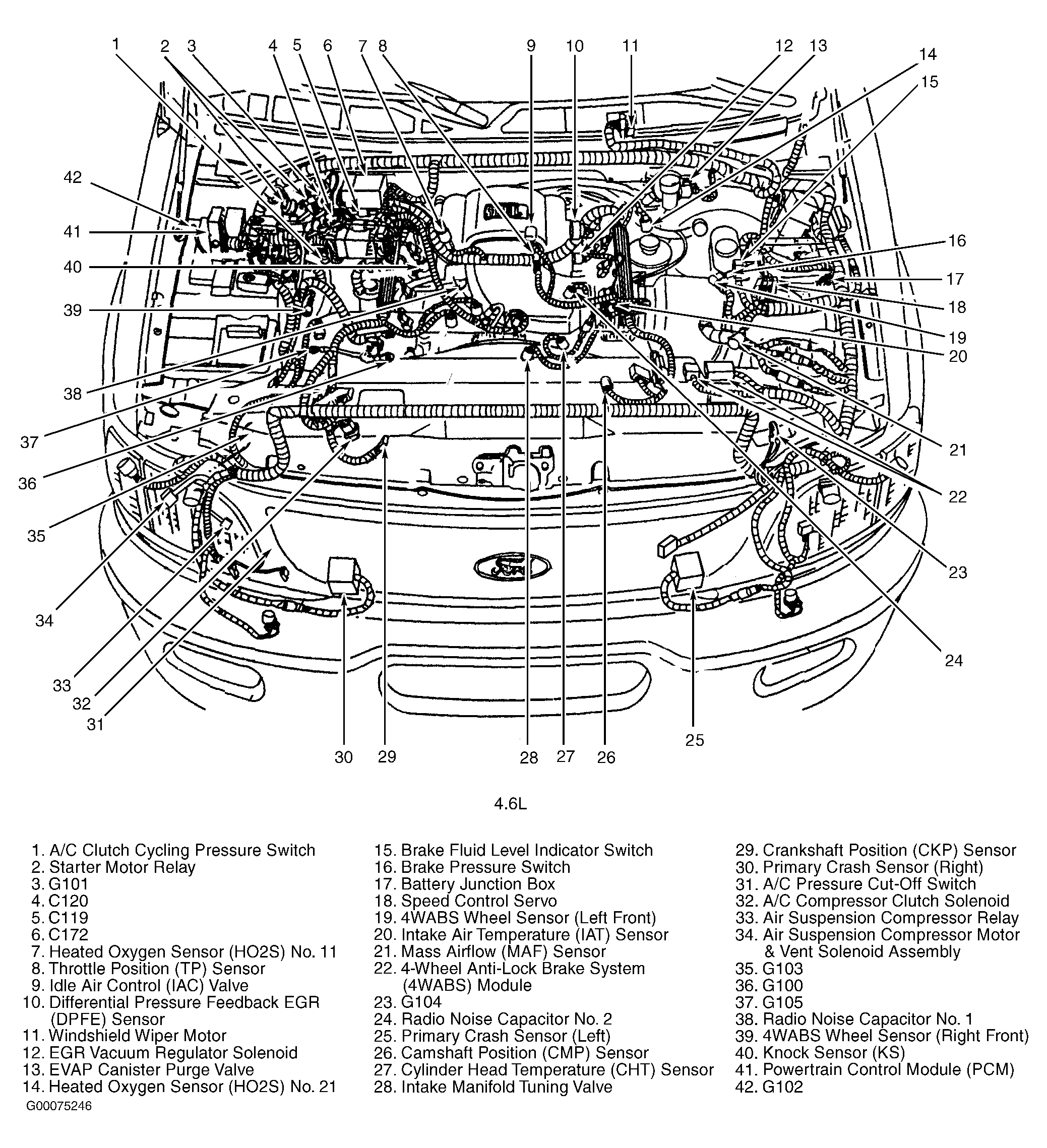

| Powertrain Control Module (PCM) (4.6L) | On right side of engine compartment. See Figure . |

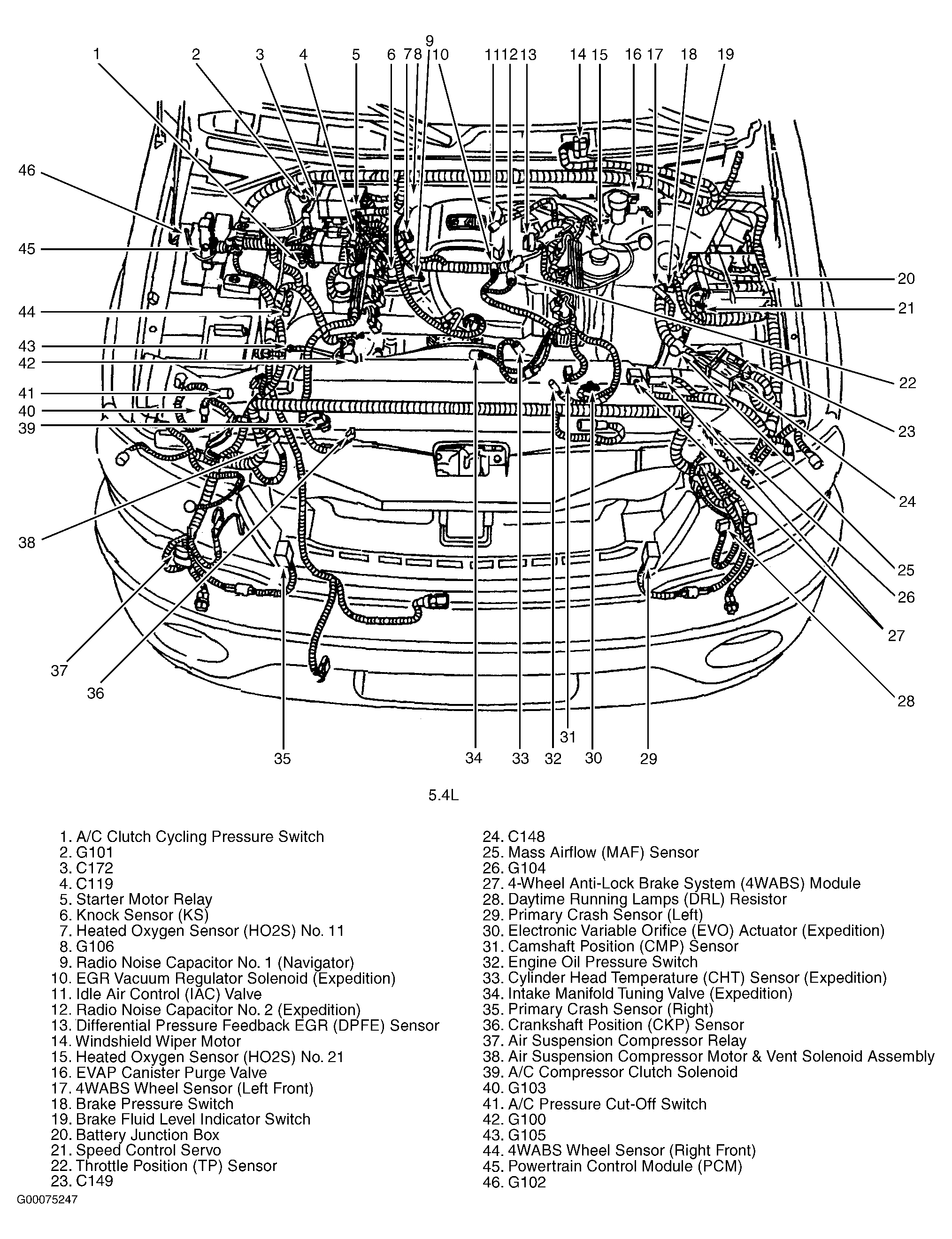

| Powertrain Control Module (PCM) (5.4L) | On right side of engine compartment. See Figure . |
| Remote Anti-Theft Personality (RAP) Module | Behind left side of dash. See Figure . |
| Restraints Control Module (RCM) | Behind right side of dash. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (4.6L) | On left side of engine compartment. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (5.4L) | On left side of engine compartment. See Figure . |
