Main Components and Functions: Notes

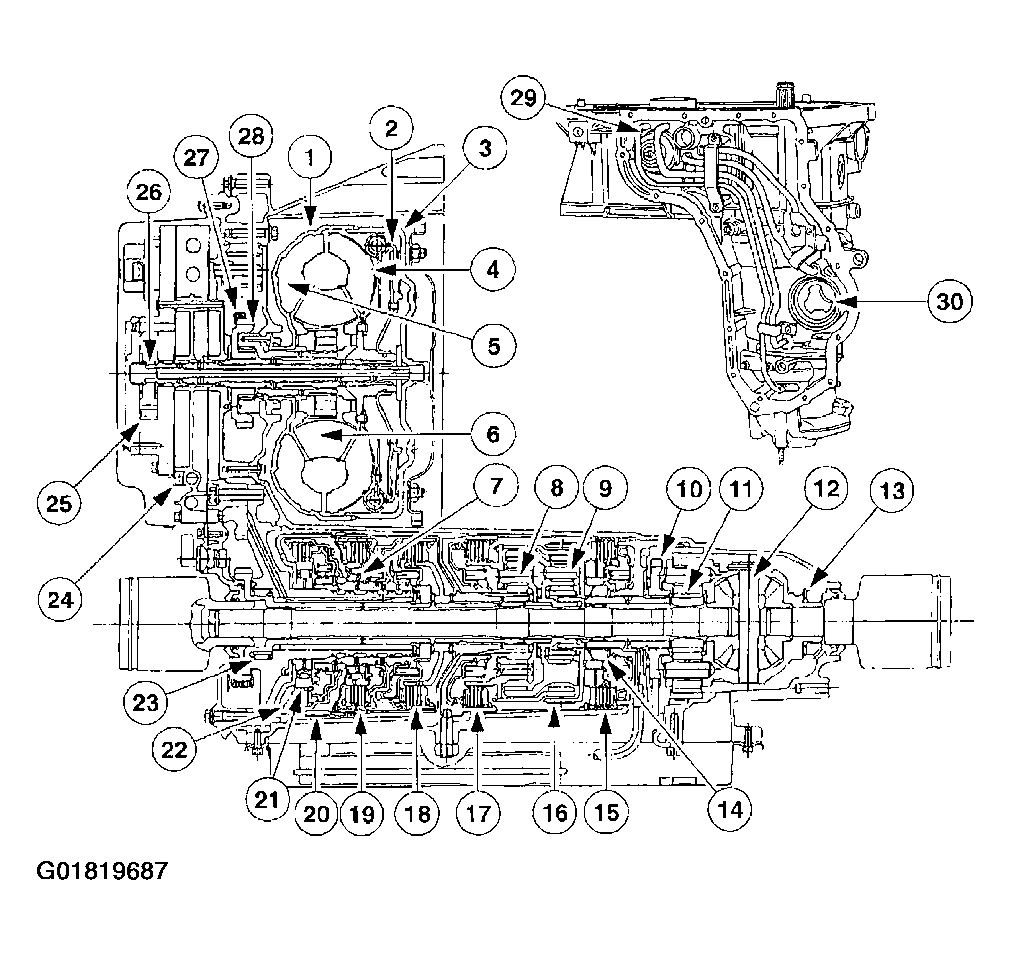

Fig 1: Main Components & Functions
Courtesy of FORD MOTOR CO.

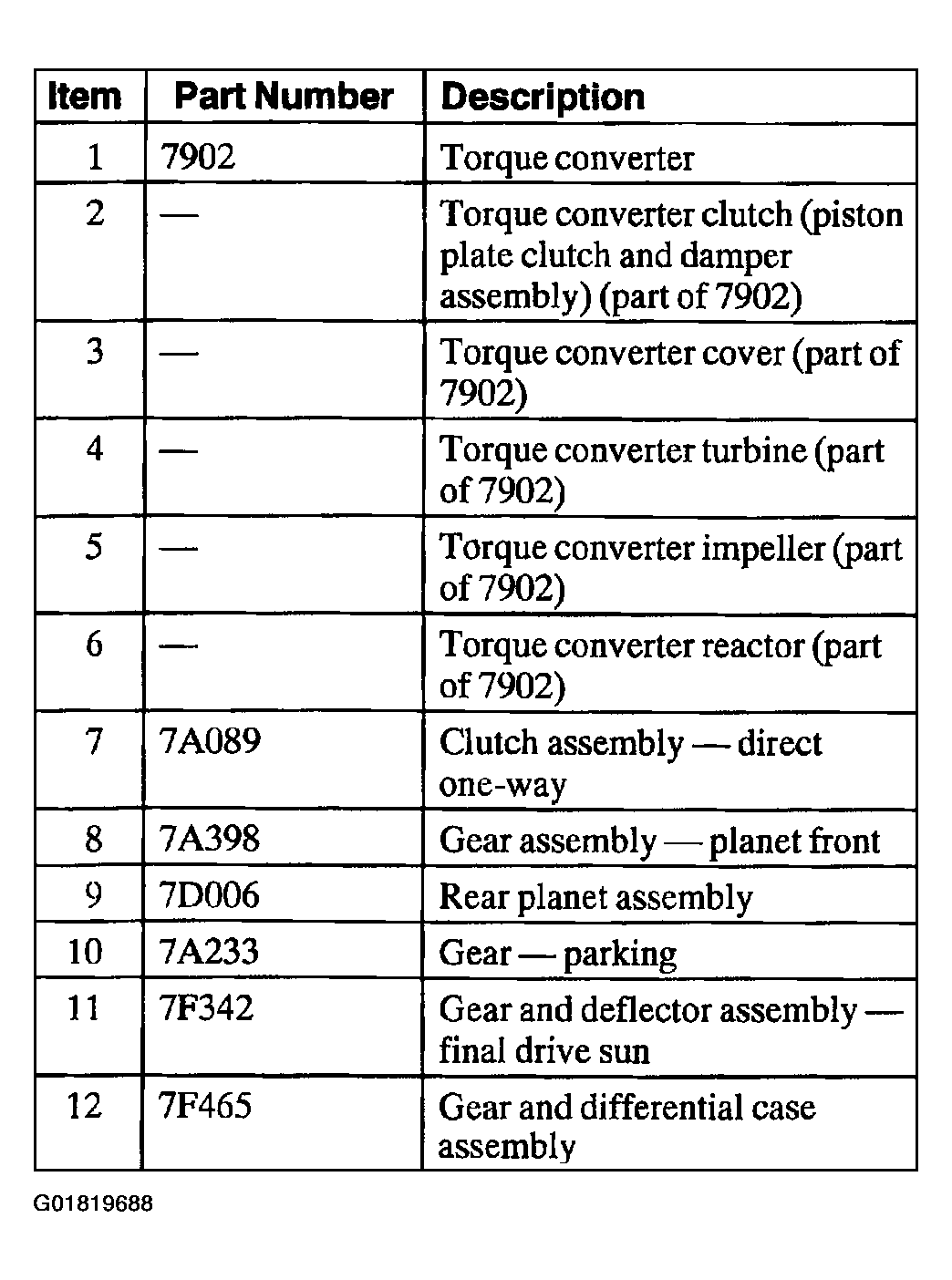

Fig 2: Main Components & Functions Legend (Items 1-12)
Courtesy of FORD MOTOR CO.

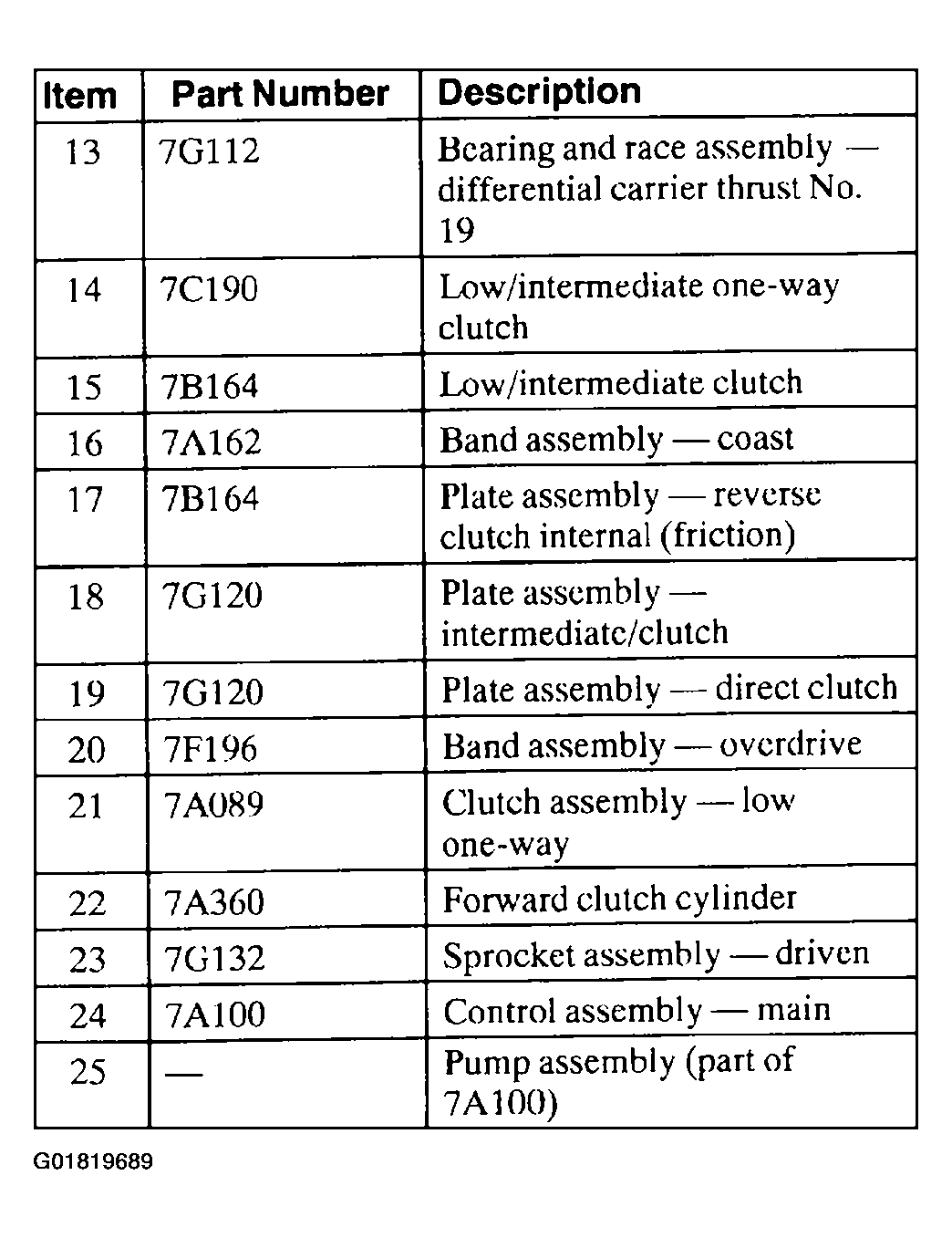

Fig 3: Main Components & Functions Legend (Items 13-25)
Courtesy of FORD MOTOR CO.

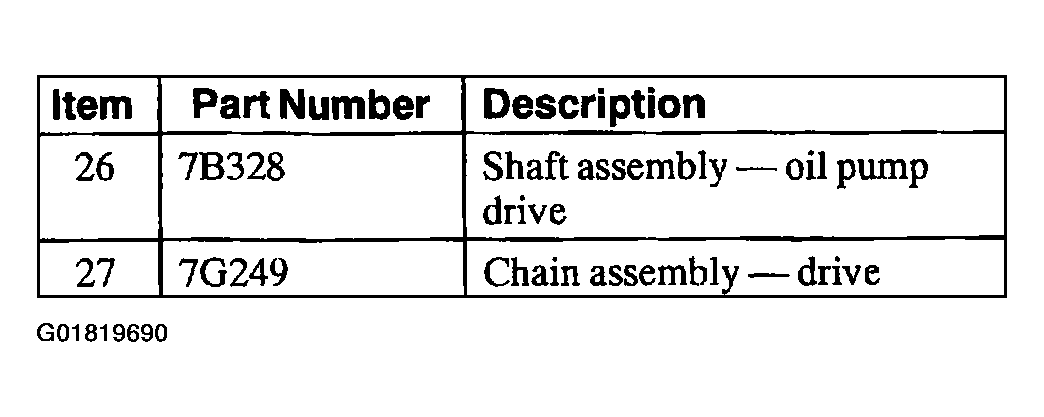

Fig 4: Main Components & Functions Legend (Items 26-27)
Courtesy of FORD MOTOR CO.

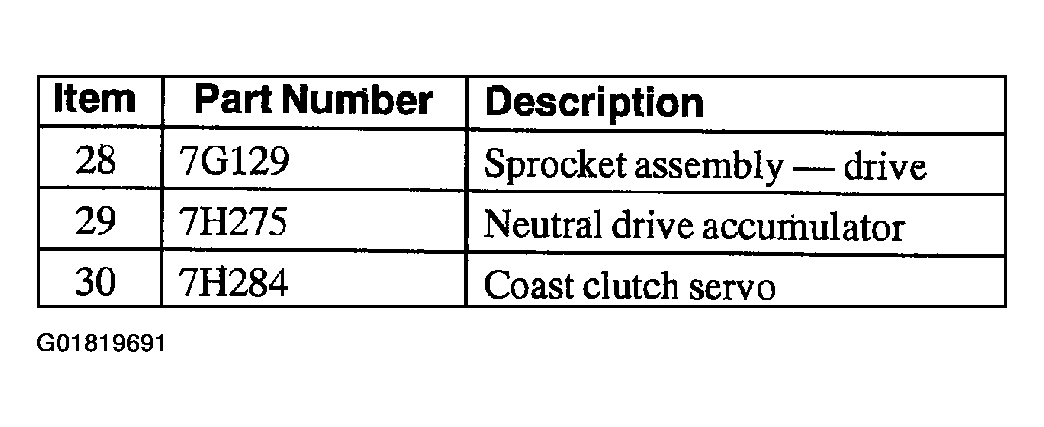

Fig 5: Main Components & Functions Legend (Items 28-30)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
