Chain Cover: Disassembly

    NOTE: If replacement of the chain cover is necessary the main control wire harness will need to be transferred.

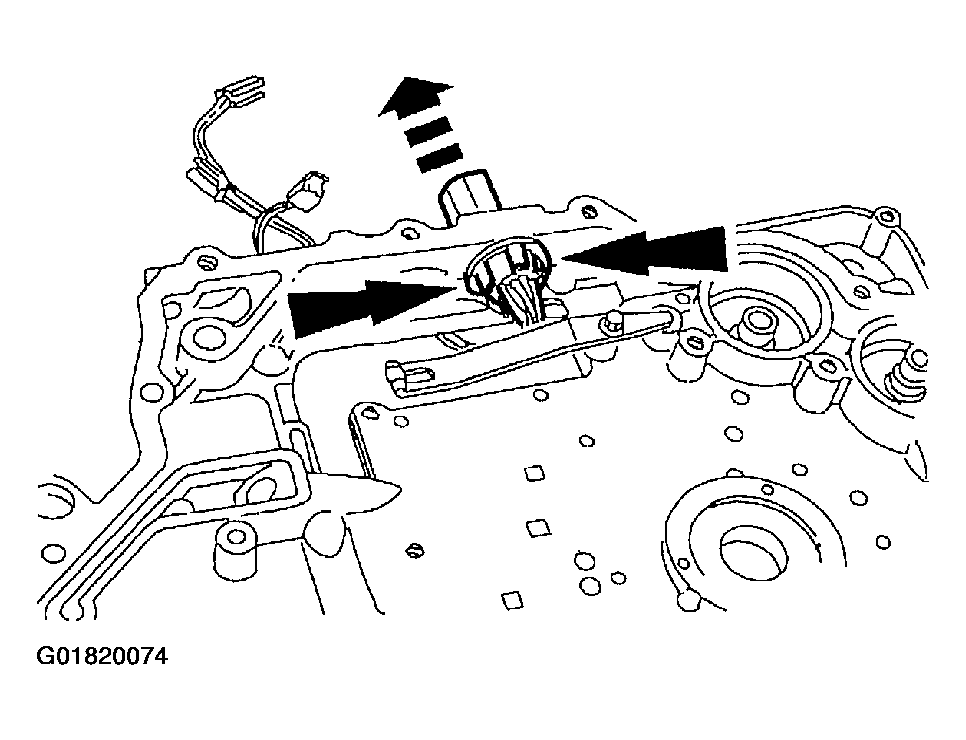

    Fig 1: Removing Main Control Wiring Harness
    G01820074Courtesy of FORD MOTOR CO.
  1. Press tabs and remove the harness.
  2. Remove the thrust washers.
    1. Remove the No. 1 drive sprocket thrust washer.
    2. Remove the No. 3 chain cover thrust washer.

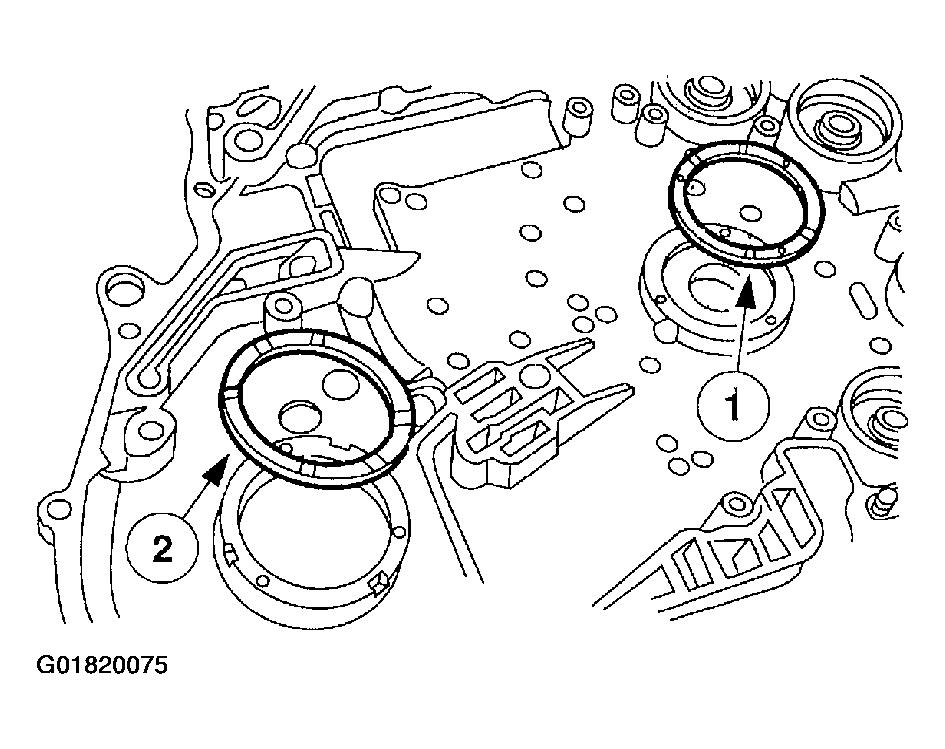

    Fig 2: Removing Thrust Washers
    G01820075Courtesy of FORD MOTOR CO.
  3. Remove the bolt and the manual valve detent spring.

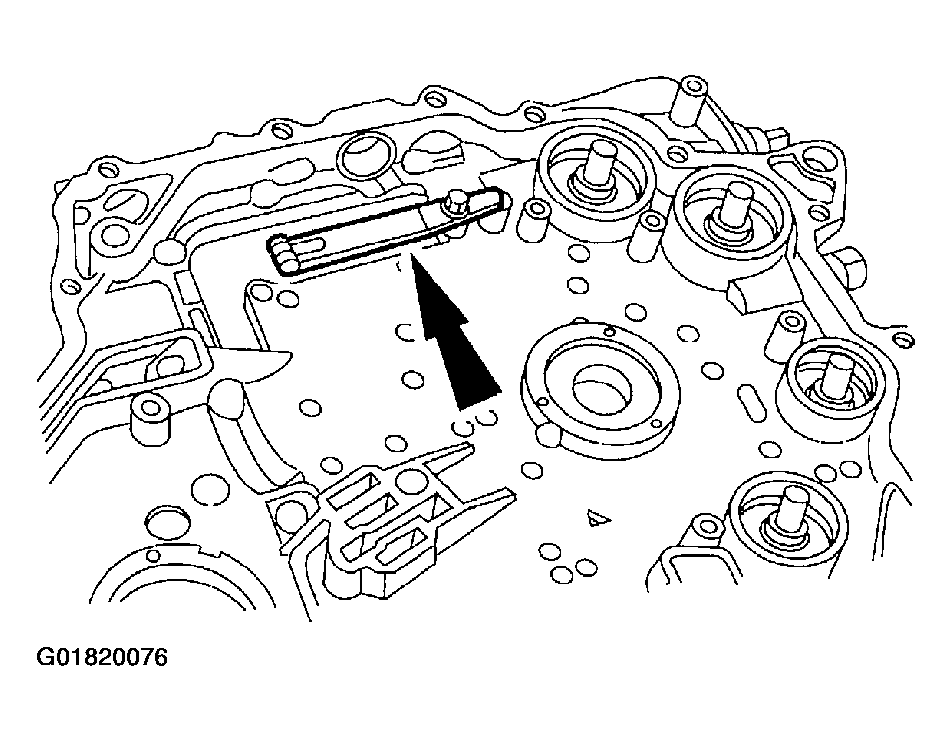

    Fig 3: Locating Manual Valve Detent Spring
    G01820076Courtesy of FORD MOTOR CO.
  4. Remove the accumulator piston shafts.

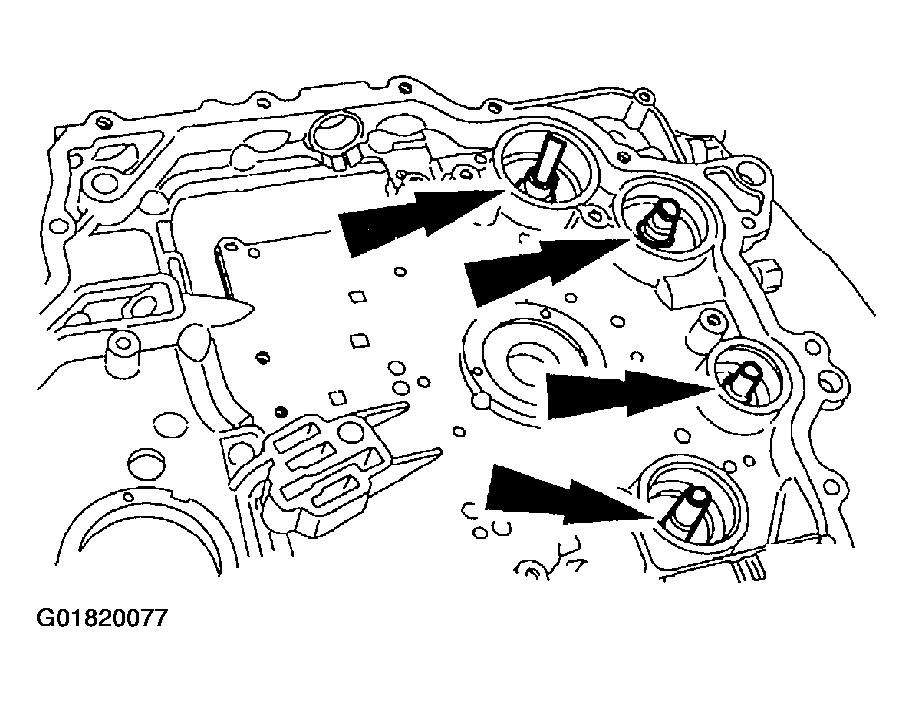

    Fig 4: Locating Accumulator Piston Shafts
    G01820077Courtesy of FORD MOTOR CO.
    5. CAUTION: Do not use any objects in the piston shaft bore for removal. Damage to the bore will result.
    NOTE: Tag and mark the location of the accumulator pistons.

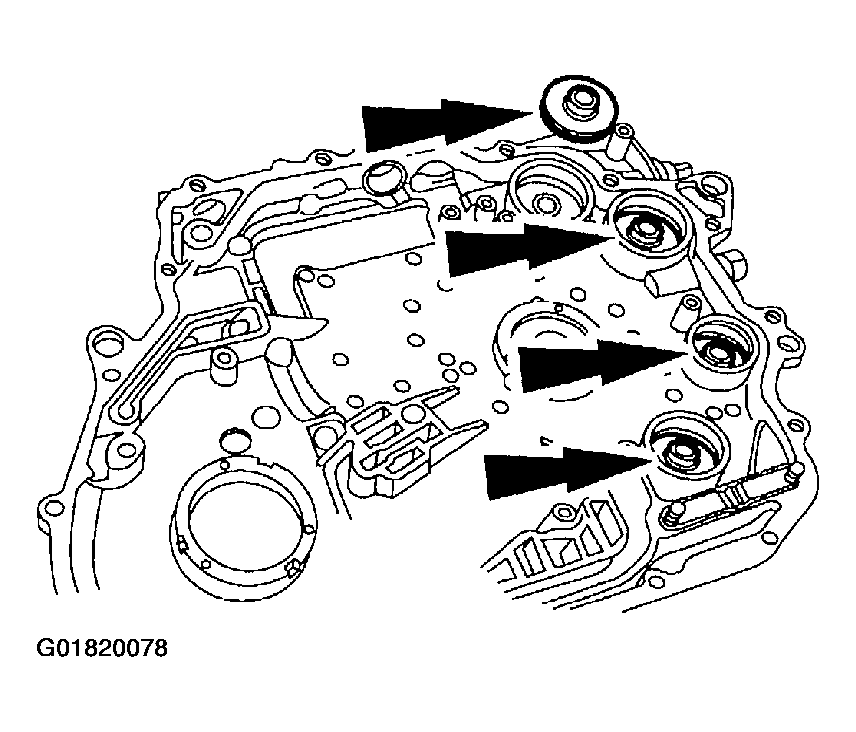

    Fig 5: Locating Accumulator Pistons
    G01820078Courtesy of FORD MOTOR CO.
  5. Remove the accumulator pistons.
    6. CAUTION: Use care not to damage the machined surface of the chain cover.
    NOTE: The use of side cutters supported by a small piece of wood will aid in the removal of the bi-metal retaining collars.
  6. Remove the bi-metal element and the thermostat plate.

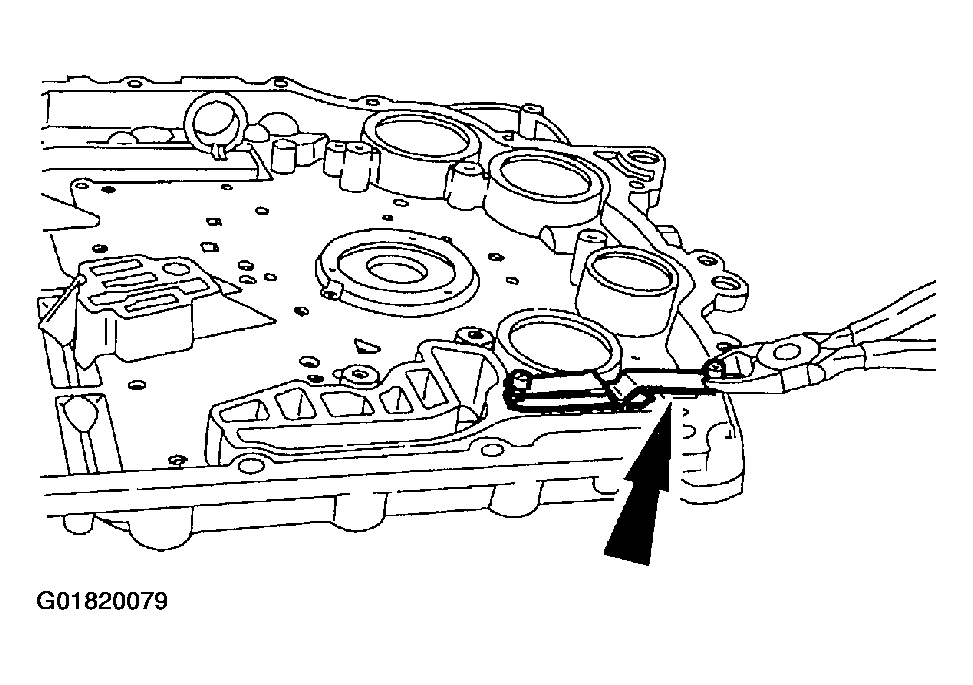

Fig 6: Removing Bimetal Element
G01820079Courtesy of FORD MOTOR CO.
