Driven Sprocket Support: Disassembly

  1. Remove the Teflon® seal rings and the No. 5 thrust washer.

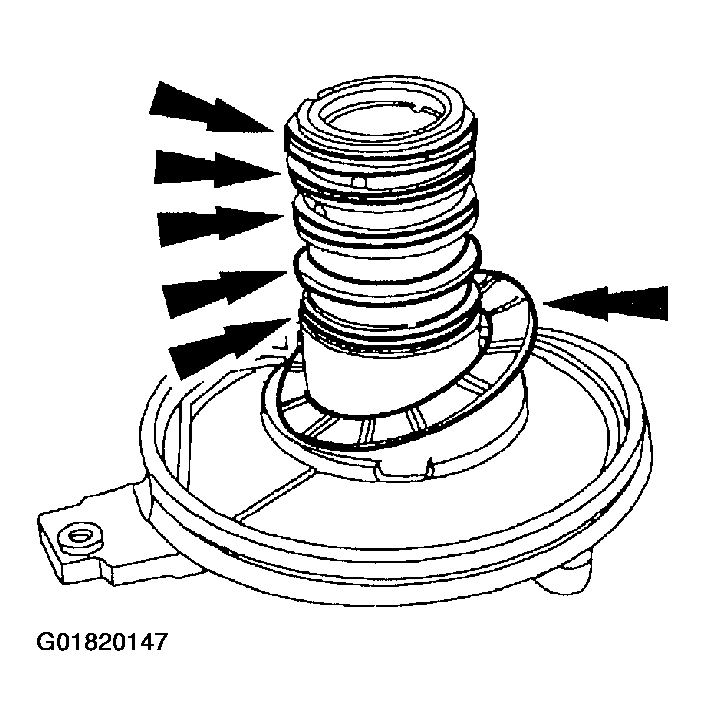

    Fig 1: Removing Teflon® Seal Rings & Thrust Washer
    G01820147Courtesy of FORD MOTOR CO.
    2. NOTE: If the driven sprocket bearing is damaged it should be replaced.
  2. Using the special tools, remove the driven sprocket bearing.

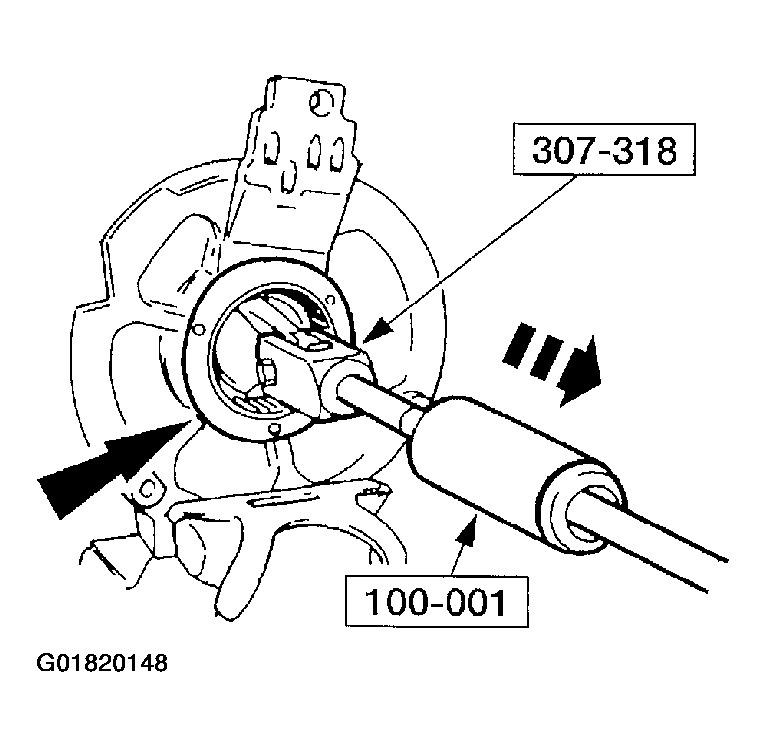

Fig 2: Removing Driven Sprocket Bearing
G01820148Courtesy of FORD MOTOR CO.
