Driven Sprocket: Check

  1. Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, a new driven sprocket will need to be installed.

    Inspect the sensor wheel for bent or damaged tabs.

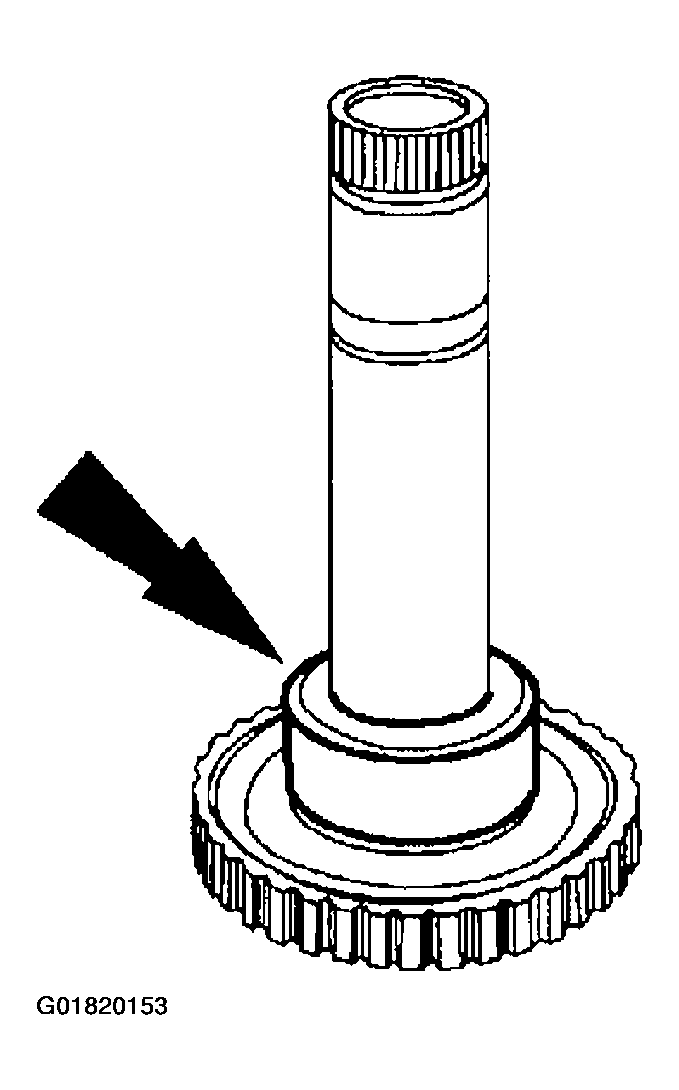

    Fig 1: Locating Bearing Race
    G01820153Courtesy of FORD MOTOR CO.
    2. NOTE: The speed sensor wheel only needs to be replaced if damaged.
  2. Remove the speed sensor wheel.

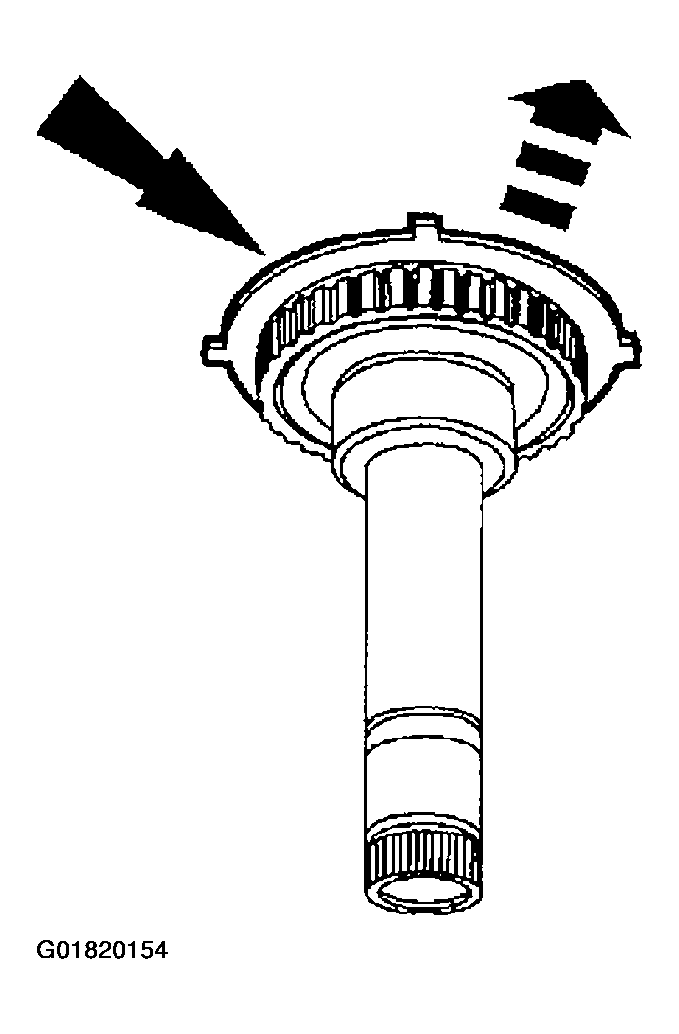

    3. Fig 2: Removing Speed Sensor Wheel
    G01820154Courtesy of FORD MOTOR CO.
  3. Using the special tools, install new speed sensor ring.

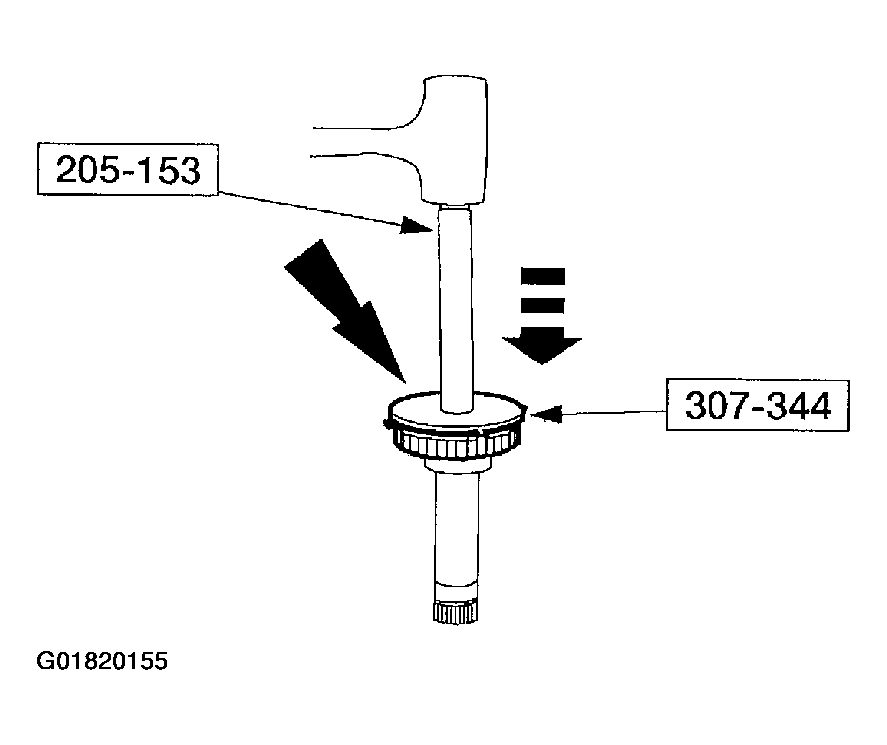

Fig 3: Installing Speed Sensor Wheel
G01820155Courtesy of FORD MOTOR CO.
