Intermediate Clutch Cylinder: Assembly

Clean and inspect the intermediate clutch cylinder. Install the intermediate clutch piston inner seal.

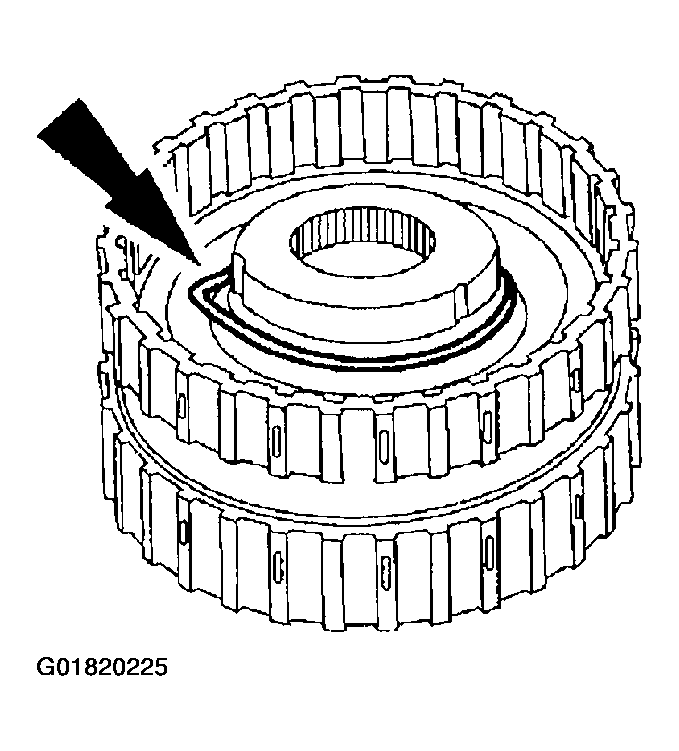

Fig 1: Installing Intermediate Clutch Piston Inner Seal

Courtesy of FORD MOTOR CO.

NOTE: Lightly coat all the seals and surfaces with petroleum jelly.

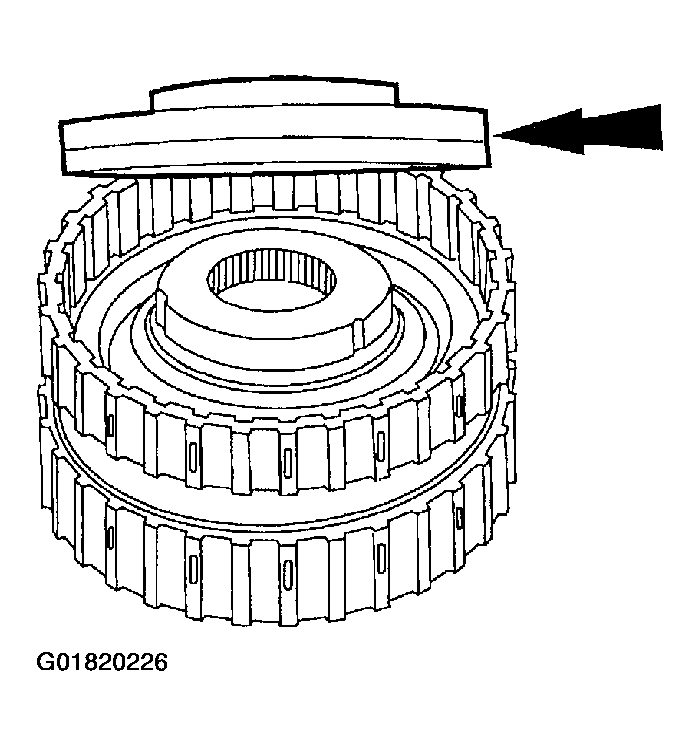

Fig 2: Installing Intermediate Clutch Piston

Courtesy of FORD MOTOR CO.

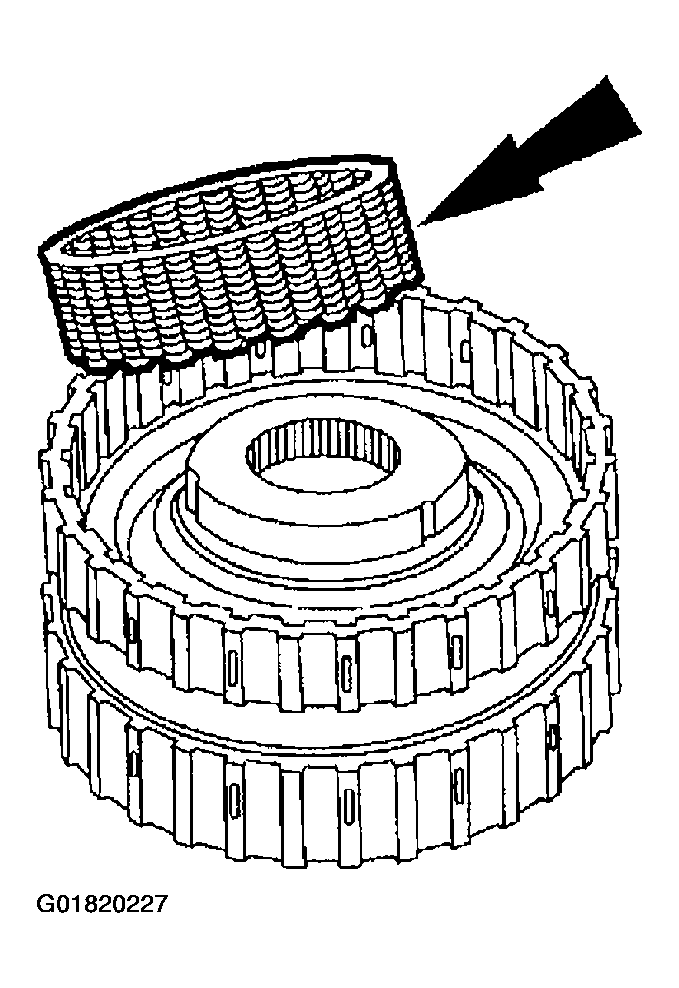

Fig 3: Installing Intermediate Clutch Support & Spring

Courtesy of FORD MOTOR CO.

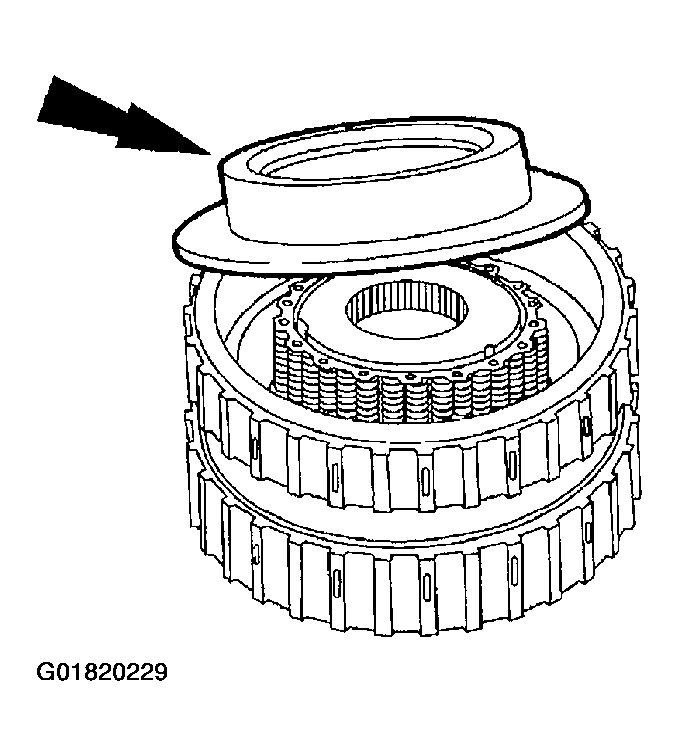

Fig 4: Installing Piston Seal Protector

Courtesy of FORD MOTOR CO.

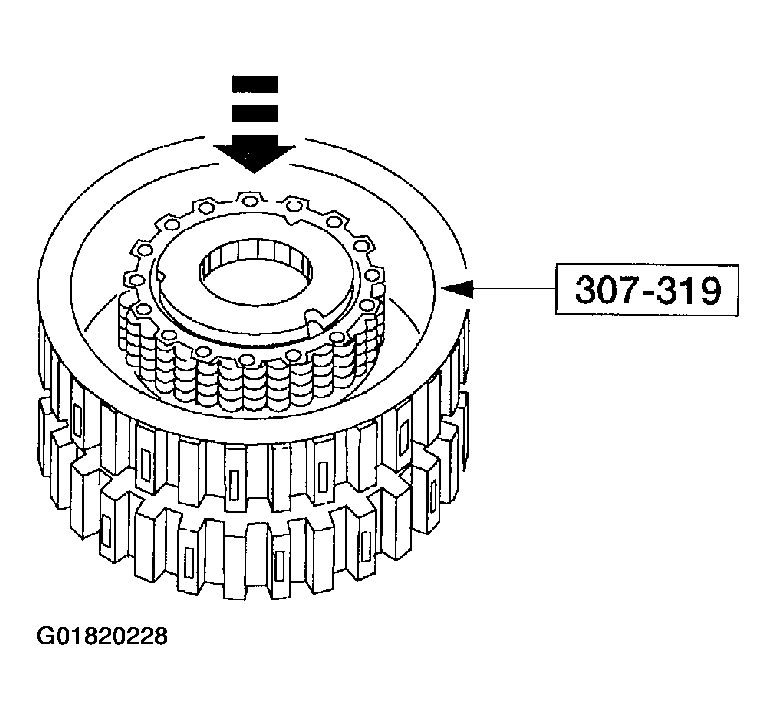

Fig 5: Installing Intermediate Clutch Balance Piston & Seal Assembly

Courtesy of FORD MOTOR CO.

CAUTION: Do not fully compress the intermediate clutch spring retainer.

Compress the intermediate clutch return spring using the special tool. Install the snap ring using snap ring pliers.

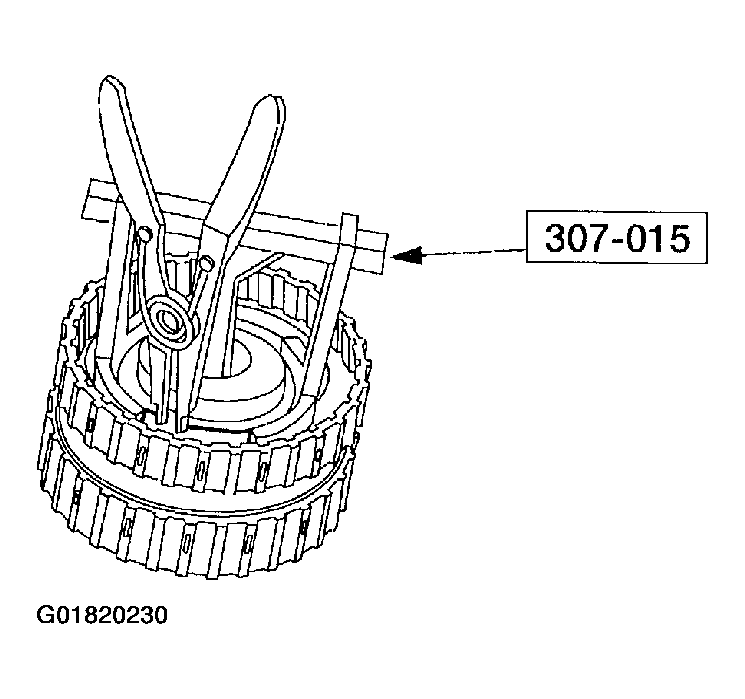

Fig 6: Installing Snap Ring

Courtesy of FORD MOTOR CO.

Install the intermediate clutch pack.
1. Install the wave spring.
2. Install the clutch pack.
3. Install the pressure plate.
4. Install the snap ring.

Fig 7: Installing Intermediate Clutch Pack

Courtesy of FORD MOTOR CO.

Using the special tools, measure the clearance between the retaining ring and the clutch cylinder lip.

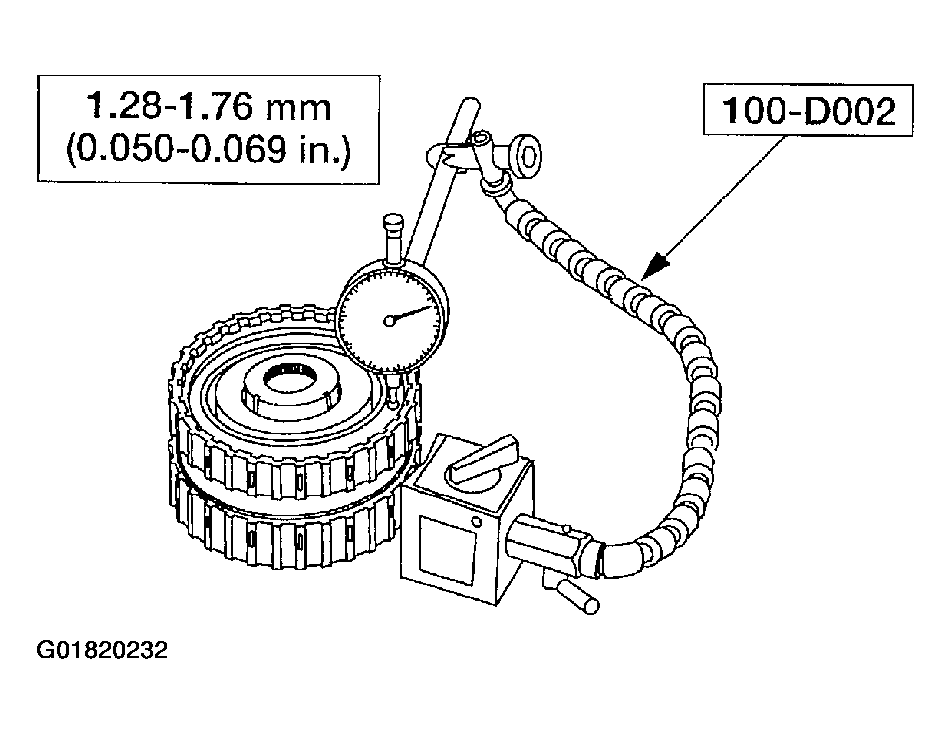

Fig 8: Measuring Intermediate Clutch Pack Clearance

Courtesy of FORD MOTOR CO.

If the clearance is not within specification selective retaining rings are available. Check the clearance after installing the correct selective retaining ring.

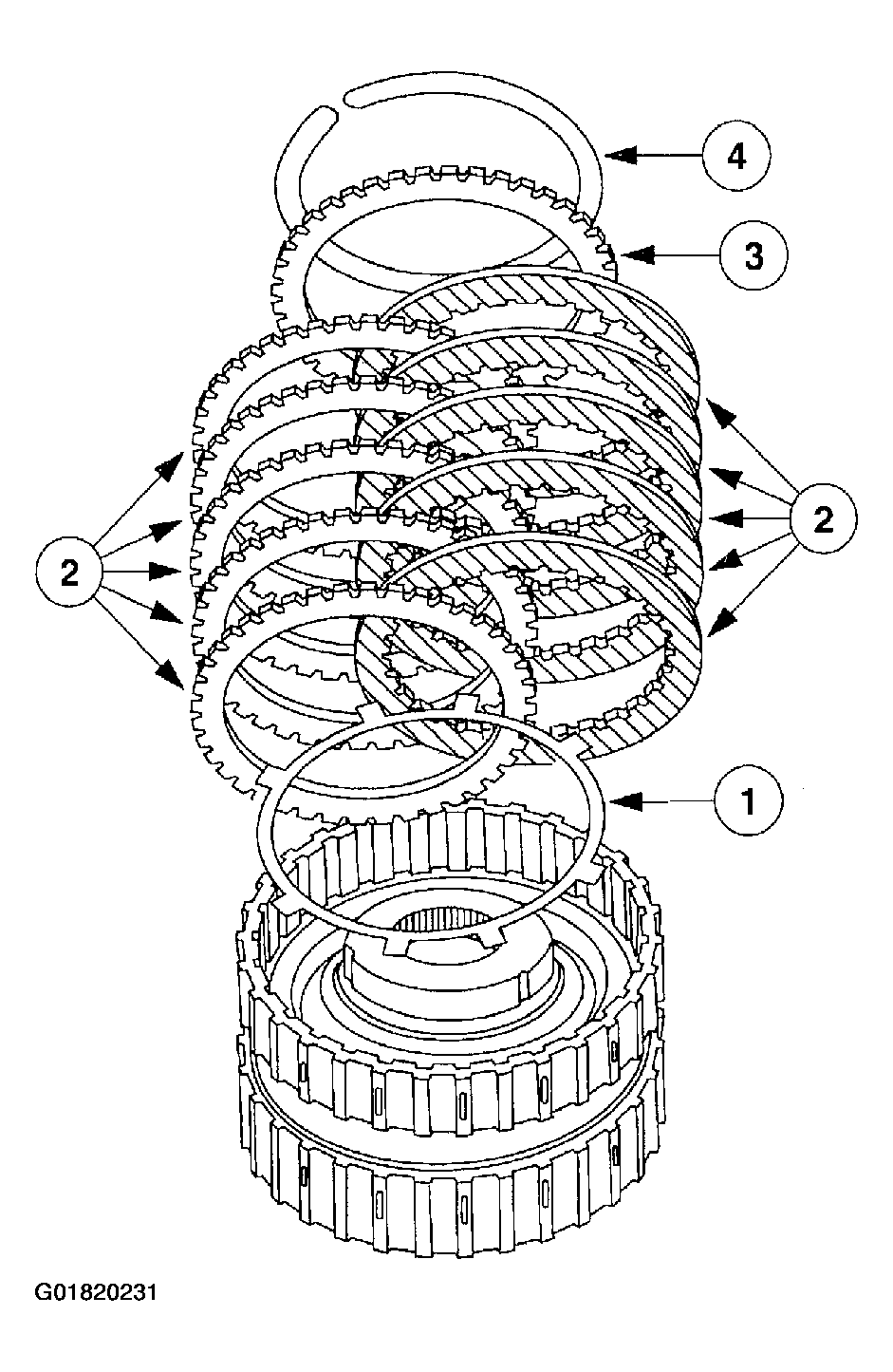

Fig 9: Selective Retaining Ring

Courtesy of FORD MOTOR CO.
