Intermediate Clutch Cylinder: Notes

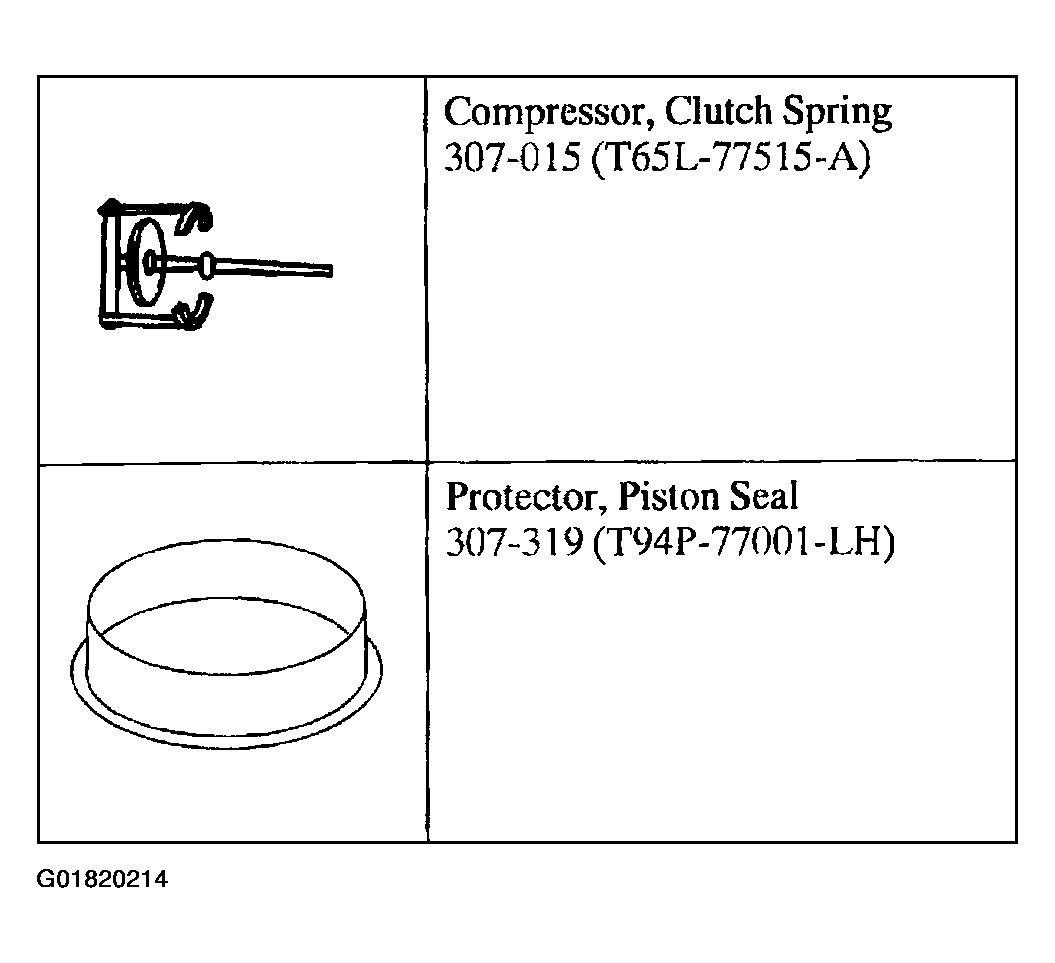

Fig 1: Special Tool(s) (1 Of 2)
G01820214Courtesy of FORD MOTOR CO.

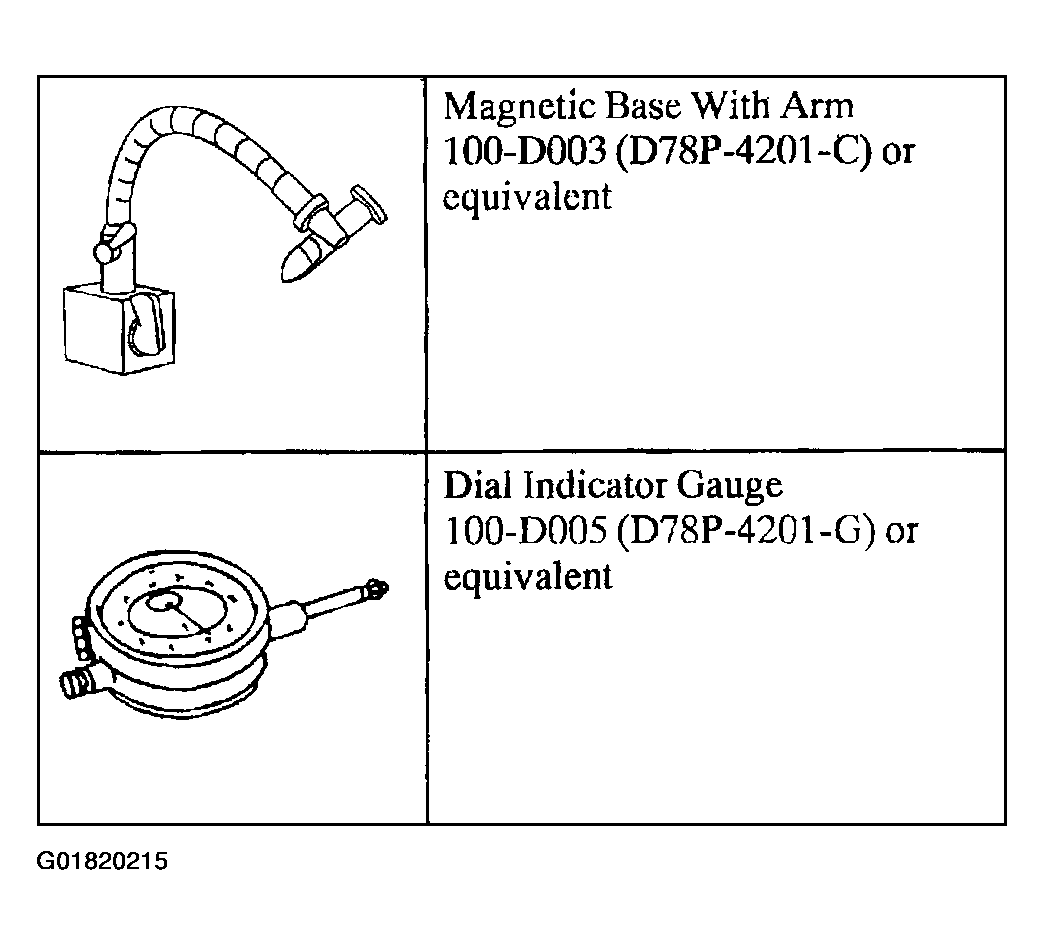

Fig 2: Special Tool(s) (2 Of 2)
G01820215Courtesy of FORD MOTOR CO.

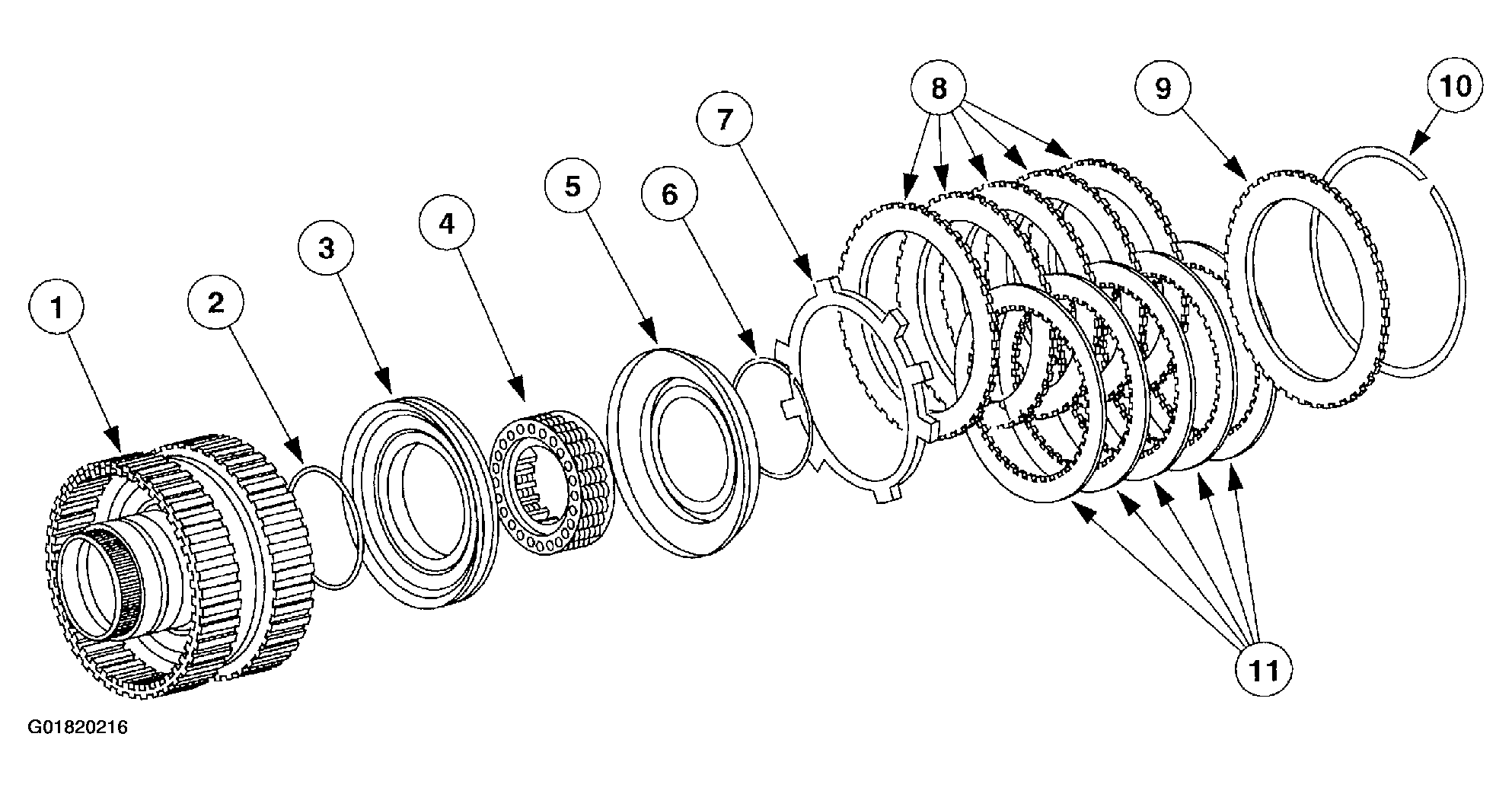

Fig 3: Intermediate Clutch Cylinder - Component View
G01820216Courtesy of FORD MOTOR CO.

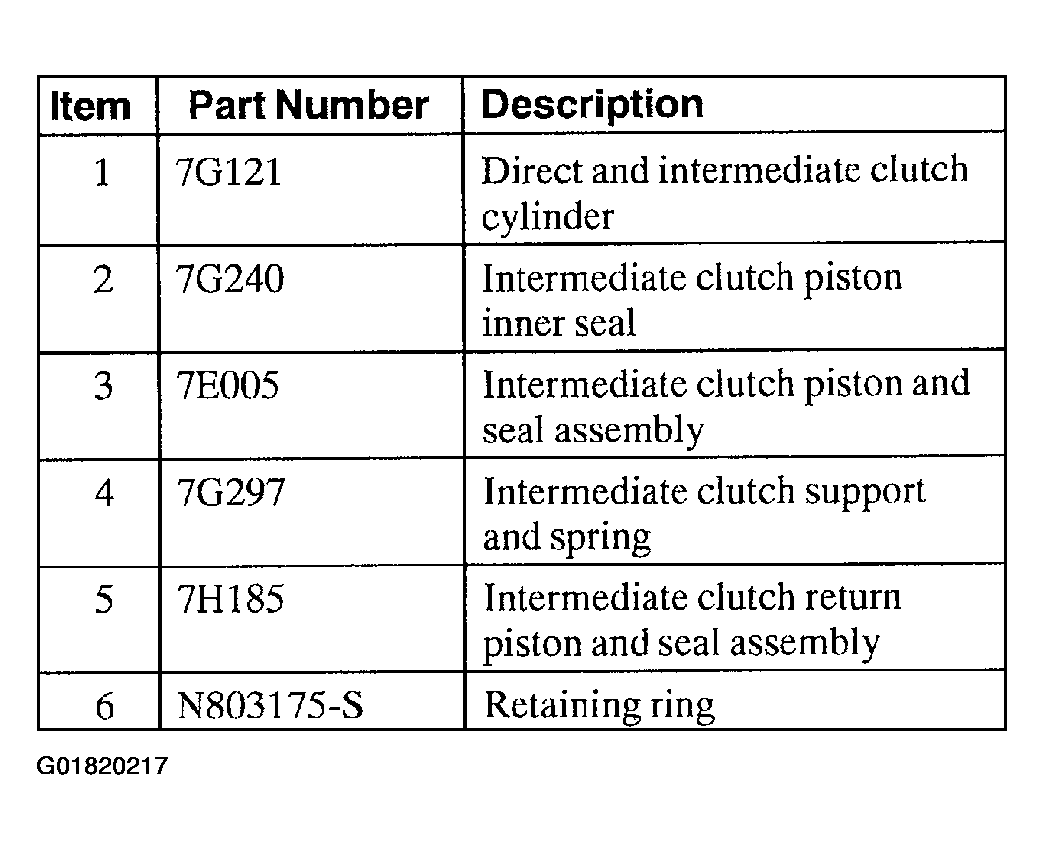

Fig 4: Intermediate Clutch Cylinder - Component View Legend (Items 1-6)
G01820217Courtesy of FORD MOTOR CO.

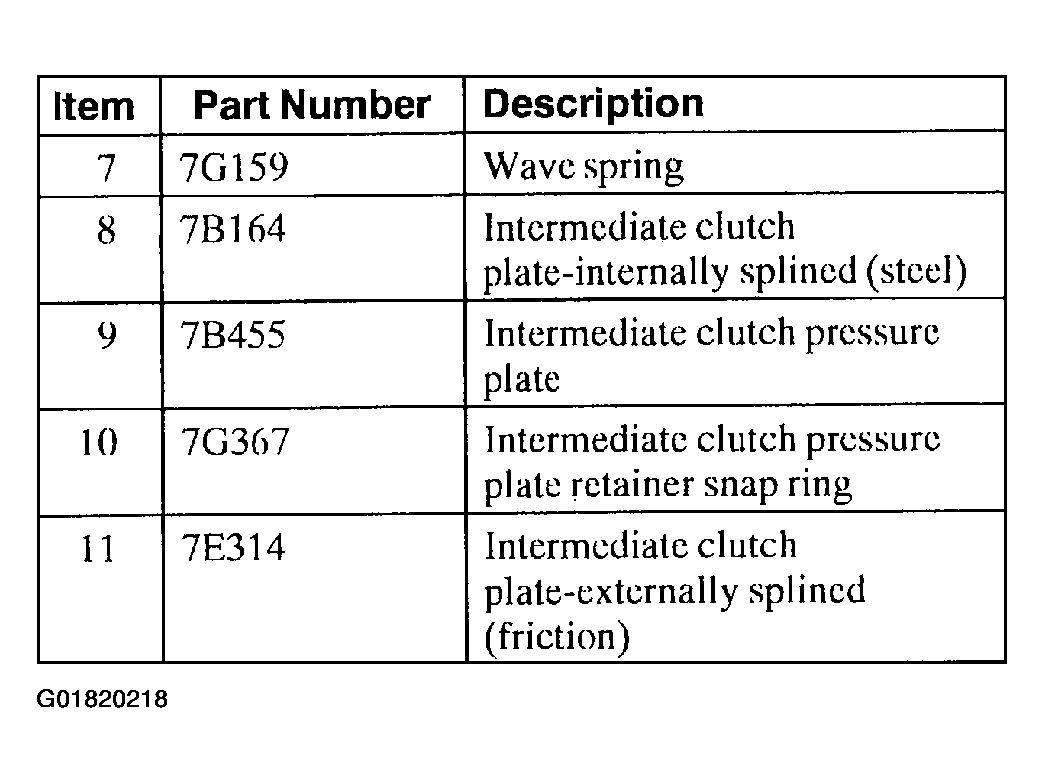

Fig 5: Intermediate Clutch Cylinder - Component View Legend (Items 7-11)
G01820218Courtesy of FORD MOTOR CO.
