Low-Intermediate Clutch Cylinder: Notes

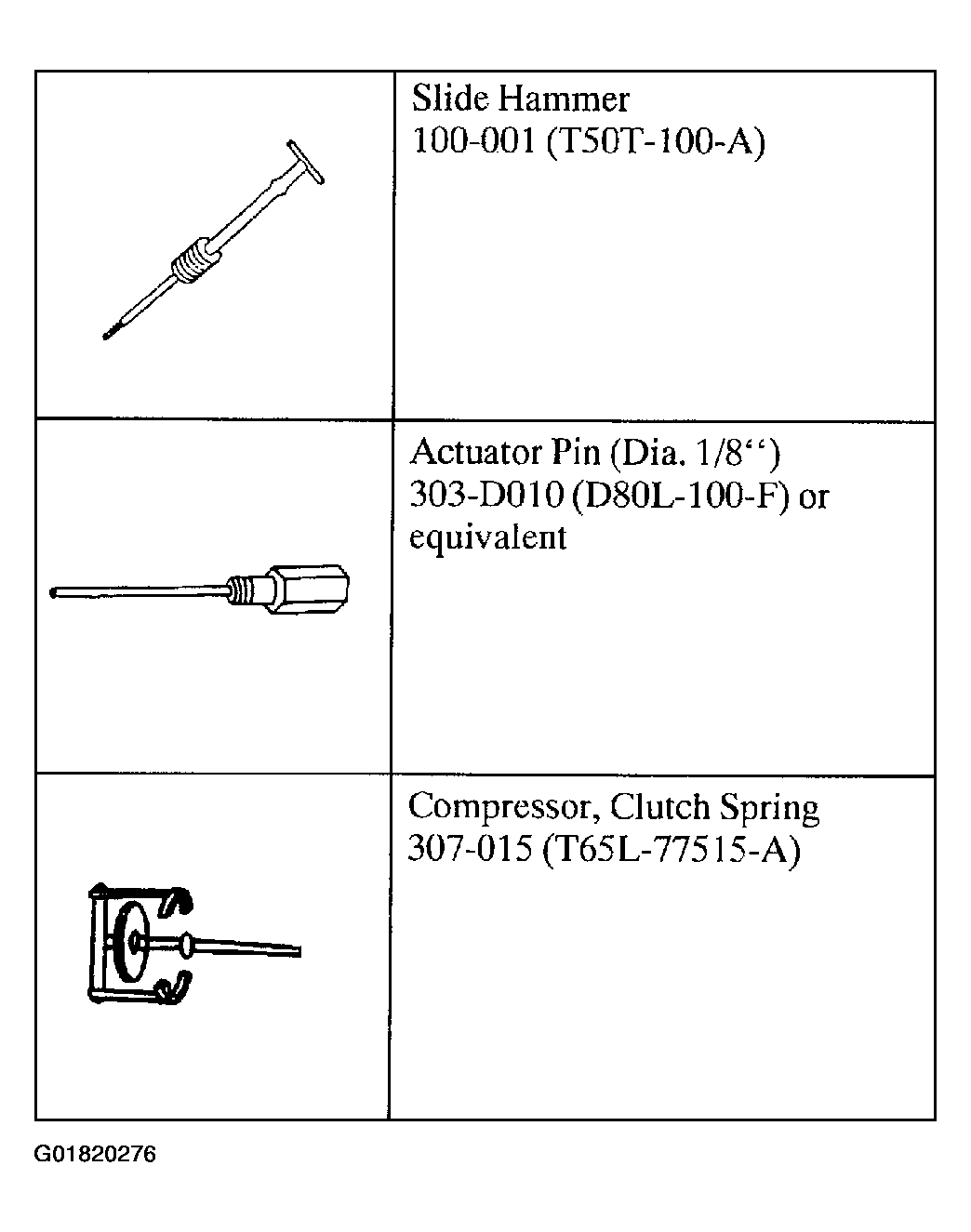

Fig 1: Special Tool(s) (1 Of 2)
G01820276Courtesy of FORD MOTOR CO.

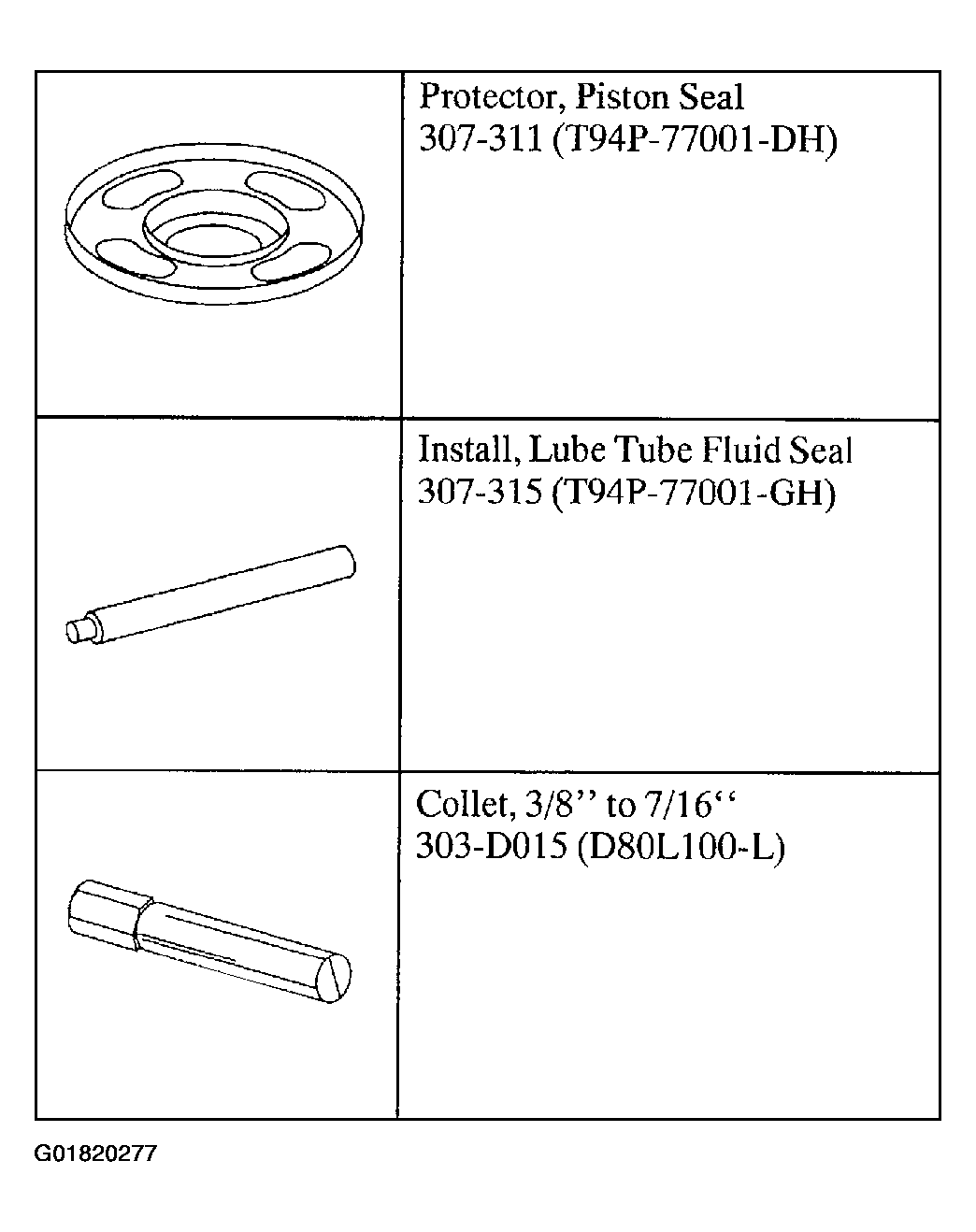

Fig 2: Special Tool(s) (2 Of 2)
G01820277Courtesy of FORD MOTOR CO.

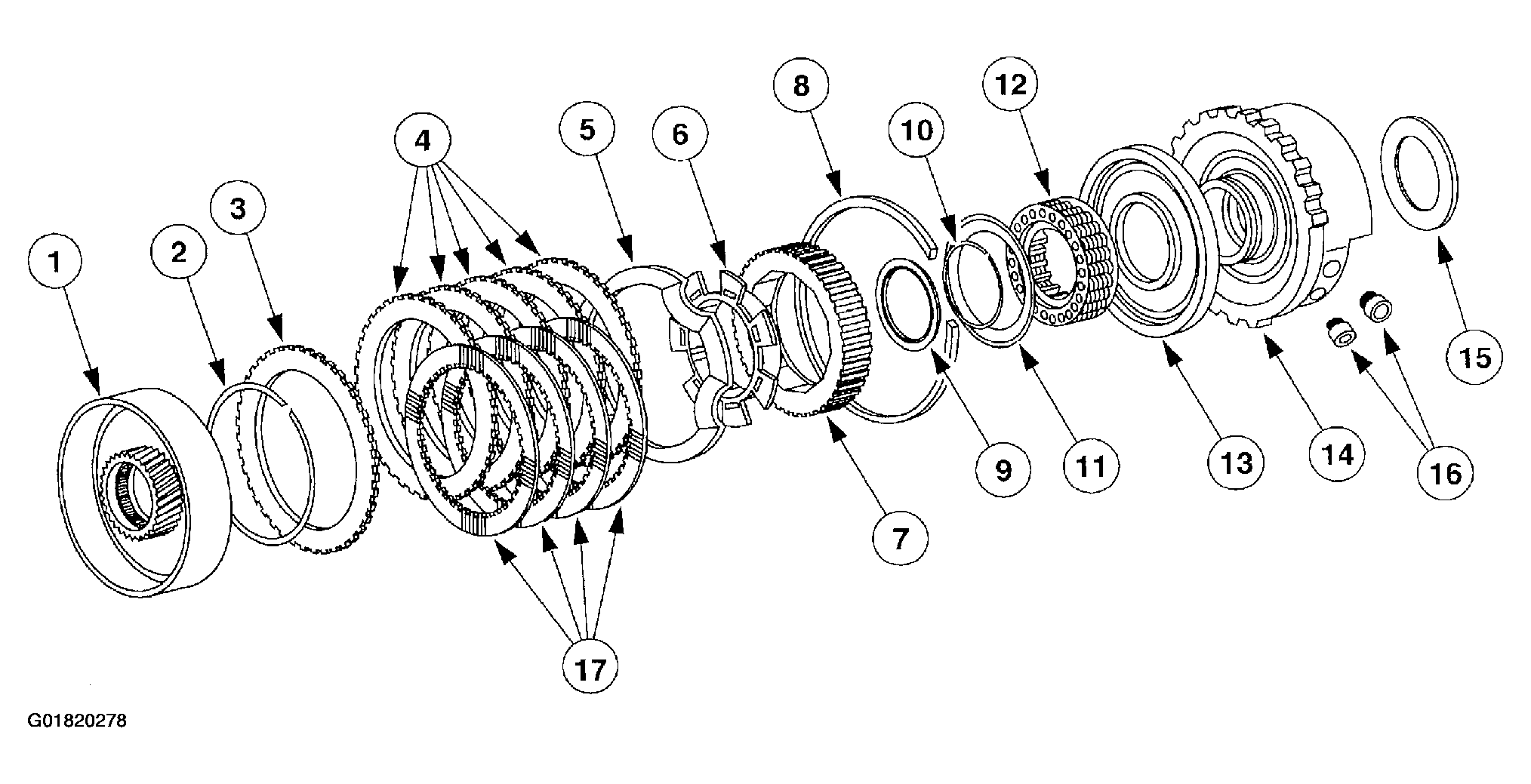

Fig 3: Low-Intermediate Clutch Cylinder - Component View
G01820278Courtesy of FORD MOTOR CO.

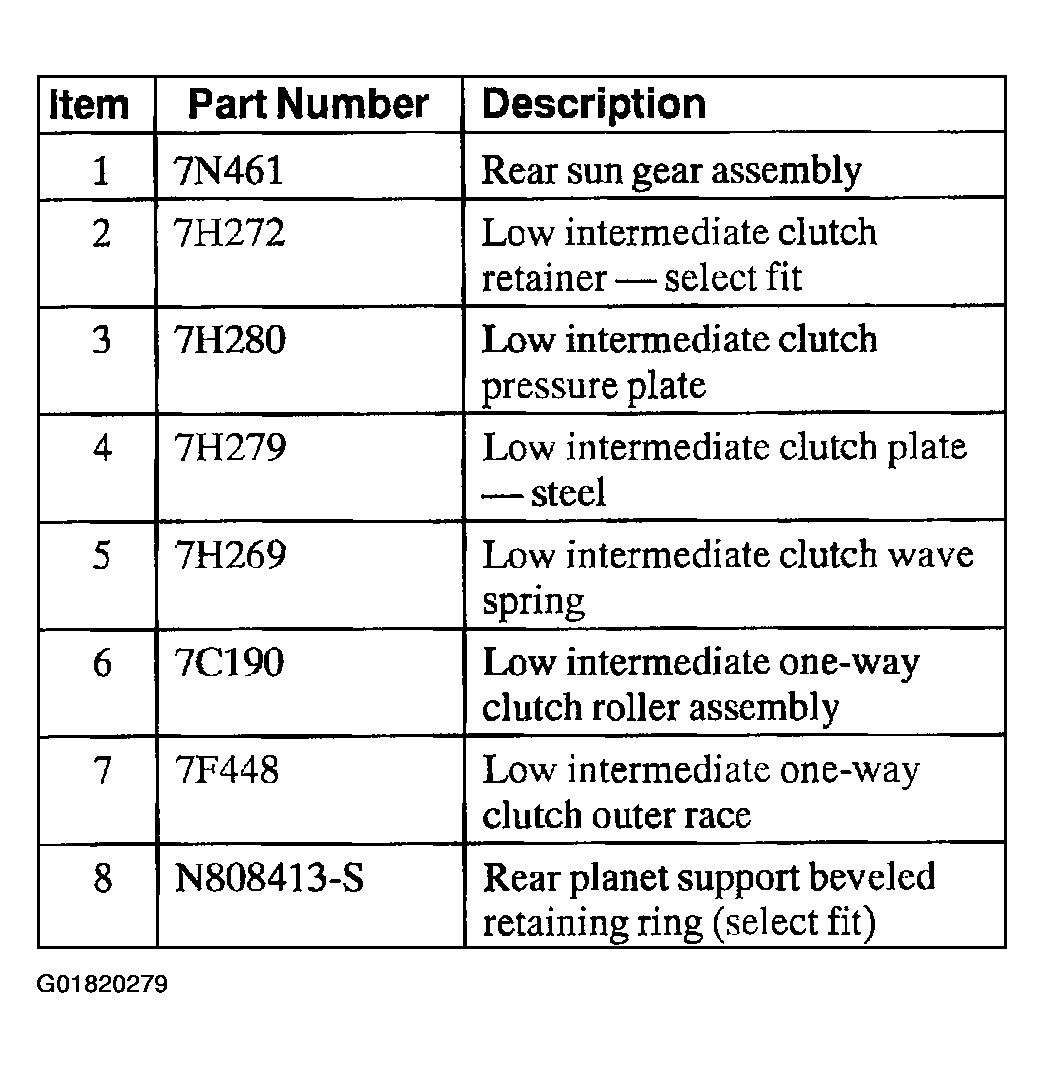

Fig 4: Low-Intermediate Clutch Cylinder - Component View Legend (Items 1-8)
G01820279Courtesy of FORD MOTOR CO.

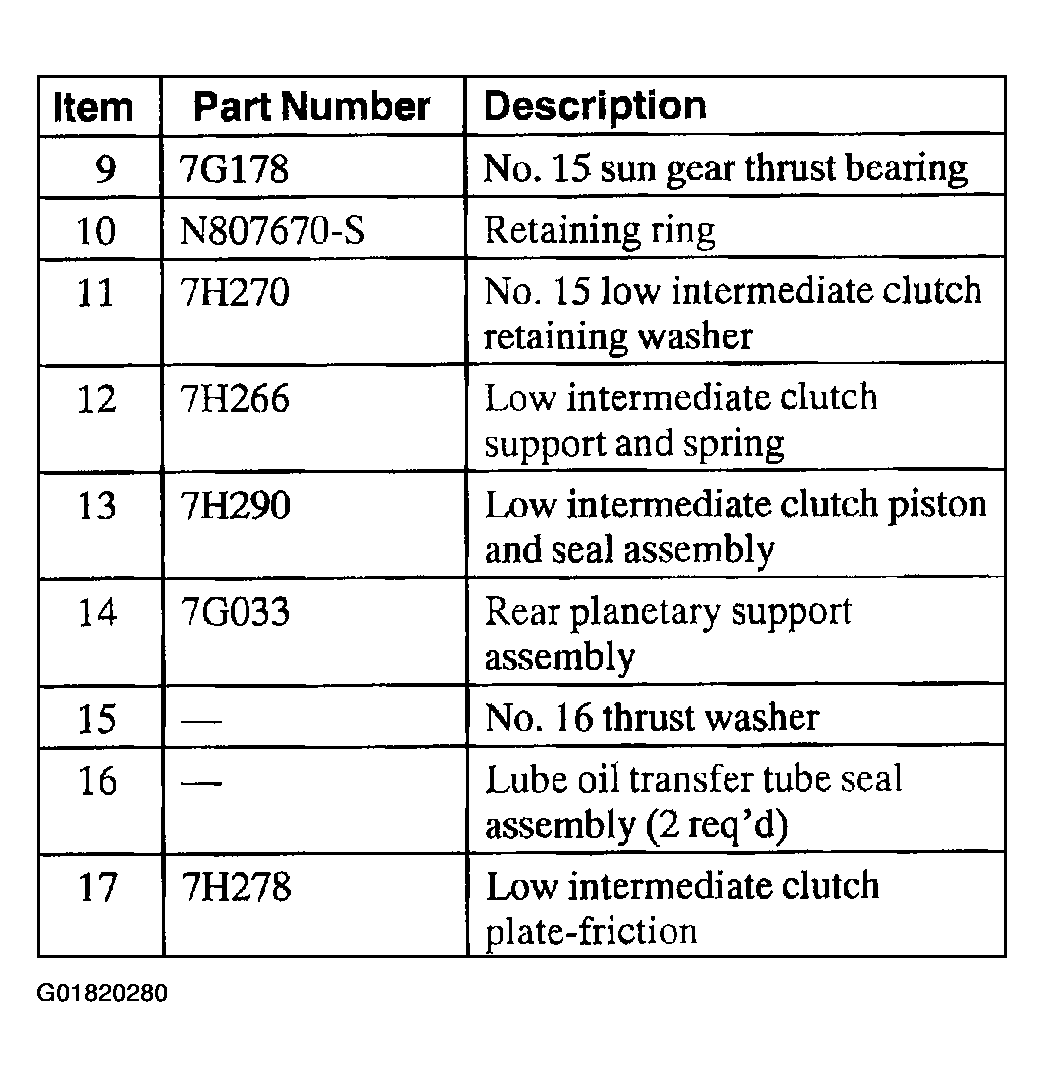

Fig 5: Low-Intermediate Clutch Cylinder - Component View Legend (Items 9-17)
G01820280Courtesy of FORD MOTOR CO.
