Overdrive Servo: Disassembly

  1. Remove the overdrive servo piston return spring.

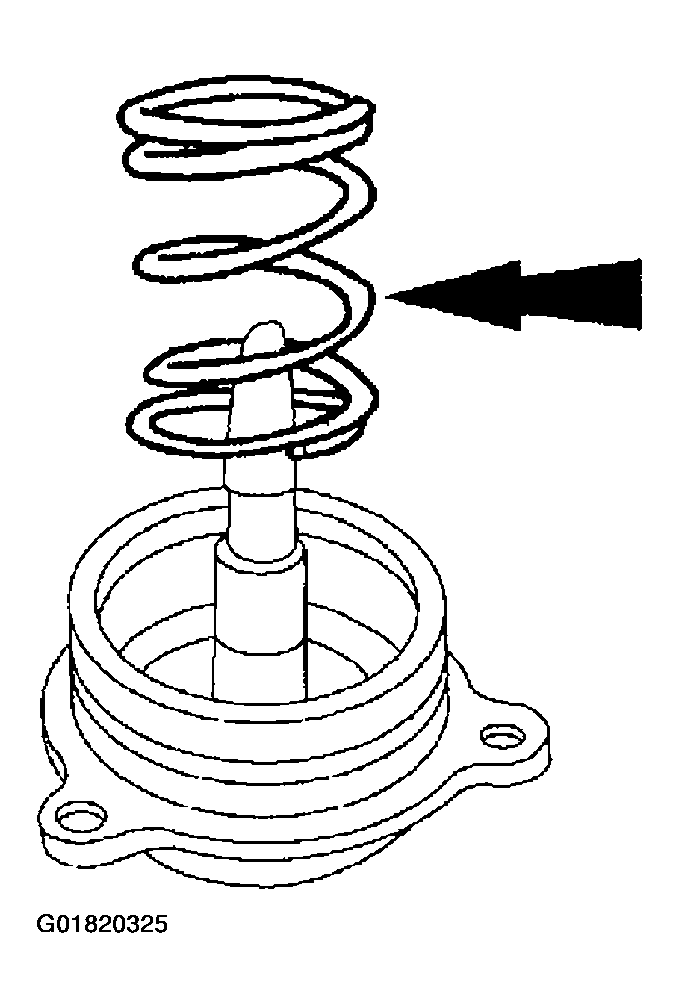

    2. Fig 1: Removing Piston Return Spring
    G01820325Courtesy of FORD MOTOR CO.
  2. Remove the overdrive servo piston and rod assembly.

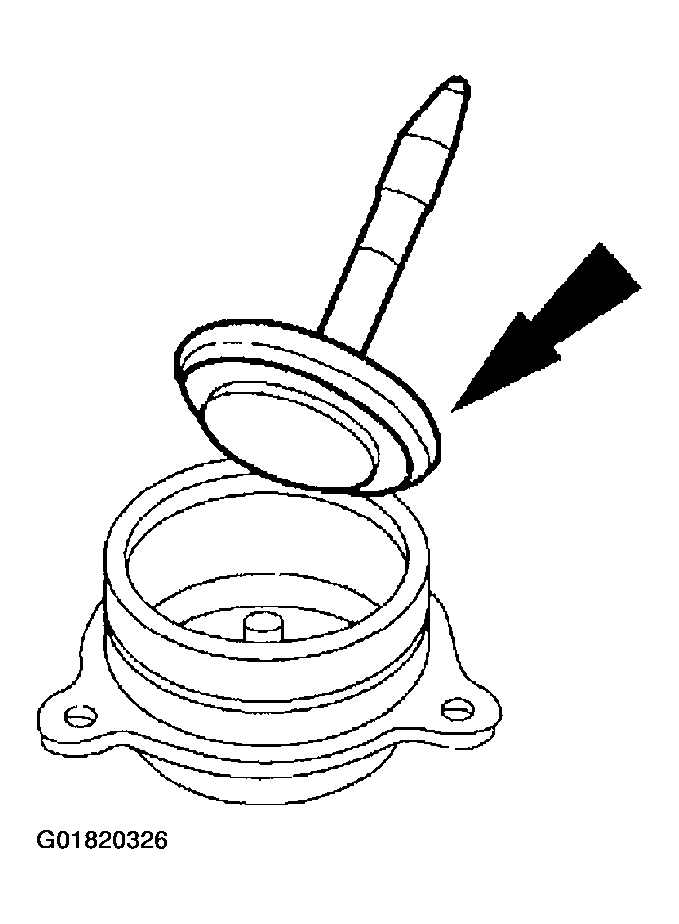

    3. Fig 2: Removing Overdrive Servo Piston & Rod Assembly
    G01820326Courtesy of FORD MOTOR CO.
  3. Install the servo piston large seal.
    1. Remove the servo piston large seal.
    2. Install the servo piston large seal.

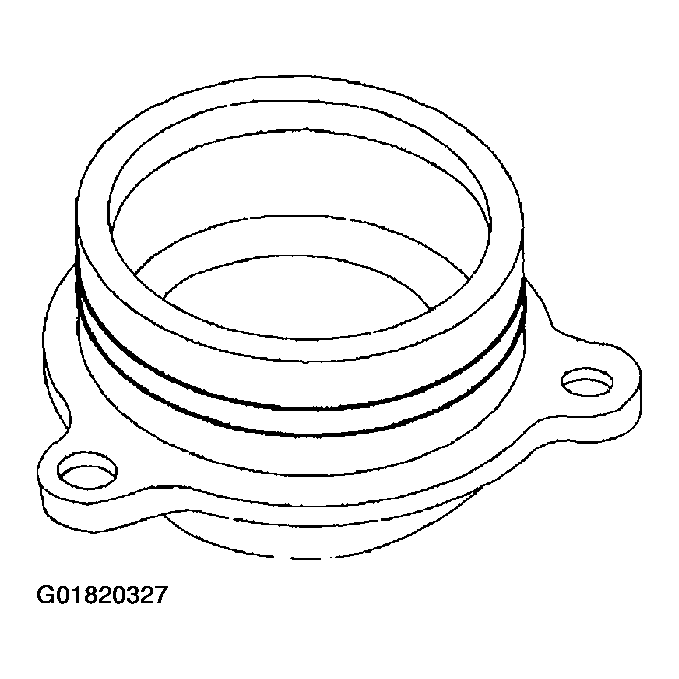

Fig 3: Installing Servo Piston Large Seal
G01820327Courtesy of FORD MOTOR CO.
