Planet Assembly: Assembly

  1. Install the retaining ring.
    1. Install rear planetary gear assembly.
    2. Install the No. 13 needle bearing with black side of bearing facing up.
    3. Install the front planetary gear assembly.
    4. Install the retaining ring.

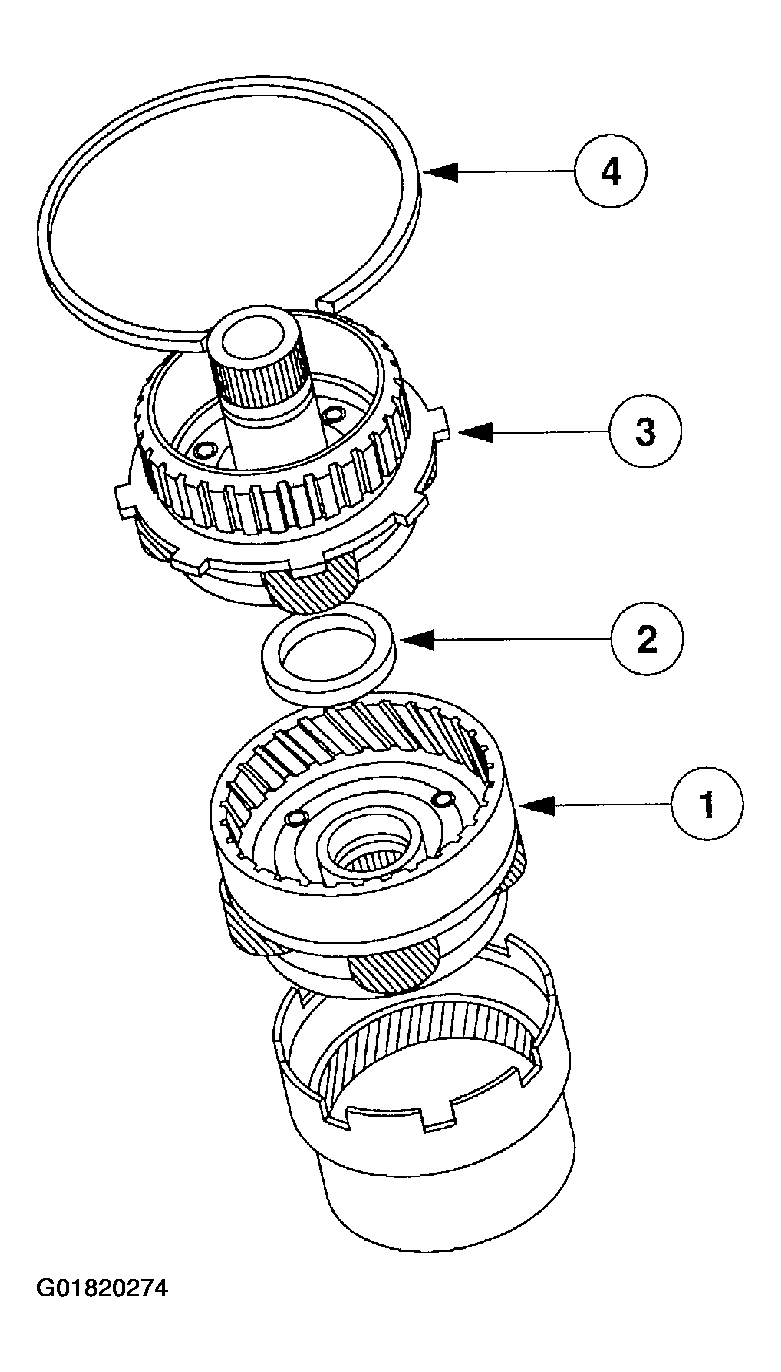

    2. Fig 1: Assembling Planet Assembly
    G01820274Courtesy of FORD MOTOR CO.
    NOTE: Make sure that the reverse clutch assembly is fully seated.
  2. Install the reverse clutch assembly.
Fig 2: Installing Reverse Clutch Assembly
G01820275Courtesy of FORD MOTOR CO.
