Pump Assembly: Assembly

    NOTE: Be sure the solenoids are locked in place by pressing down and rotating them.

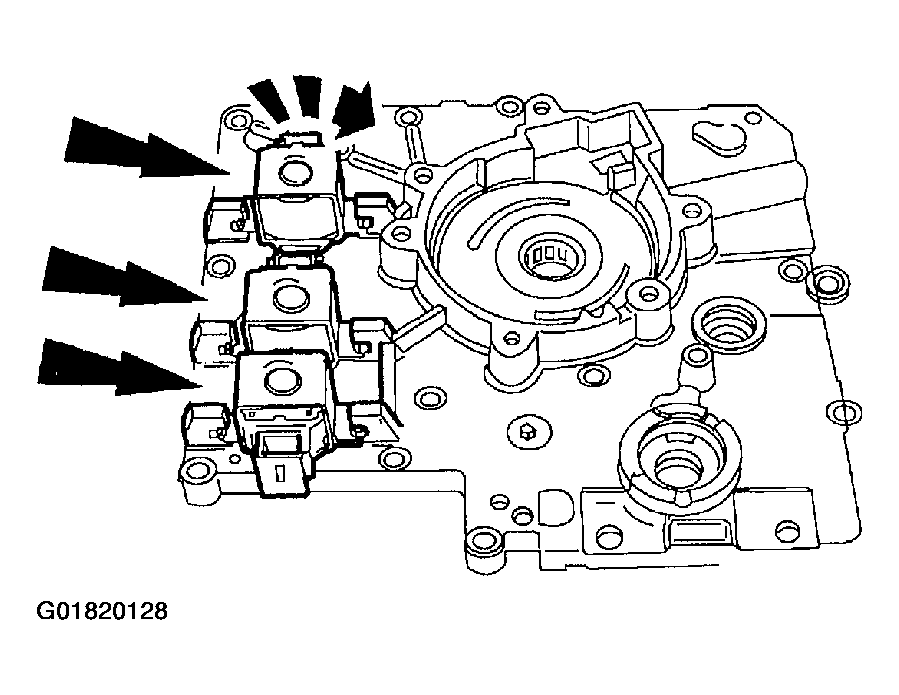

    Fig 1: Installing Shift Solenoids
    G01820128Courtesy of FORD MOTOR CO.
  1. Replace the O-rings and install the shift solenoids by pressing down and rotating them until they lock in place.
  2. Replace the O-rings and install the EPC, TCC solenoids.

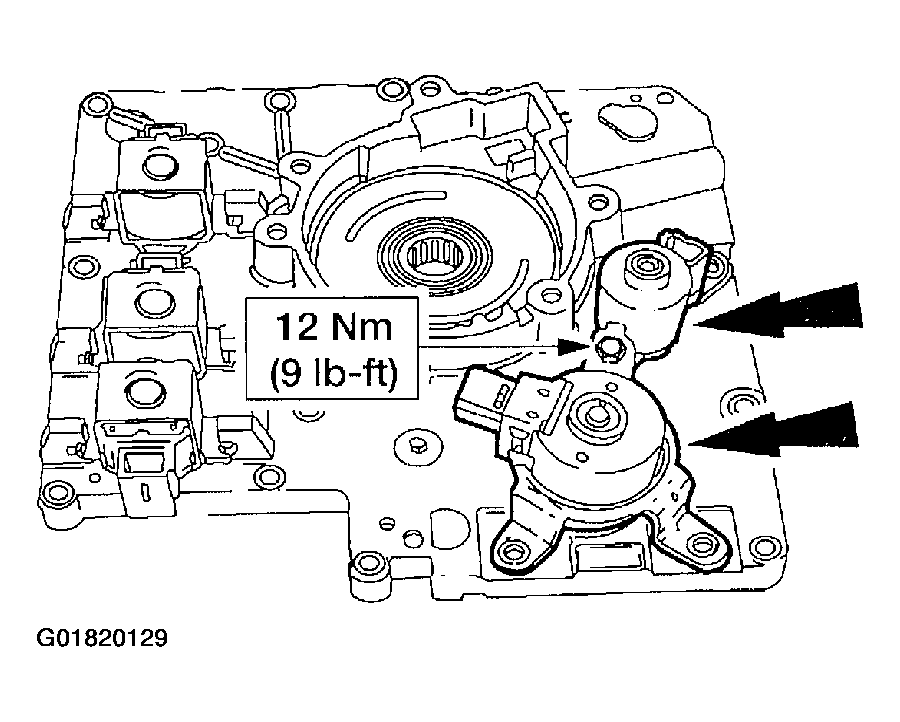

    Fig 2: Installing EPC & TCC Solenoids
    G01820129Courtesy of FORD MOTOR CO.
  3. Install the bottom pump vane support ring.

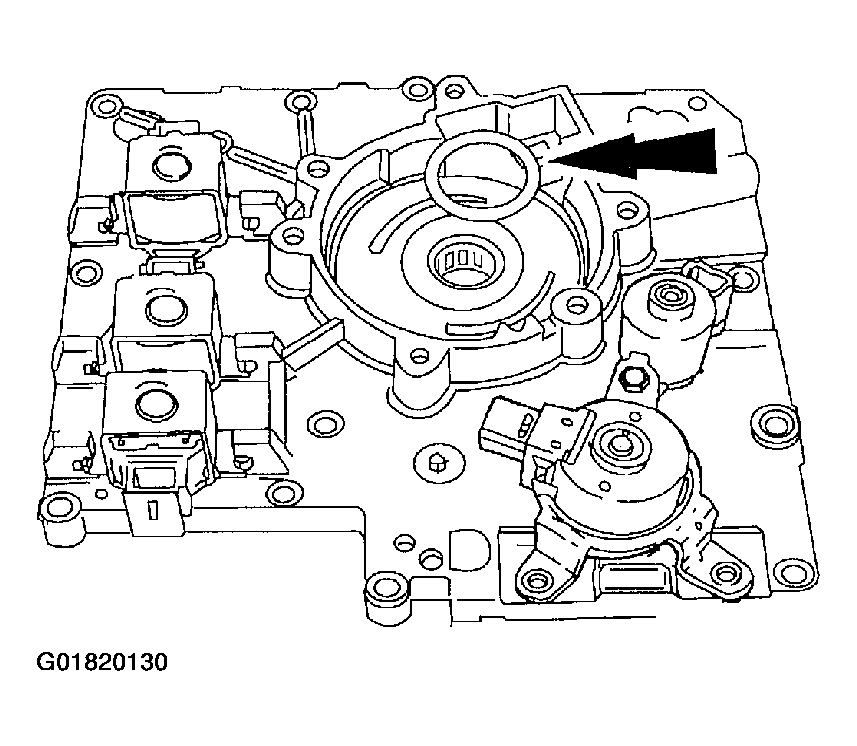

    Fig 3: Installing Bottom Pump Vane Support Ring
    G01820130Courtesy of FORD MOTOR CO.
    4. NOTE: The counter bore area is where the pump shaft and mating splines pass through the rotor.

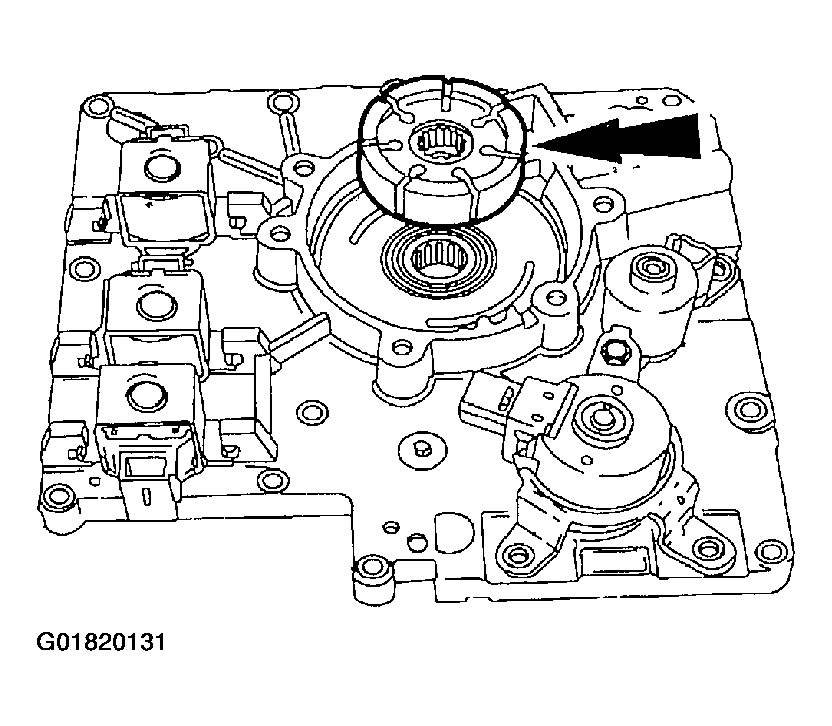

    Fig 4: Installing Rotor
    G01820131Courtesy of FORD MOTOR CO.
  4. Install the rotor with the counter bore facing up.
    5. NOTE: The shiny portion of the vane blade is installed outward toward the pump bore ring.

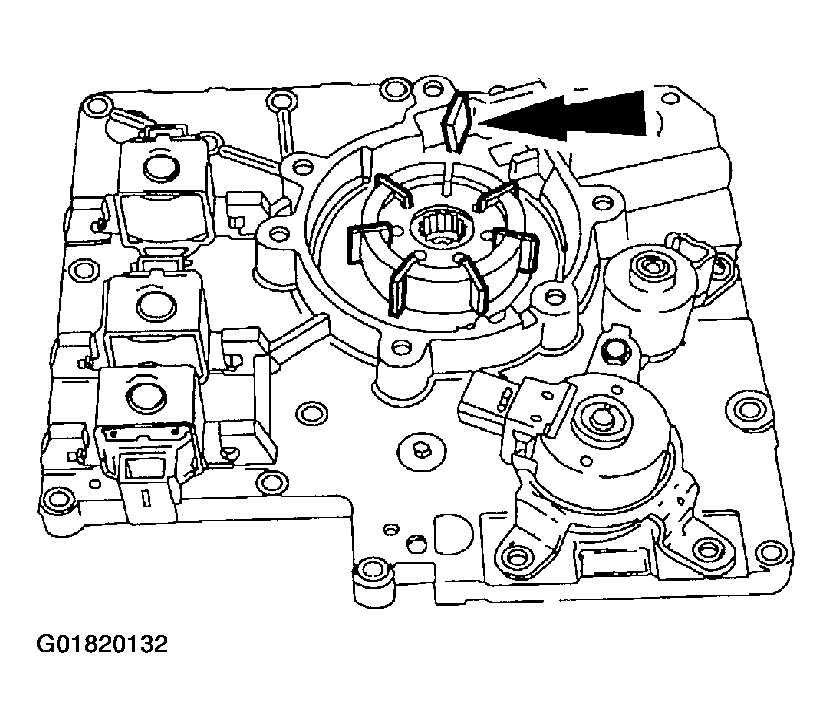

    Fig 5: Installing Pump Vanes
    G01820132Courtesy of FORD MOTOR CO.
  5. Install the pump vanes.
  6. Install the pump body ring with the O-ring groove facing up.

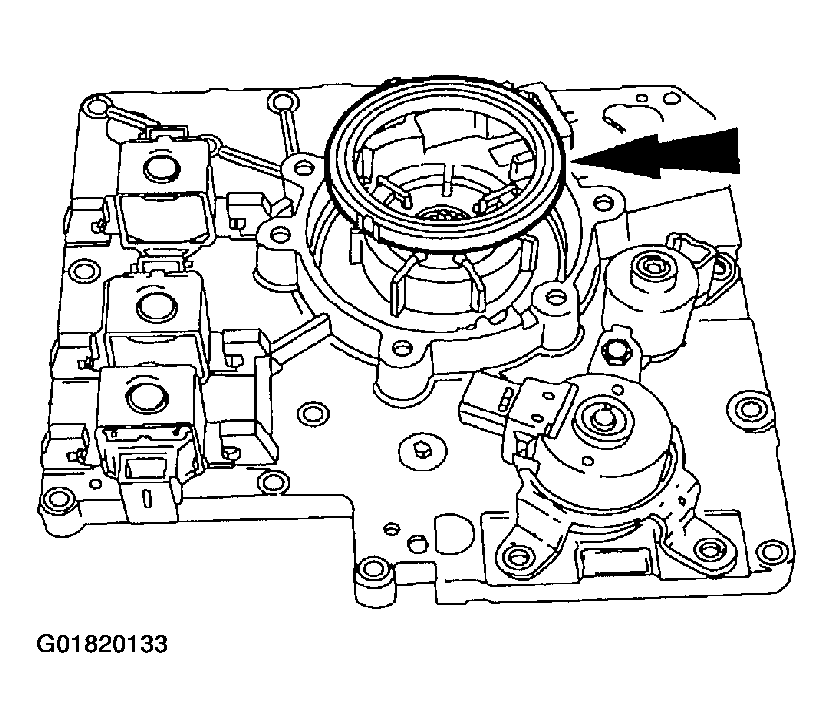

    Fig 6: Installing Pump Body Ring
    G01820133Courtesy of FORD MOTOR CO.
  7. Install the top pump vane support ring.

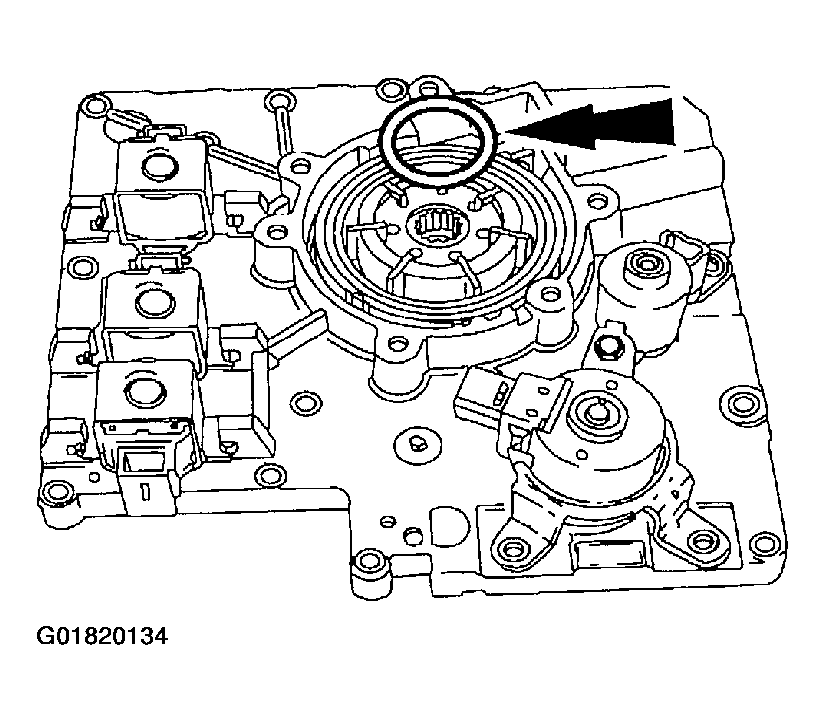

    Fig 7: Installing Top Pump Vane Supporting Ring
    G01820134Courtesy of FORD MOTOR CO.
  8. Install the pump bore ring radial seal and support.
    1. Install the pump bore ring radial seal (orange rectangular).
    2. Install the pump bore ring radial seal support (black round).

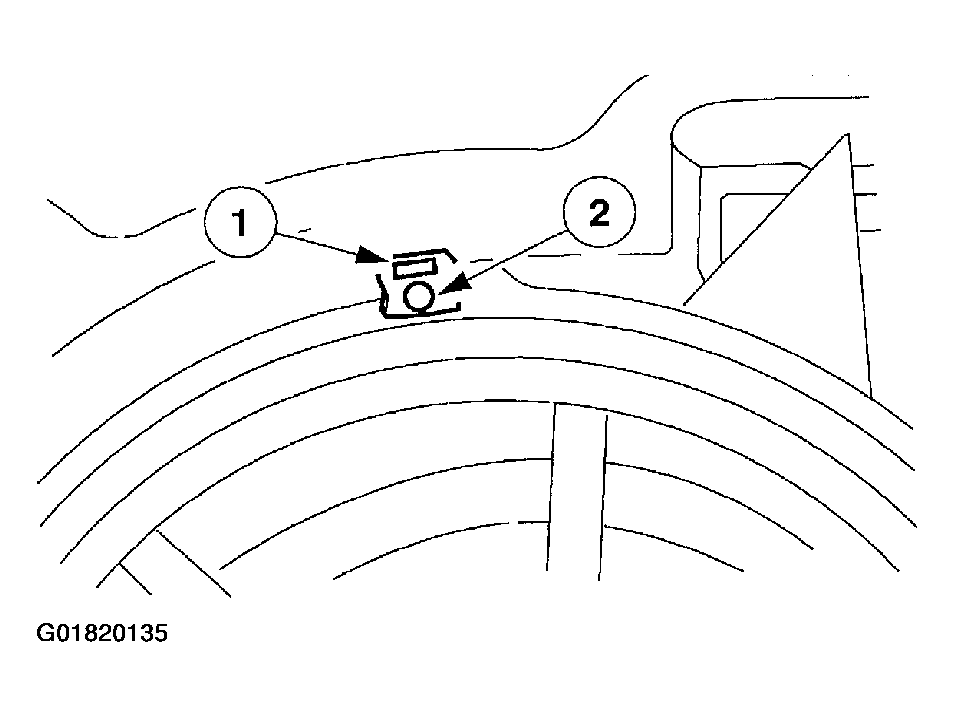

    Fig 8: Installing Pump Bore Ring Radial Seal & Support
    G01820135Courtesy of FORD MOTOR CO.
  9. Install the metal bore ring and support seal.
    1. Install the support seal (O-ring).
    2. Install the bore ring side seal (metal).

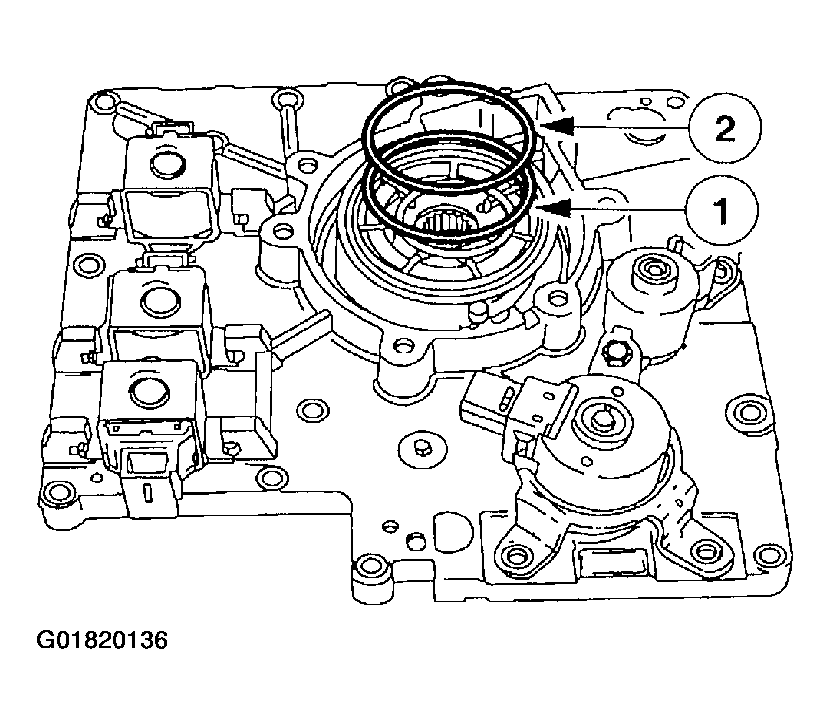

    Fig 9: Installing Metal Bore Ring & Support Seal
    G01820136Courtesy of FORD MOTOR CO.
  10. Install the bore ring pivot pin.

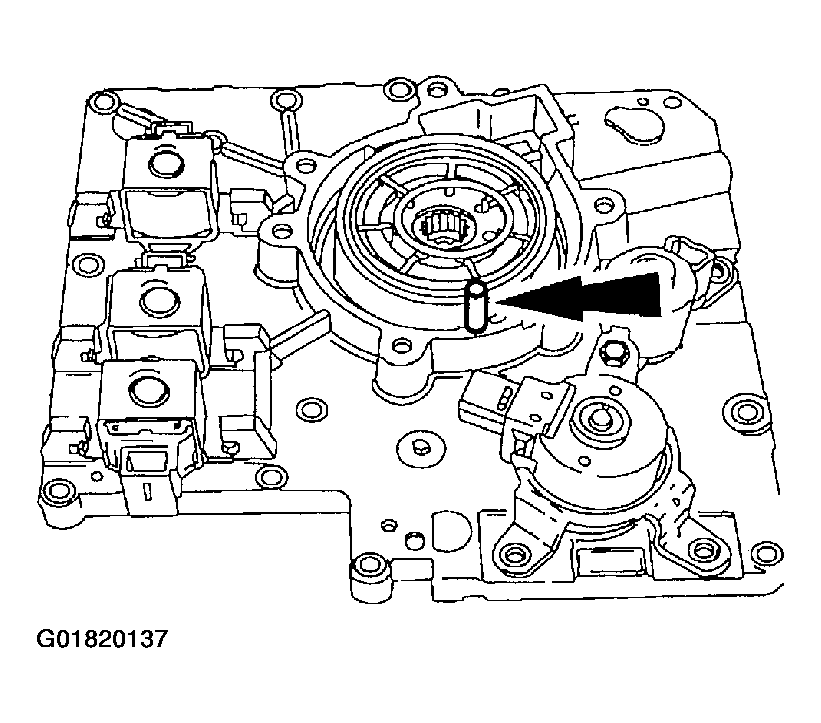

    Fig 10: Installing Bore Ring Pivot Pin
    G01820137Courtesy of FORD MOTOR CO.
    11. CAUTION: Be sure the pump bore area is well cleaned. It is a hidden debris trap. Flow from the pump goes into the manual valve circuit, then passes into the EPC circuit. Pump pressure at this point is very high. Any debris not cleaned out here will be pumped through the transaxle on the first operation.

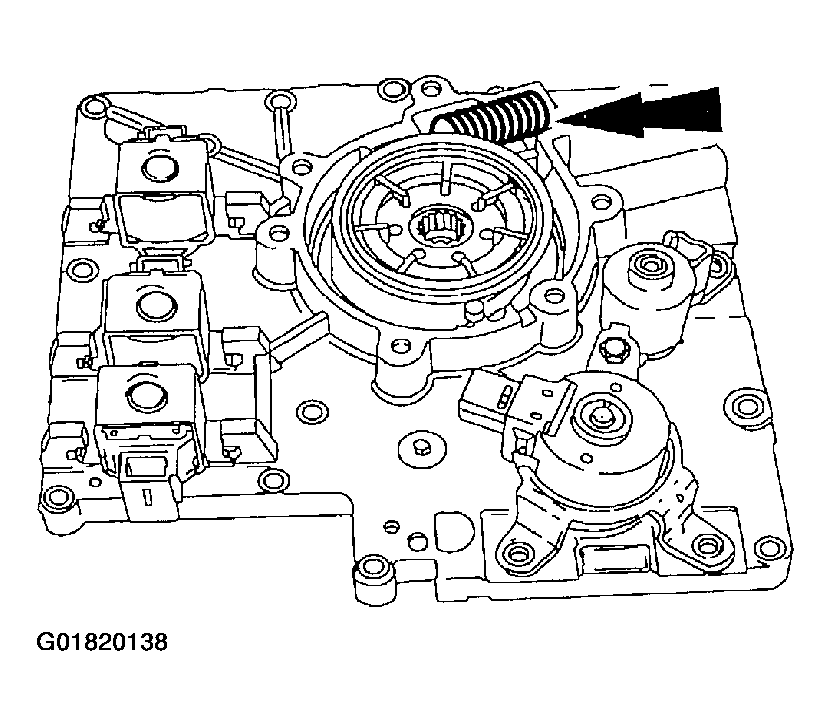

    Fig 11: Installing Pump Bore Ring Spring
    G01820138Courtesy of FORD MOTOR CO.
  11. Install the pump bore ring spring between the case and the tab on the pump bore ring.
    12. NOTE: Use the pump shaft to align the pump cover during installation.

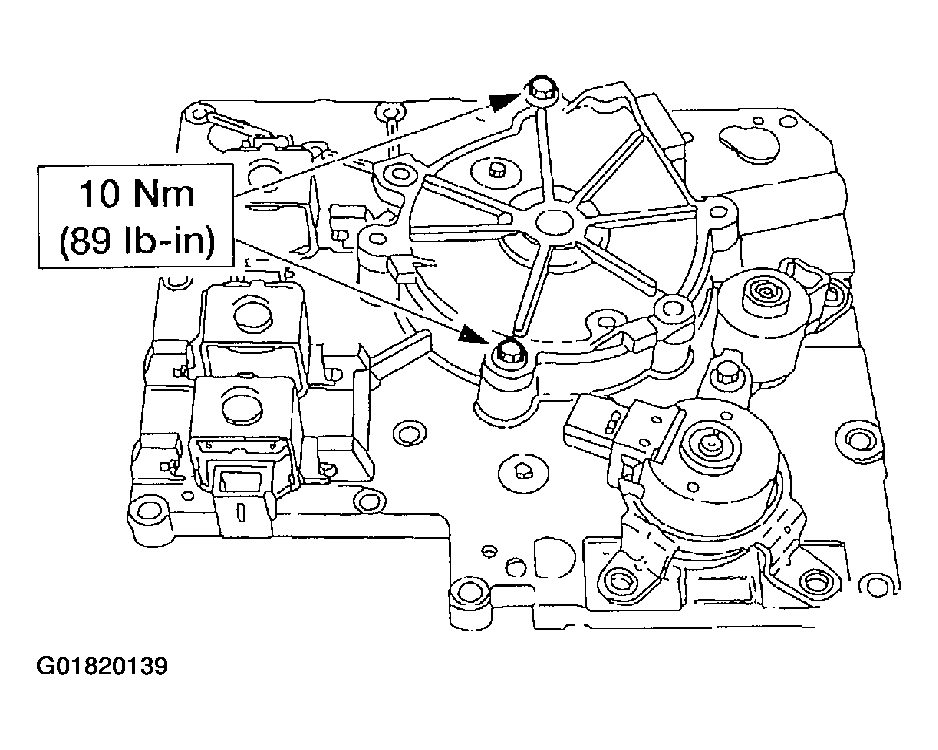

    Fig 12: Installing Pump Cover Bolts
    G01820139Courtesy of FORD MOTOR CO.
  12. Install the pump cover and bolts.
  13. Install the check balls.

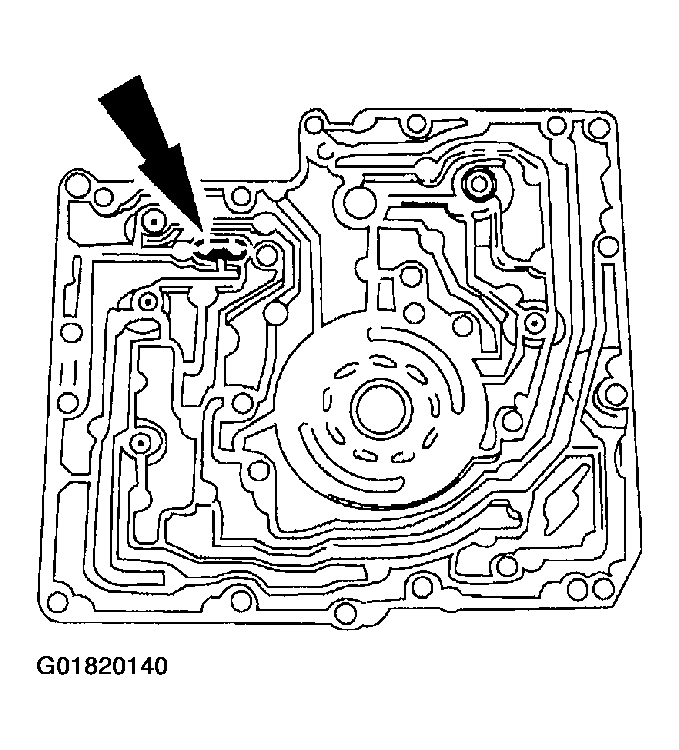

    Fig 13: Installing Check Ball
    G01820140Courtesy of FORD MOTOR CO.
  14. Install the separator plate and the gaskets.

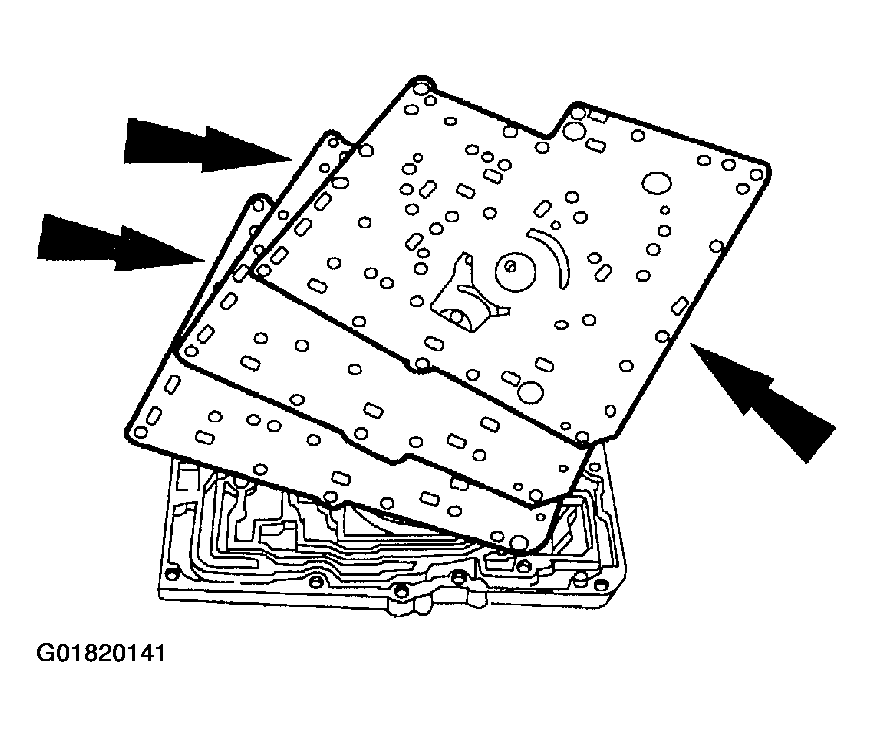

    Fig 14: Installing Separator Plate & Gaskets
    G01820141Courtesy of FORD MOTOR CO.
  15. Install the bolts.

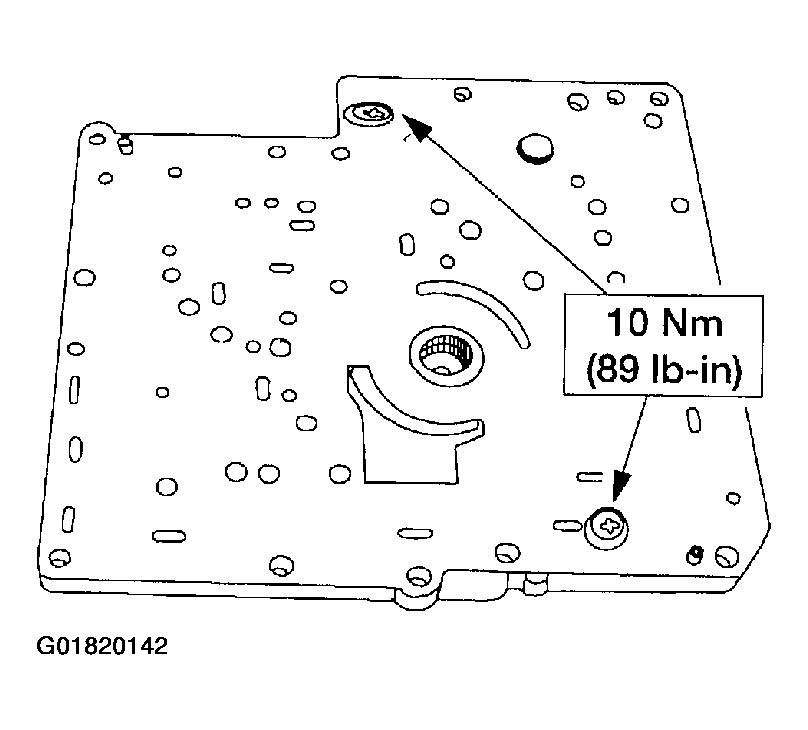

    Fig 15: Install Separator Plate Bolts
    G01820142Courtesy of FORD MOTOR CO.
  16. Assemble the main control assembly.
    1. Install the main control valve body on the pump body assembly.
    2. Install the special tool in the valve body.

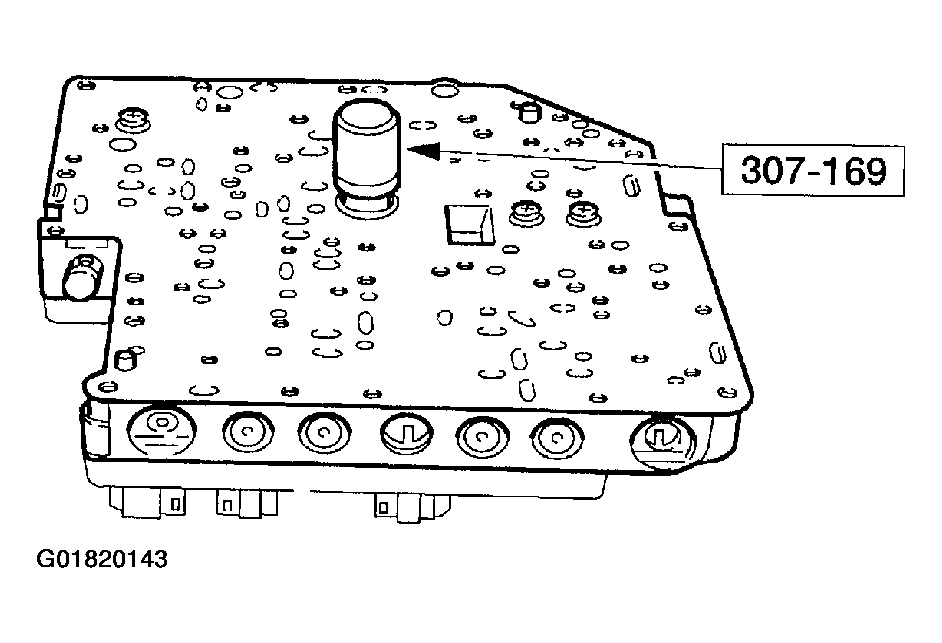

    Fig 16: Assembling Main Control Assembly
    G01820143Courtesy of FORD MOTOR CO.
  17. Install the bolts.

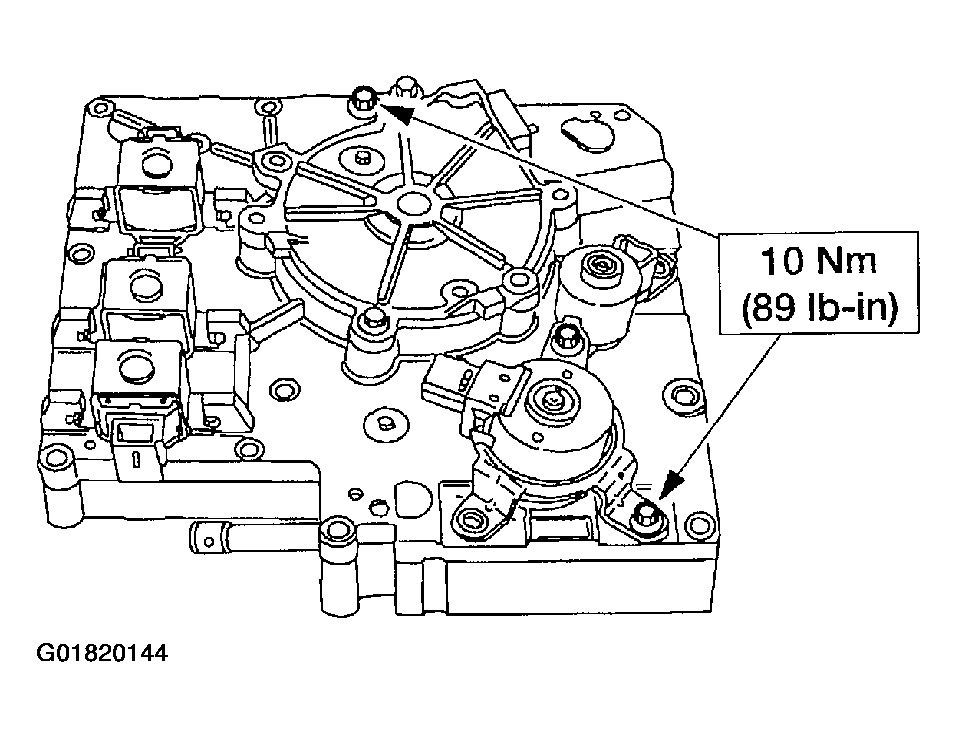

Fig 17: Installing Bolts
G01820144Courtesy of FORD MOTOR CO.
