Pump Assembly: Notes

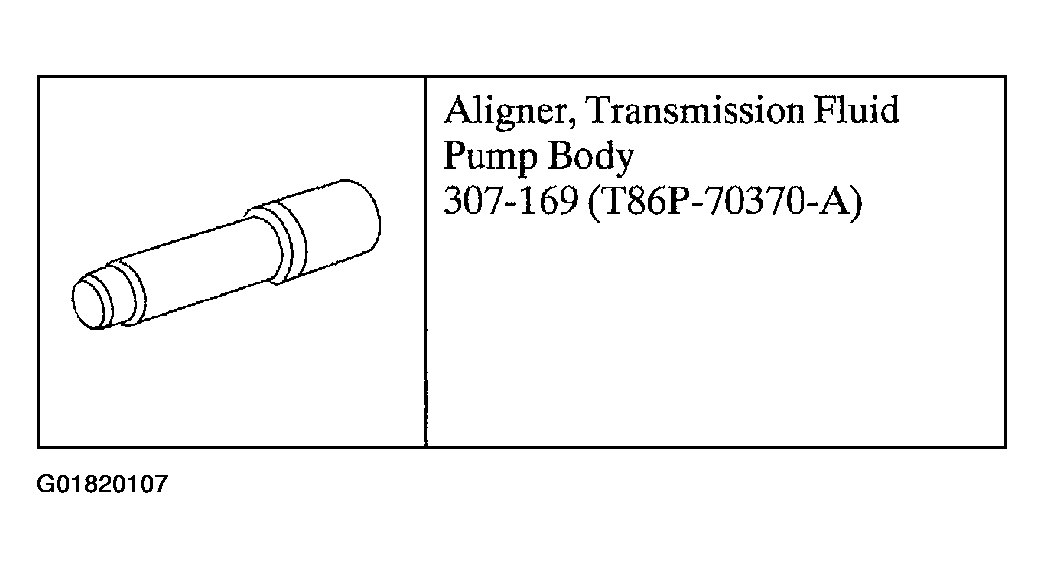

Fig 1: Special Tool(s)
Courtesy of FORD MOTOR CO.

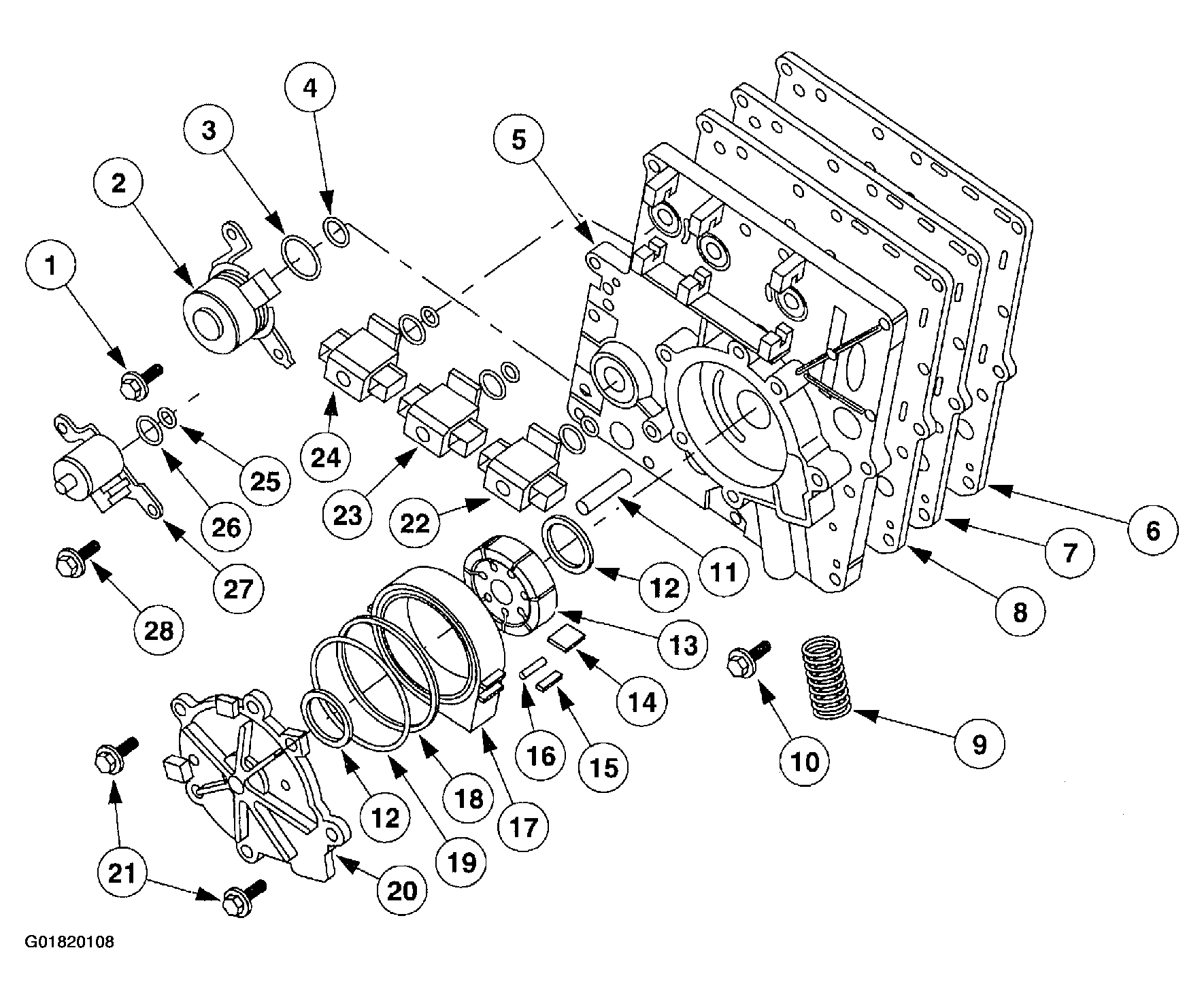

Fig 2: Pump Assembly - Component View
Courtesy of FORD MOTOR CO.

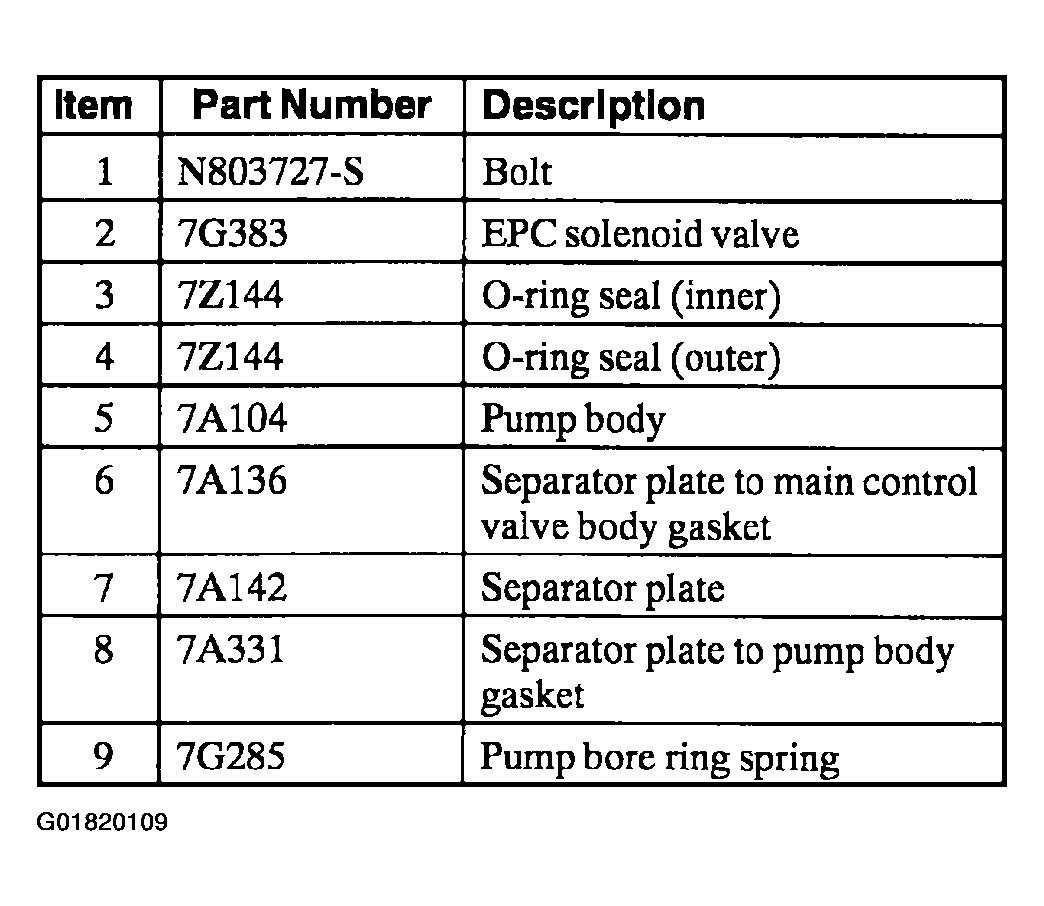

Fig 3: Pump Assembly - Component View Legend (Items 1-9)
Courtesy of FORD MOTOR CO.

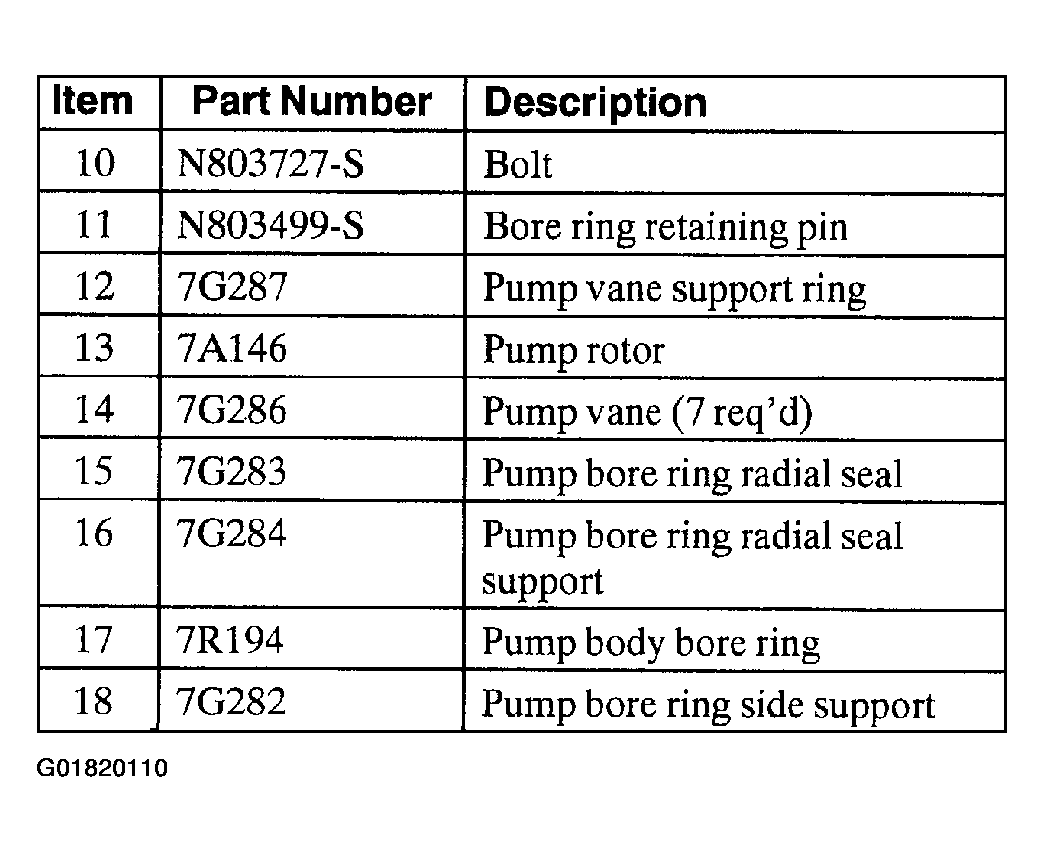

Fig 4: Pump Assembly - Component View Legend (Items 10-18)
Courtesy of FORD MOTOR CO.

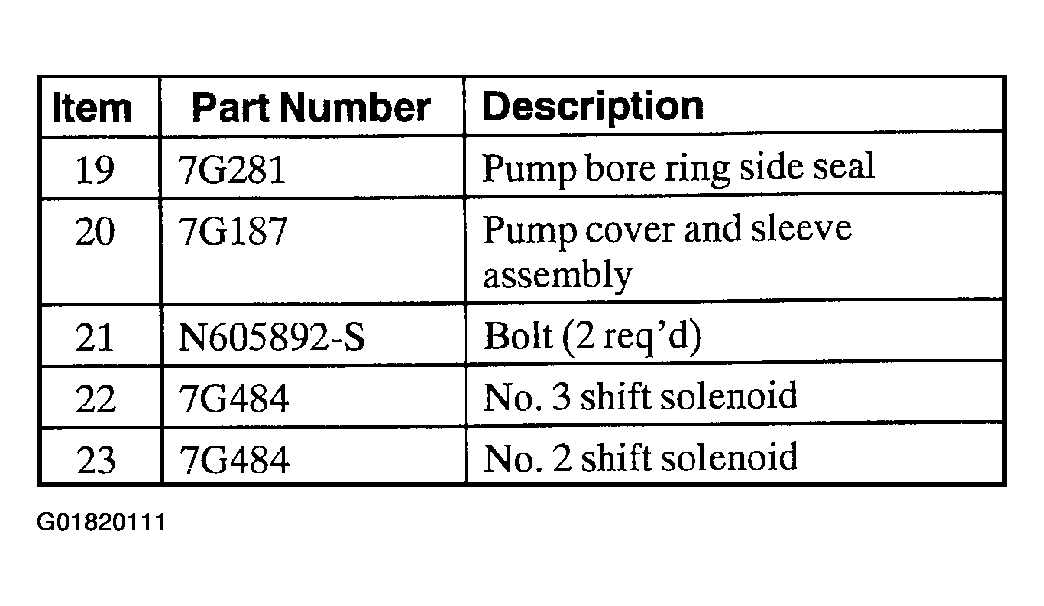

Fig 5: Pump Assembly - Component View Legend (Items 19-23)
Courtesy of FORD MOTOR CO.

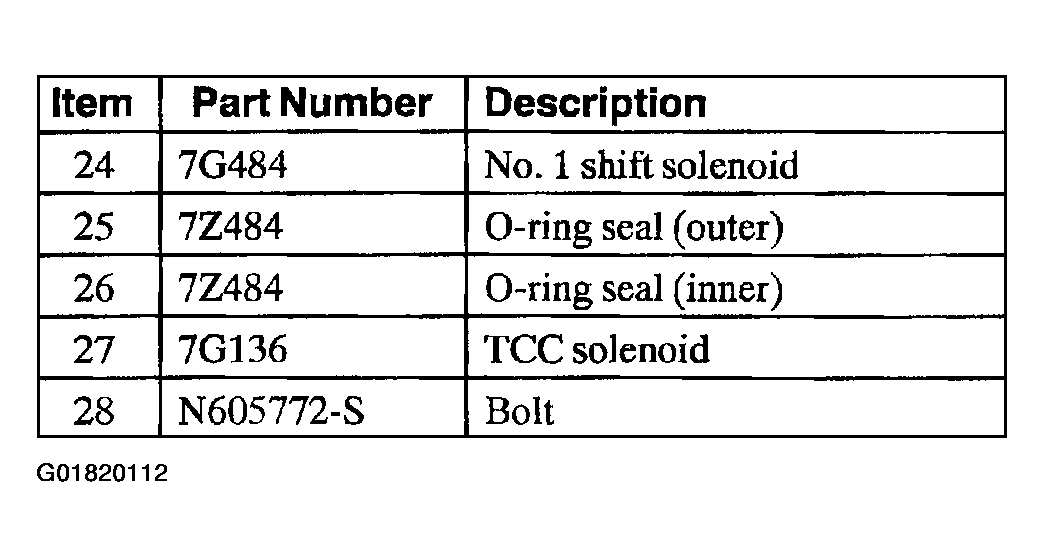

Fig 6: Pump Assembly - Component View Legend (Items 24-28)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
