Reverse Clutch: Notes

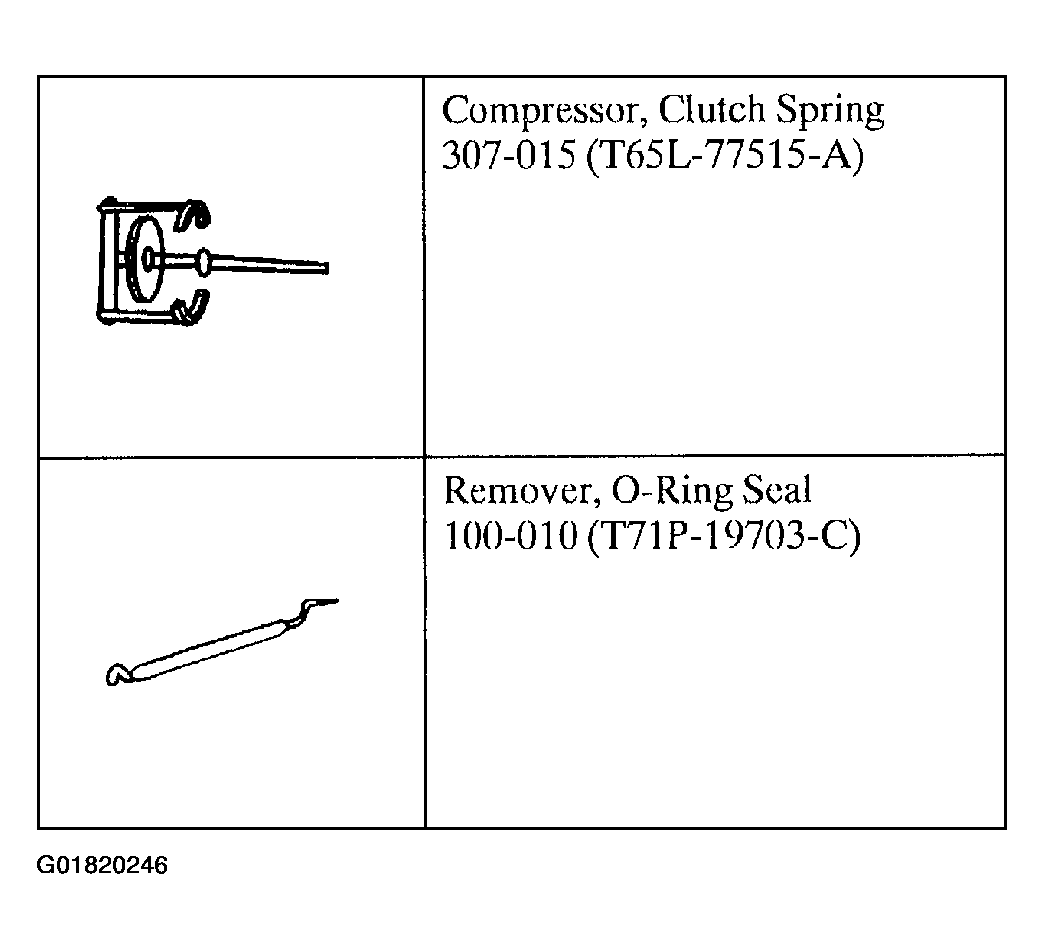

Fig 1: Special Tool(s) (1 Of 2)
G01820246Courtesy of FORD MOTOR CO.

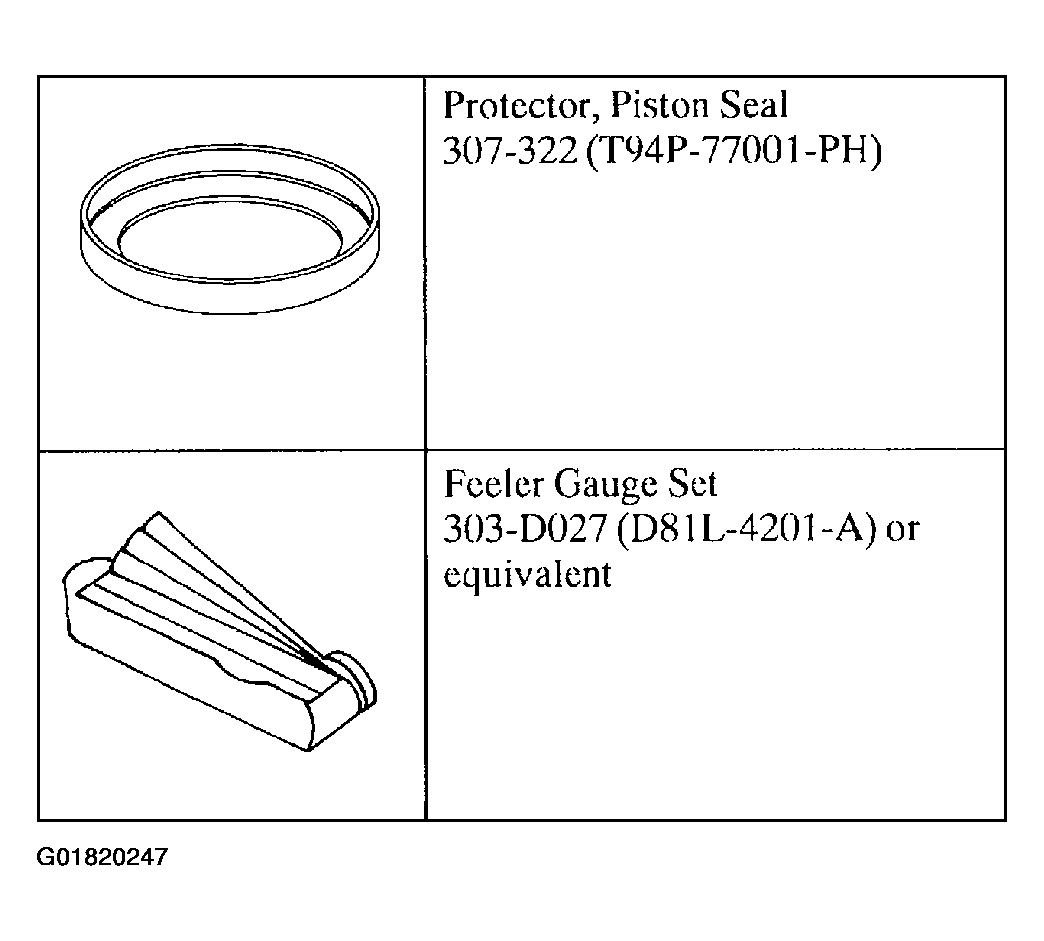

Fig 2: Special Tool(s) (2 Of 2)
G01820247Courtesy of FORD MOTOR CO.

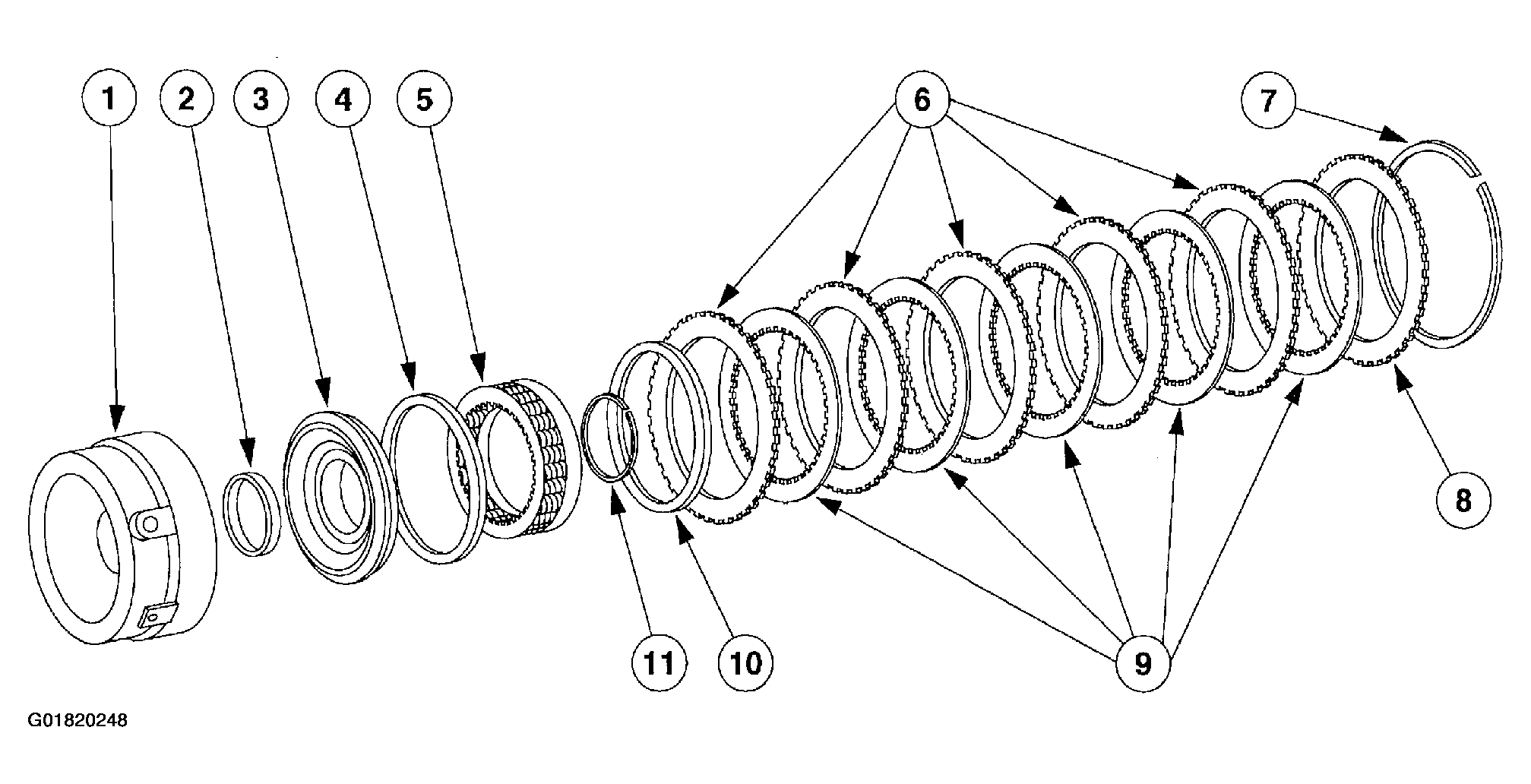

Fig 3: Reverse Clutch - Component View
G01820248Courtesy of FORD MOTOR CO.
Fig 4: Reverse Clutch - Component View Legend (Items 1-6)
G01820249Courtesy of FORD MOTOR CO.

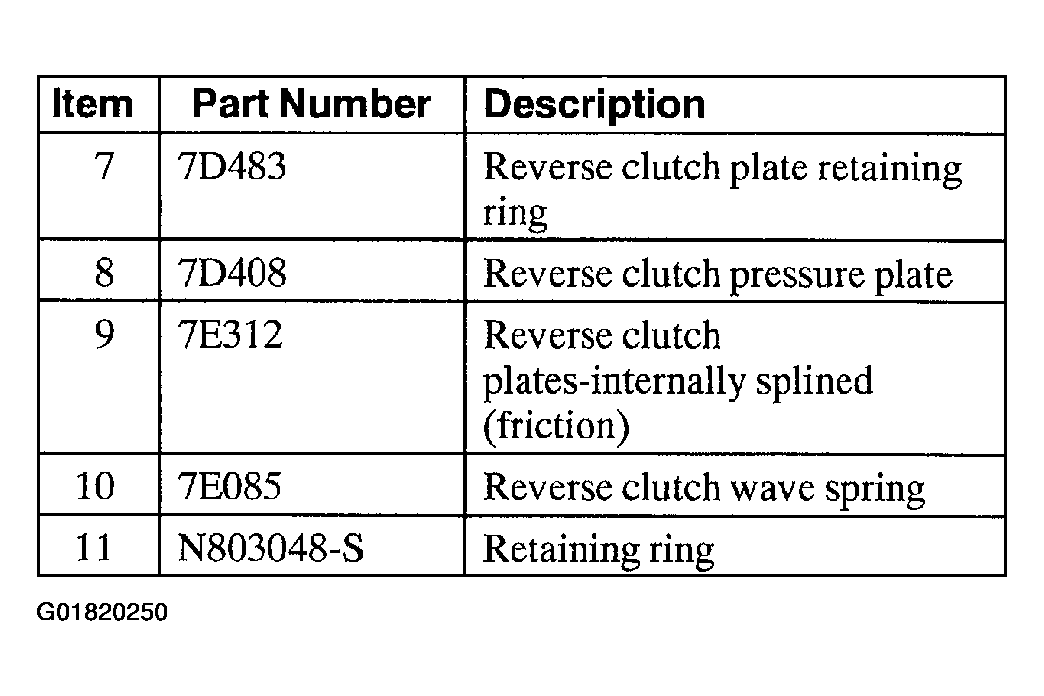

Fig 5: Reverse Clutch - Component View Legend (Items 7-11)
G01820250Courtesy of FORD MOTOR CO.
