Sun and Shell Assembly - Assembly: Notes

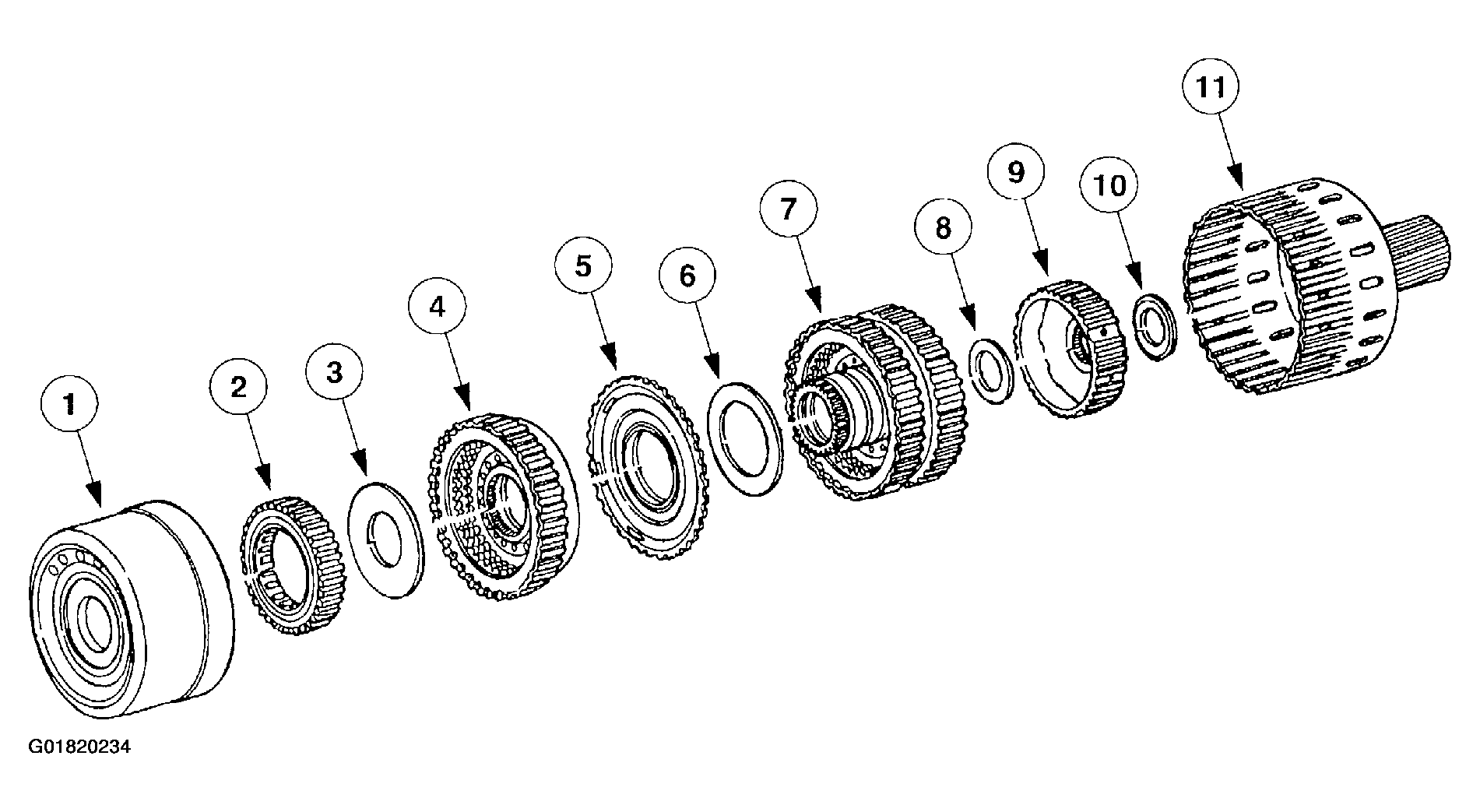

Fig 1: Sun and Shell Assembly - Component View
G01820234Courtesy of FORD MOTOR CO.

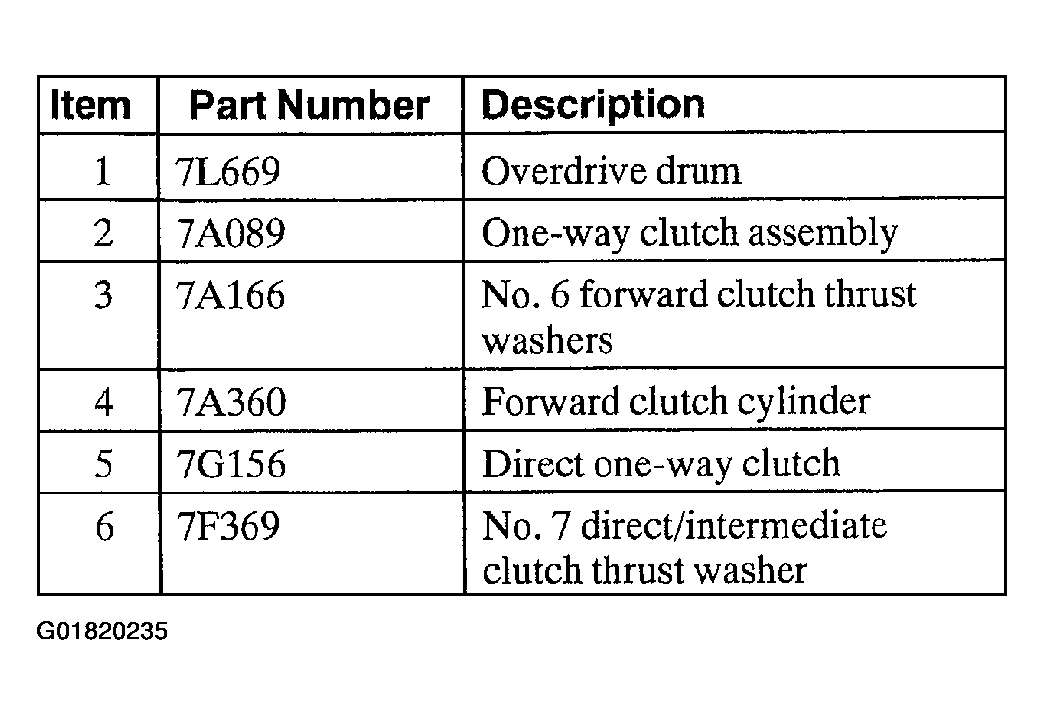

Fig 2: Sun and Shell Assembly - Component View Legend (Items 1-6)
G01820235Courtesy of FORD MOTOR CO.

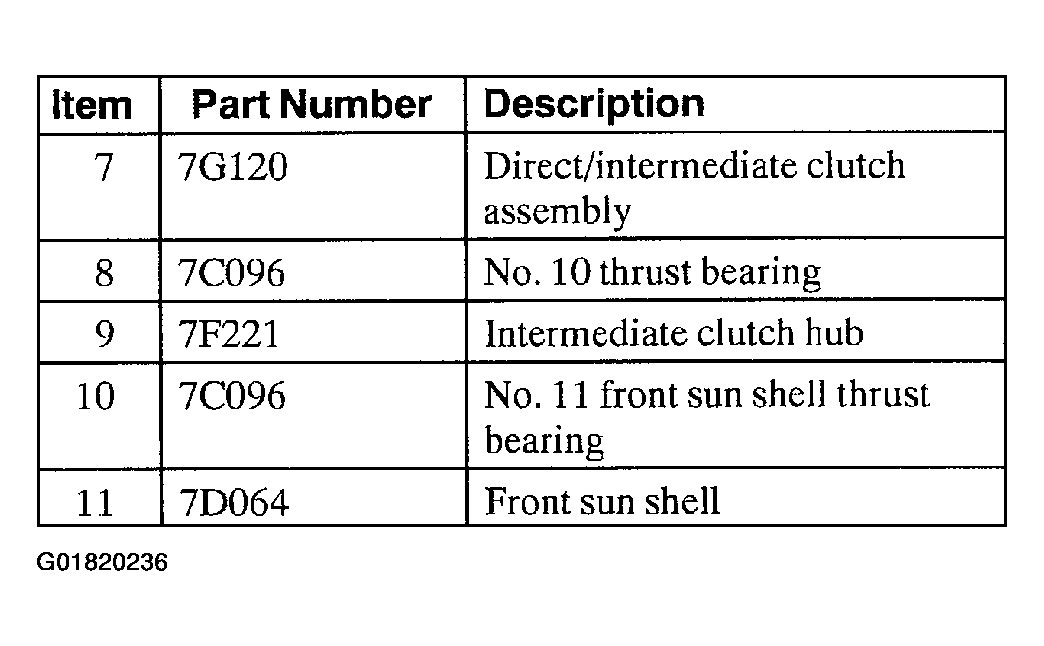

Fig 3: Sun and Shell Assembly - Component View Legend (Items 7-11)
G01820236Courtesy of FORD MOTOR CO.
