Sun and Shell Assembly - Disassembly: Disassembly

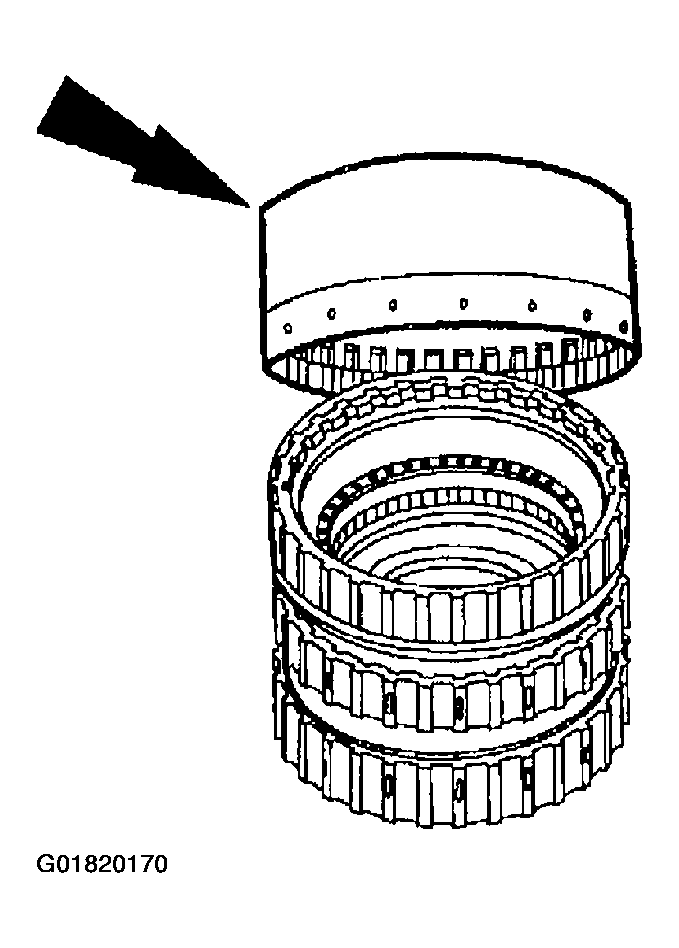

1. Remove the front sun shell.
Fig 1: Removing Front Sun Shell
Courtesy of FORD MOTOR CO.

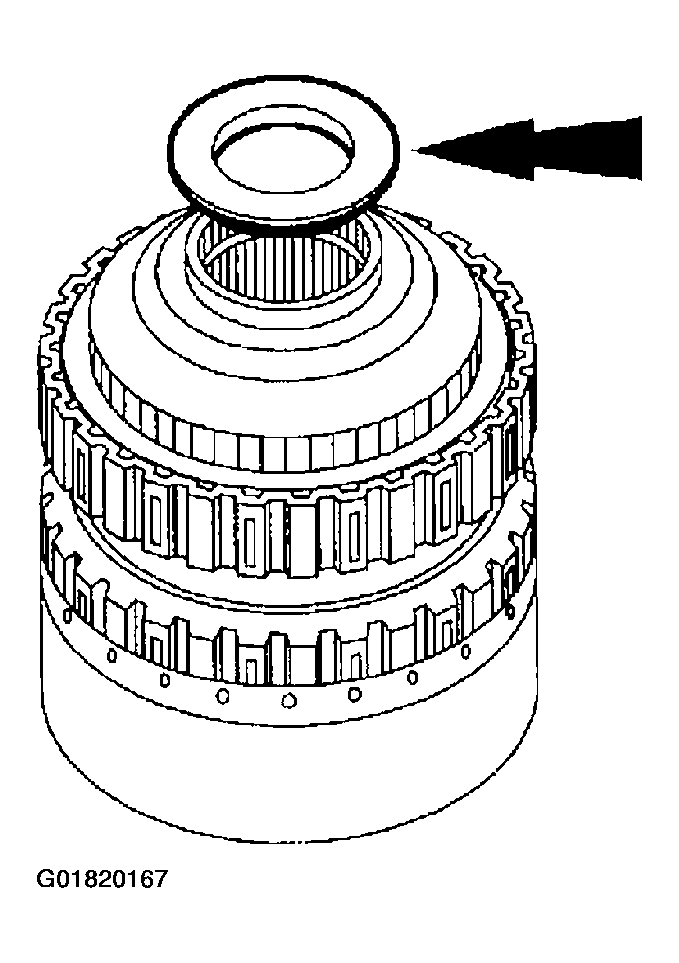

2. Remove the No. 11 needle bearing.
Fig 2: Removing Needle Bearing
Courtesy of FORD MOTOR CO.

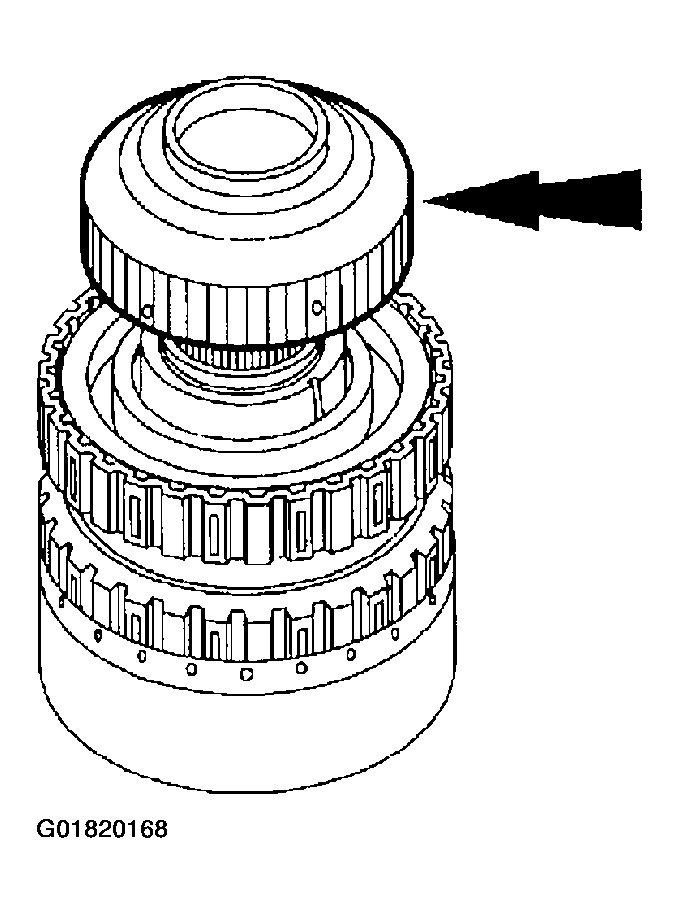

3. Remove the intermediate clutch hub.
Fig 3: Removing Intermediate Clutch Hub
Courtesy of FORD MOTOR CO.

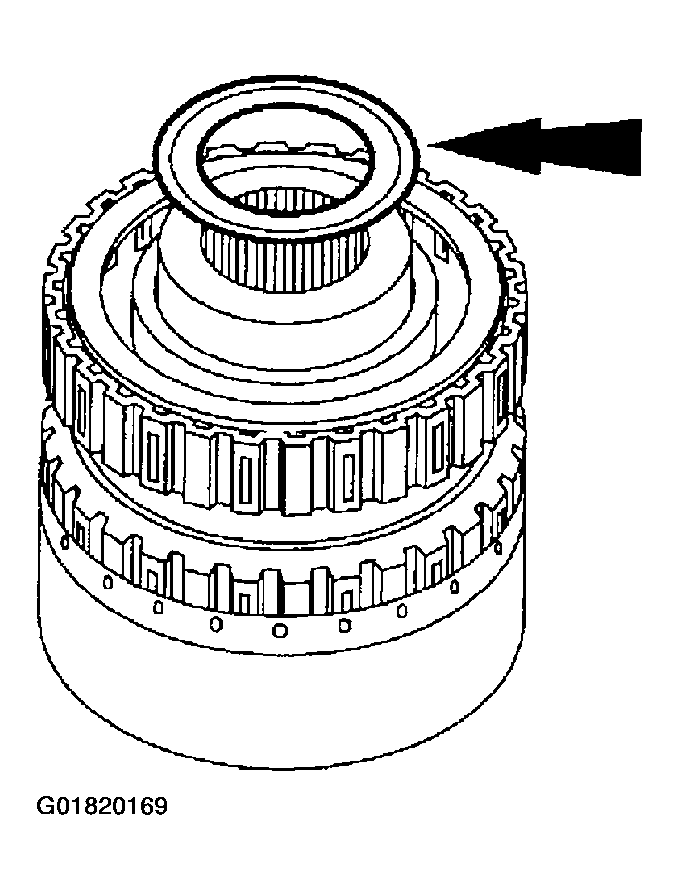

4. Remove the No. 10 thrust bearing.
Fig 4: Removing Thrust Bearing
Courtesy of FORD MOTOR CO.

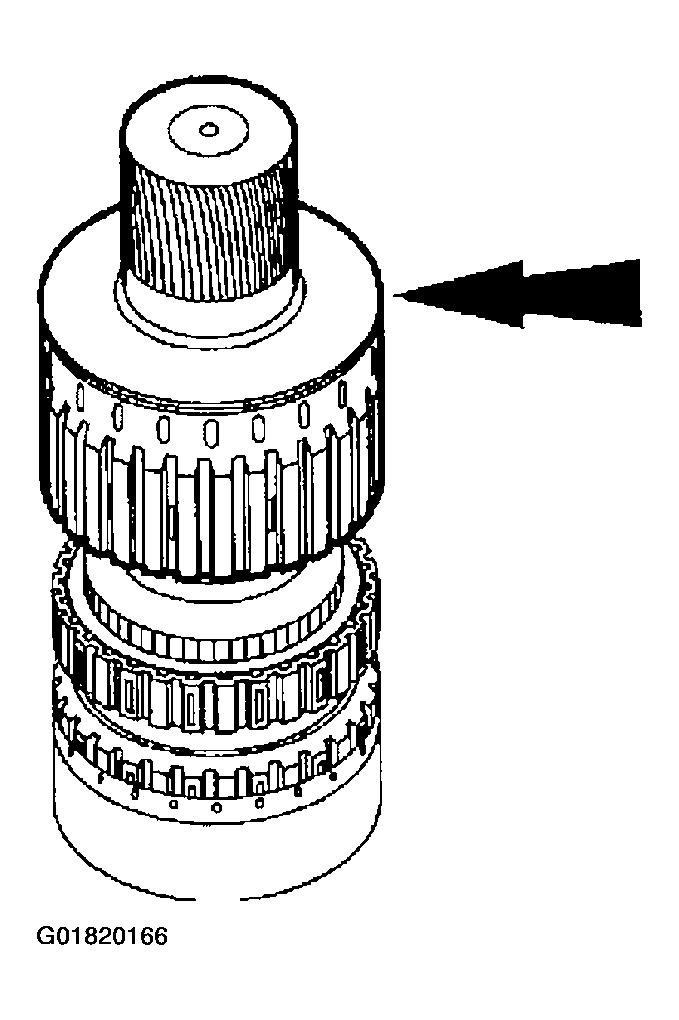

5. Remove the overdrive drum.
Fig 5: Removing Overdrive Drum
Courtesy of FORD MOTOR CO.

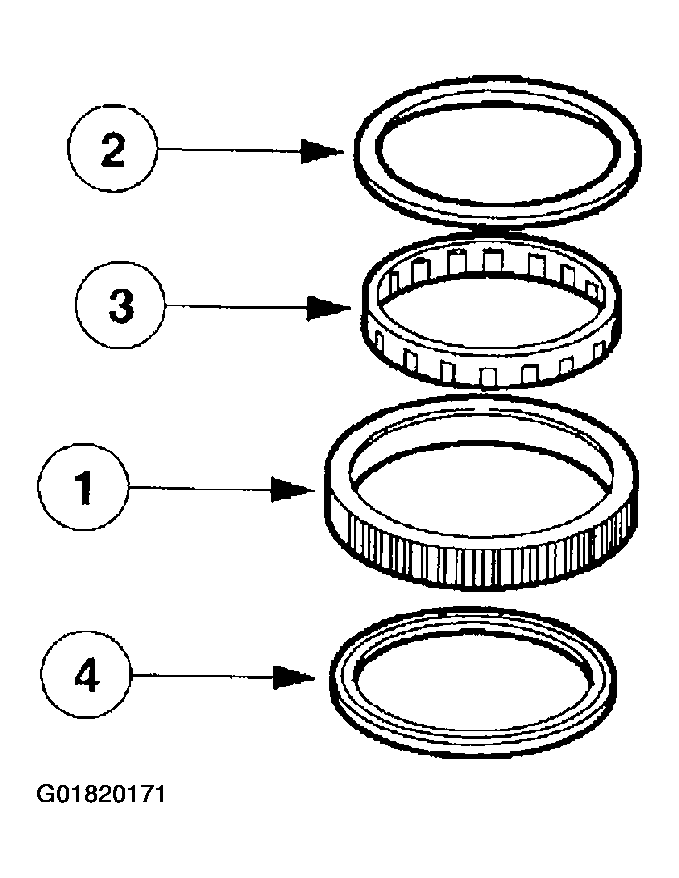

6. Remove the one-way clutch assembly.
   1. Remove the one-way clutch assembly.
   2. Remove the top cap.
   3. Remove the one-way clutch.
   4. Remove the bottom cap.

Fig 6: Removing One-Way Clutch Assembly

Courtesy of FORD MOTOR CO.
