Sun and Shell Assembly - Disassembly: Notes

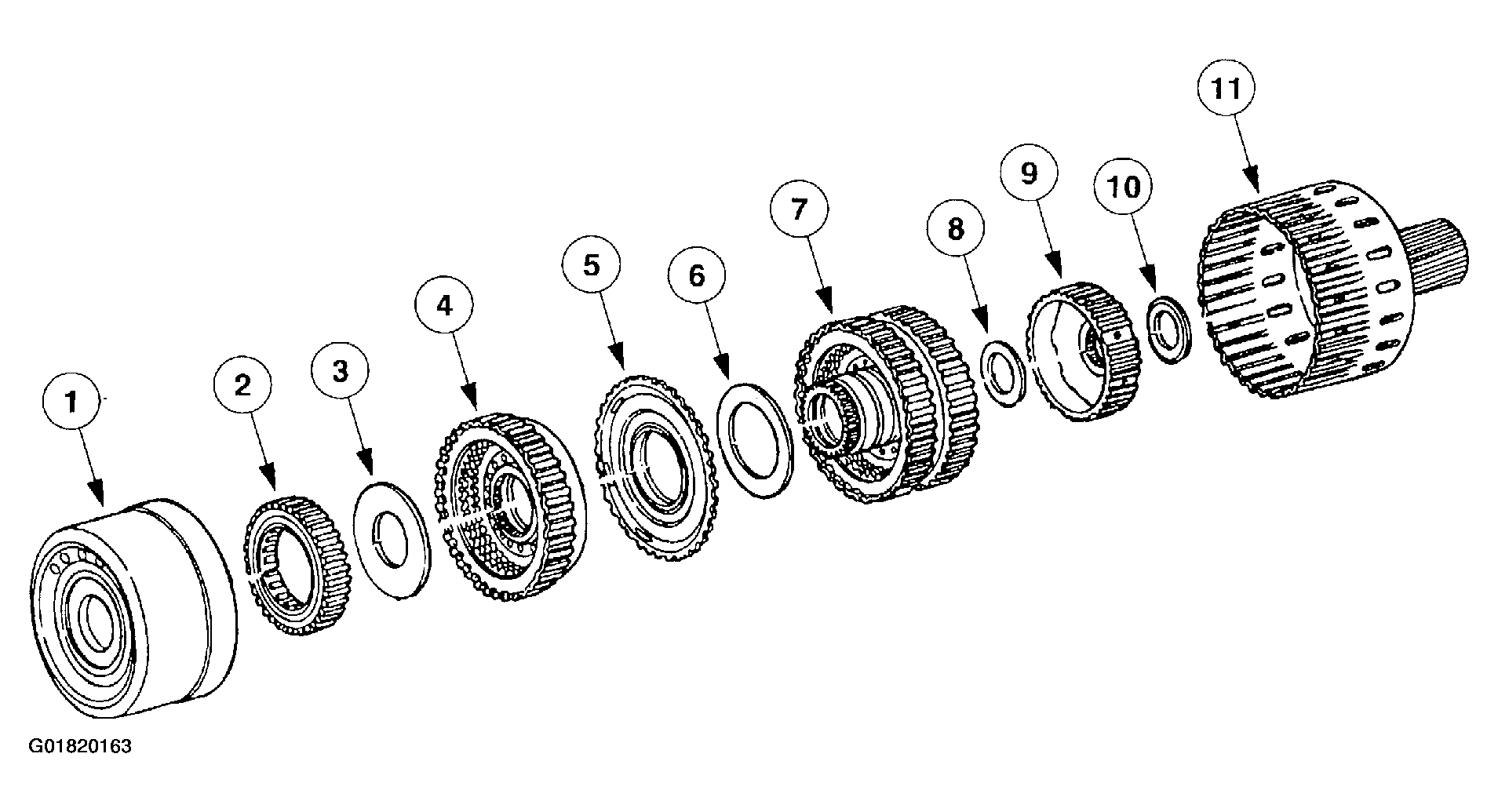

Fig 1: Sun & Shell Assembly - Component View
G01820163Courtesy of FORD MOTOR CO.

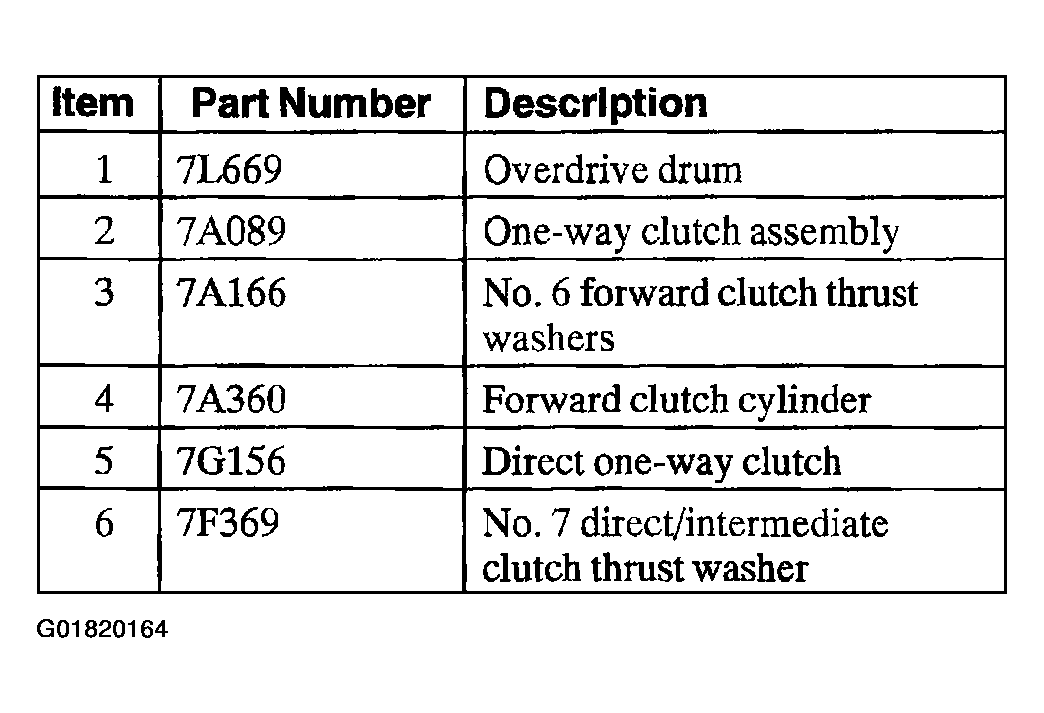

Fig 2: Sun & Shell Assembly - Component View Legend (Items 1-6)
G01820164Courtesy of FORD MOTOR CO.

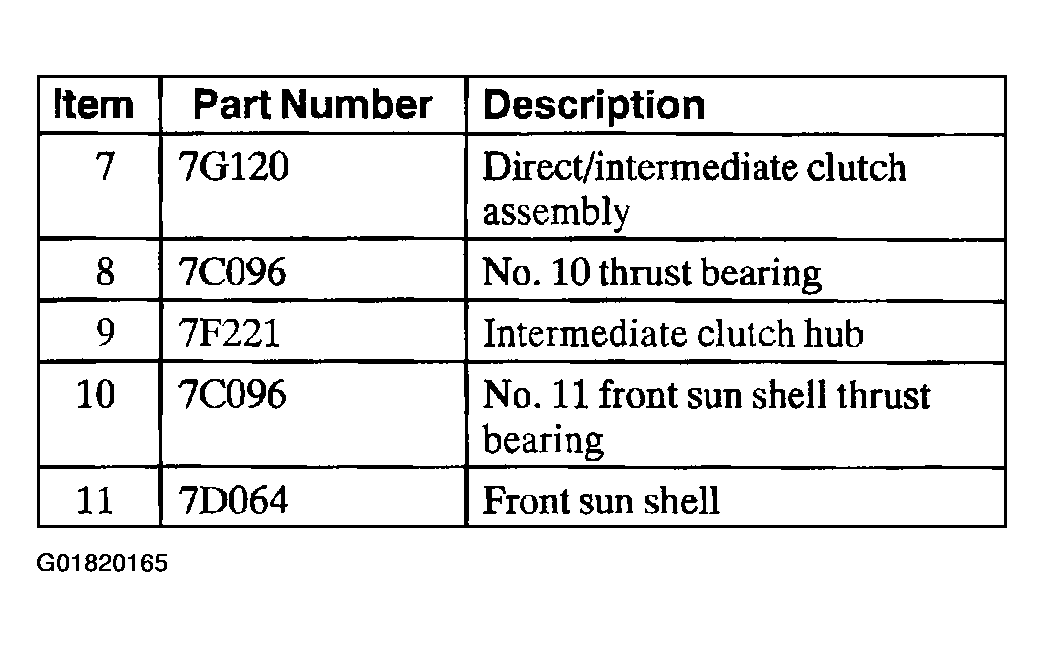

Fig 3: Sun & Shell Assembly - Component View Legend (Items 7-11)
G01820165Courtesy of FORD MOTOR CO.
