Automatic Transaxle: Specifications: Notes

Fig 1: Capacity

Courtesy of FORD MOTOR CO.

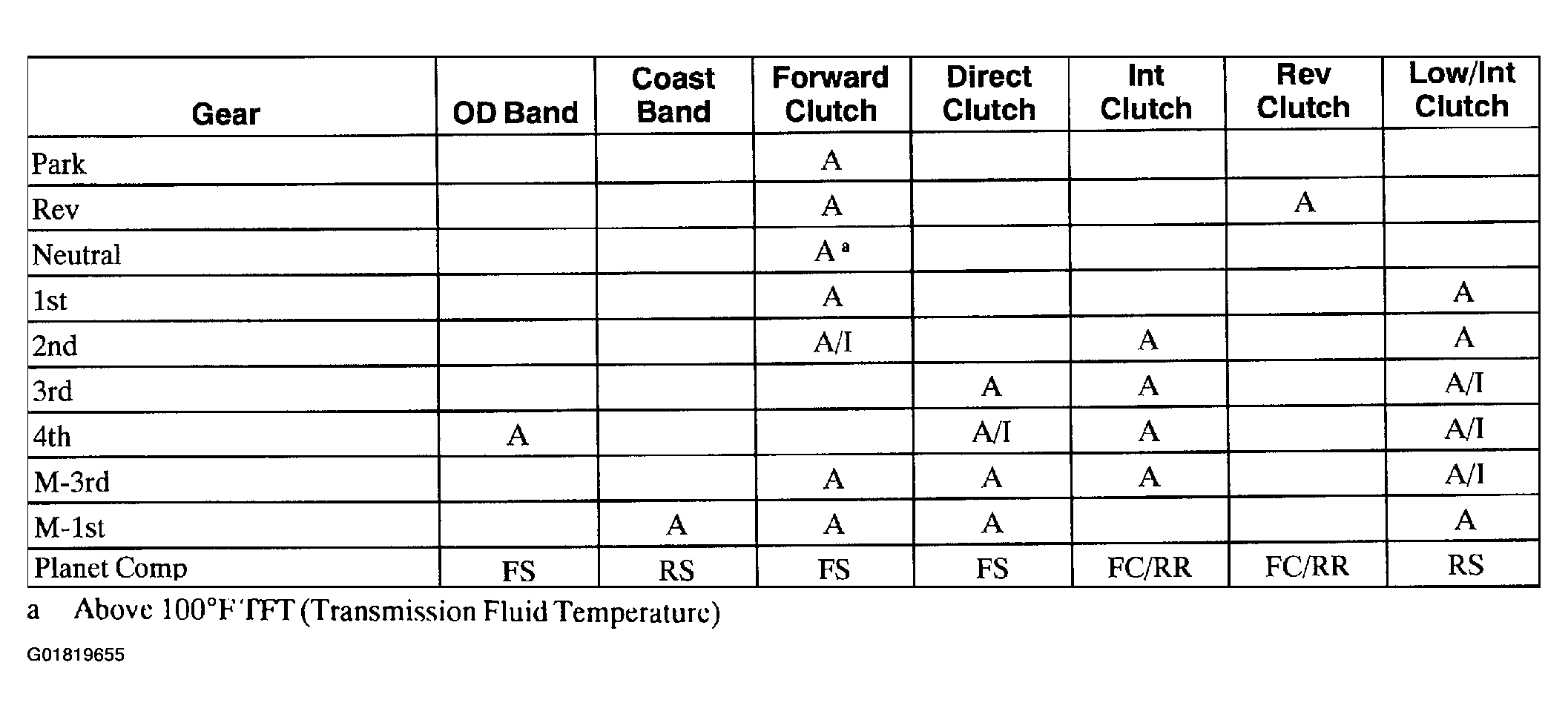

Fig 2: Band and Clutch Application Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

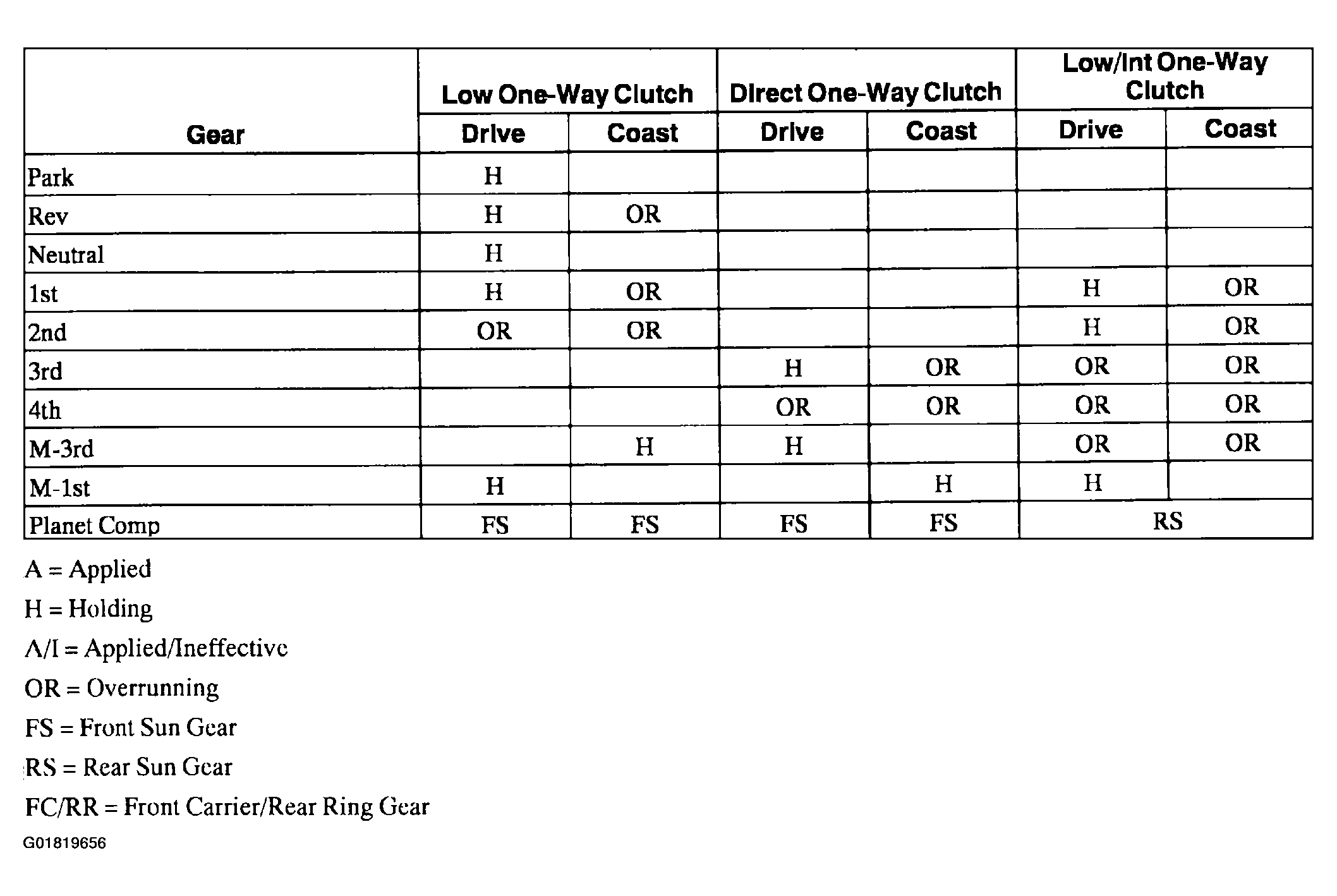

Fig 3: Band and Clutch Application Chart (2 Of 2)

Courtesy of FORD MOTOR CO.

General Specifications

Item	Specification
Multi-Purpose Grease D0AZ-19584-AA	ESB-M1C93-B
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON®V

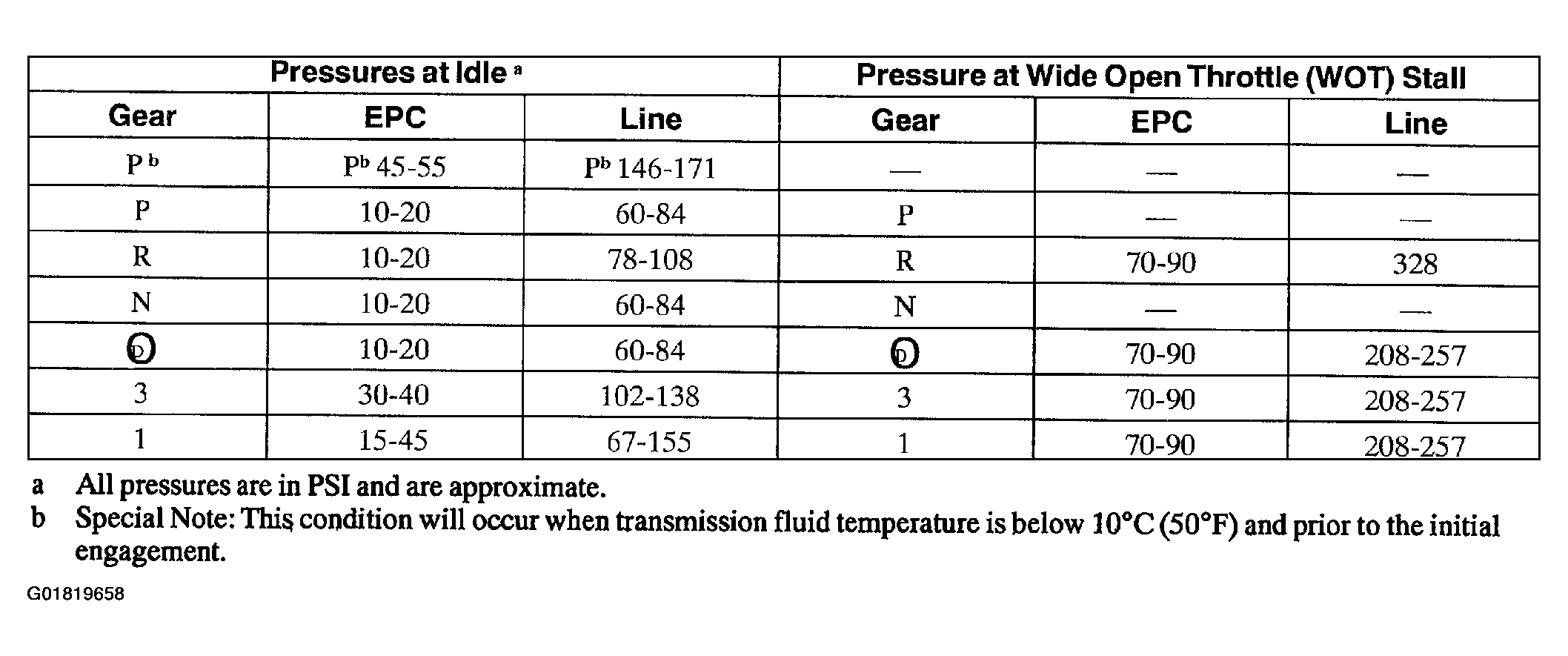

Fig 4: Other Concerns: Line Pressure Chart

Courtesy of FORD MOTOR CO.

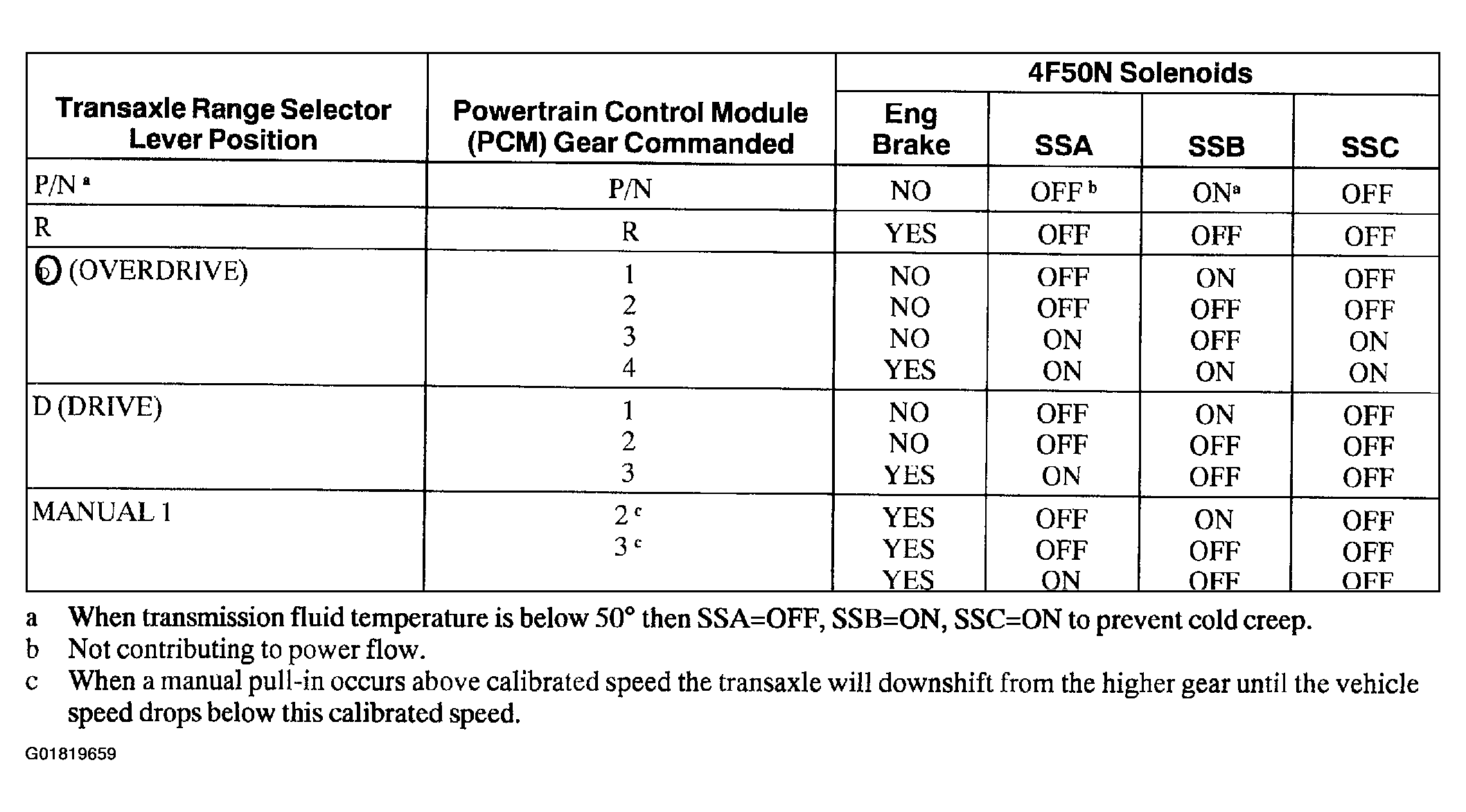

Fig 5: Shift Solenoid Operation Chart

Courtesy of FORD MOTOR CO.
