Communications Network

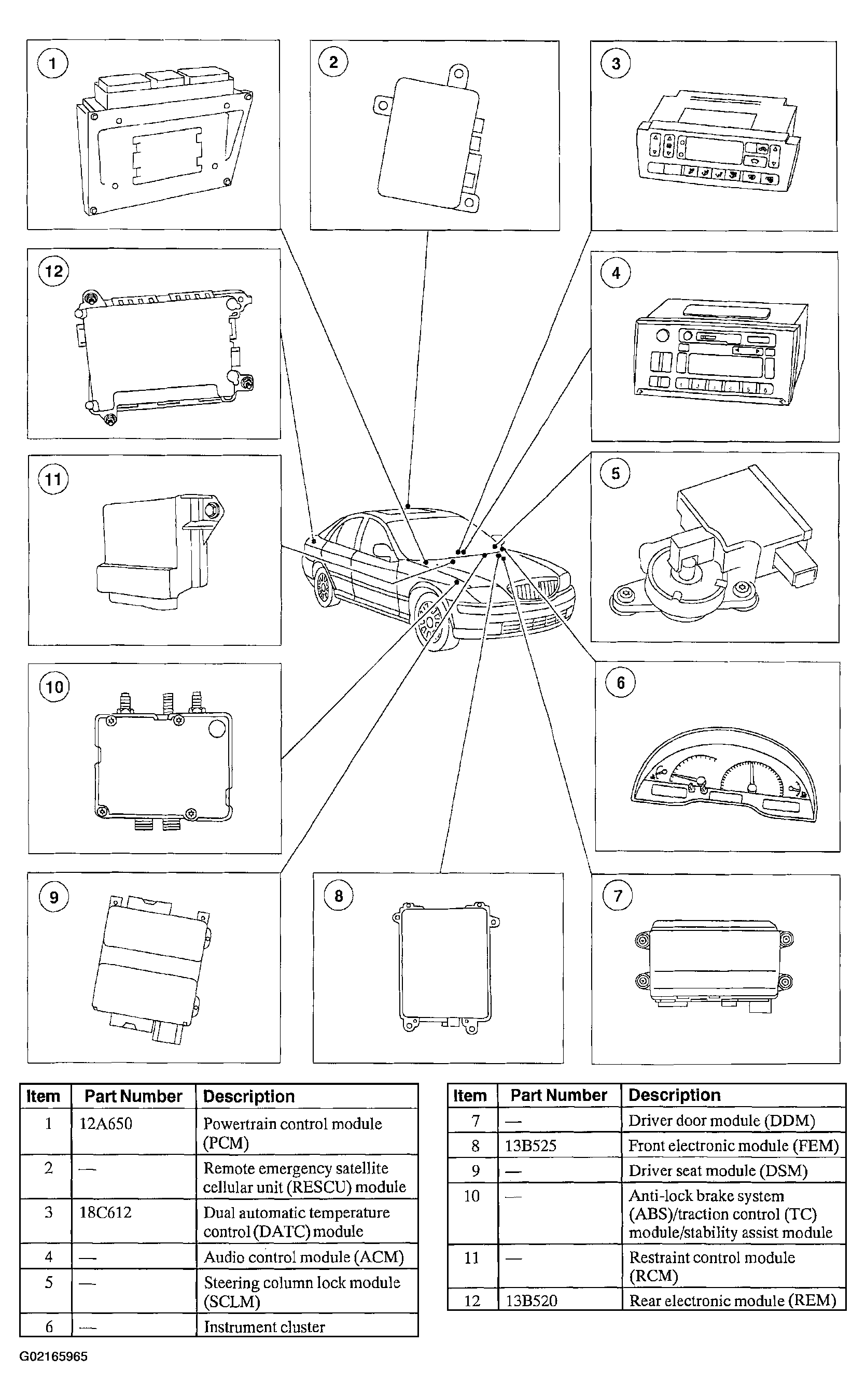

Fig 1: Identifying Communications Network Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
