Sensor - Front, 4x2: Removal

Disconnect the front wheel speed sensor electrical connector.

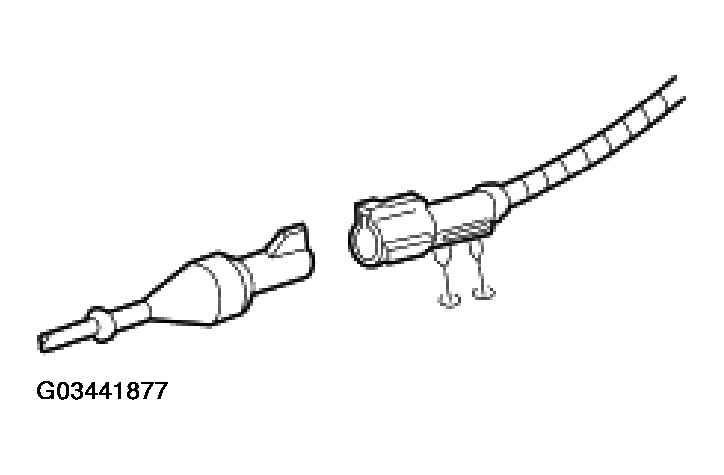

Fig 1: Disconnecting Front Wheel Speed Sensor Electrical Connector (4x2)
Courtesy of FORD MOTOR CO.
Separate the sensor cable from the brake hose clips.

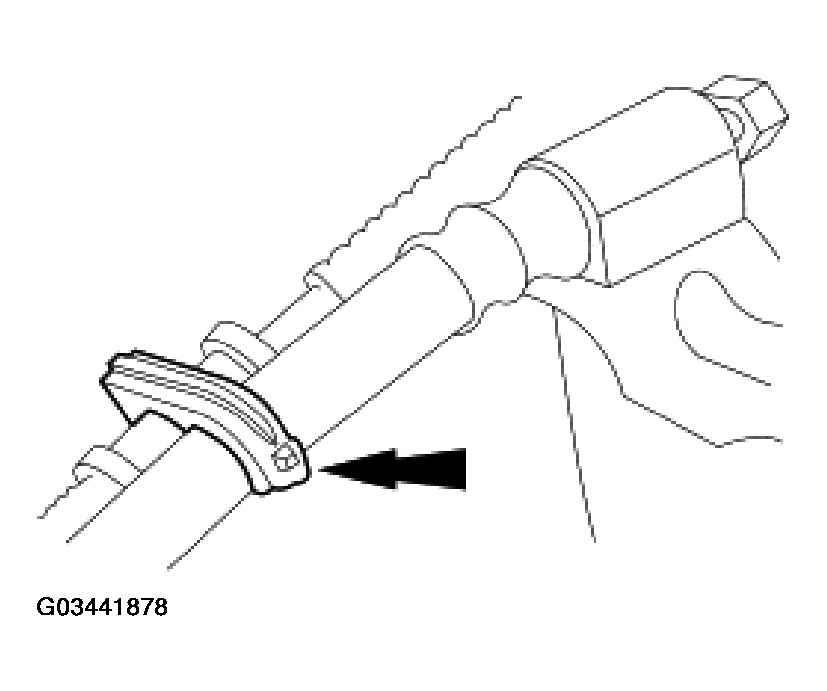

Fig 2: Separating Sensor Cable From Brake Hose Clips (4x2)
Courtesy of FORD MOTOR CO.
Remove the (A) front wheel speed sensor bolt and the (B) front wheel speed sensor.

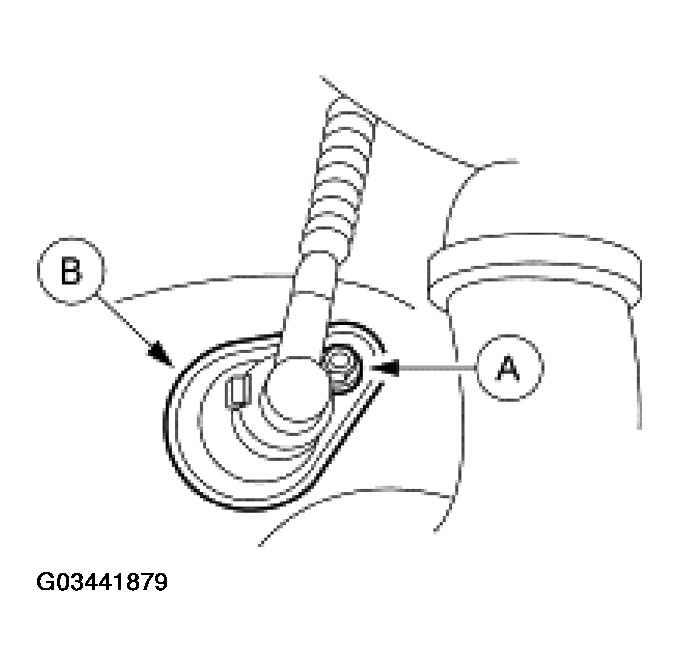

Fig 3: Removing Front Wheel Speed Sensor & Bolt (4x2)
Courtesy of FORD MOTOR CO.
