Transmission, Disassembled View

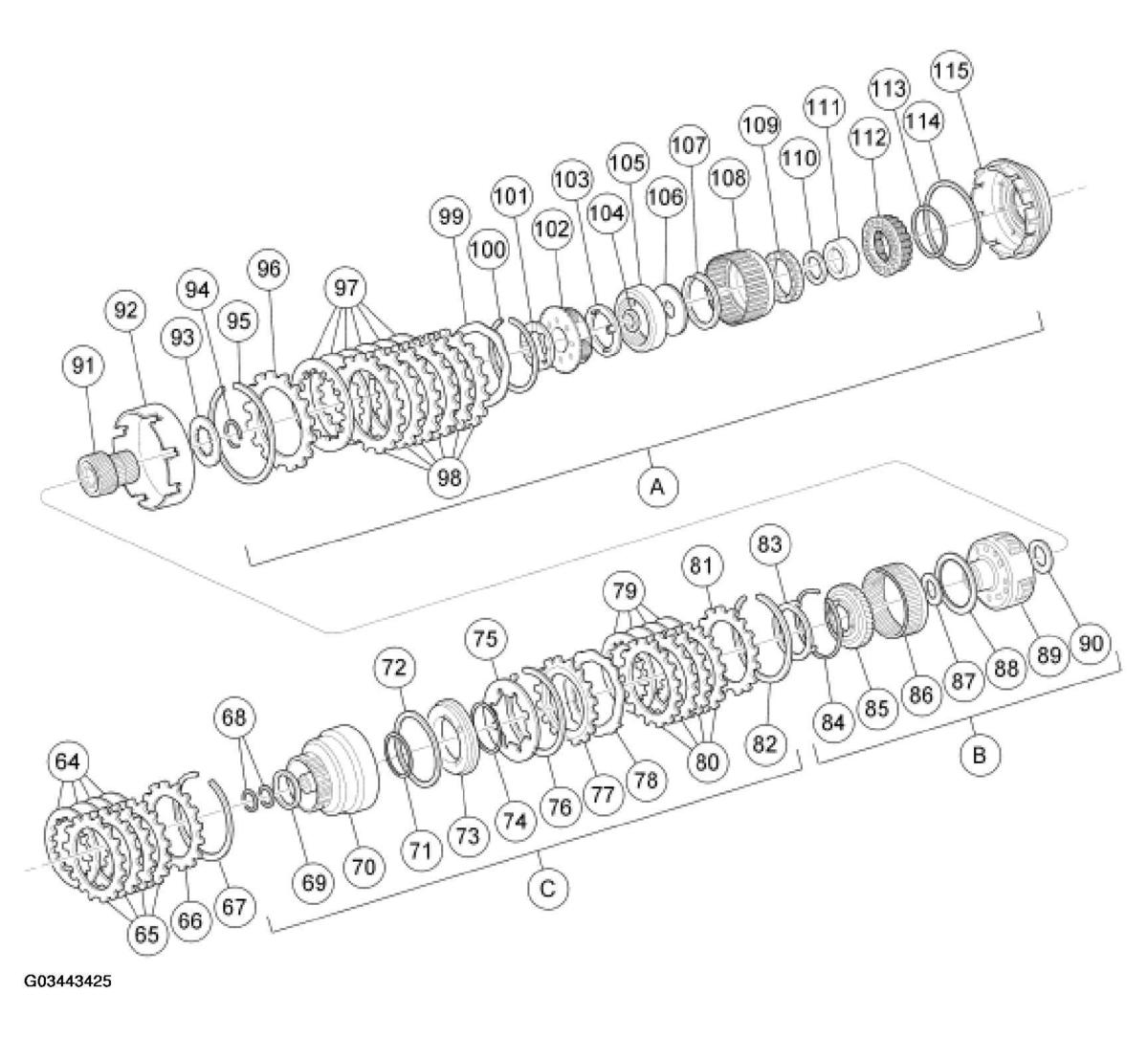

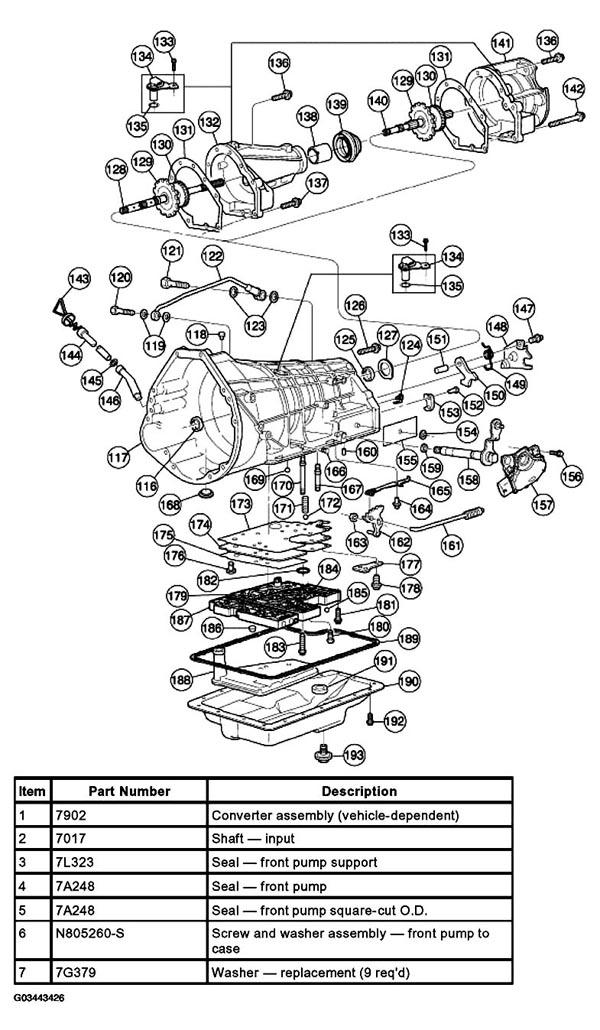

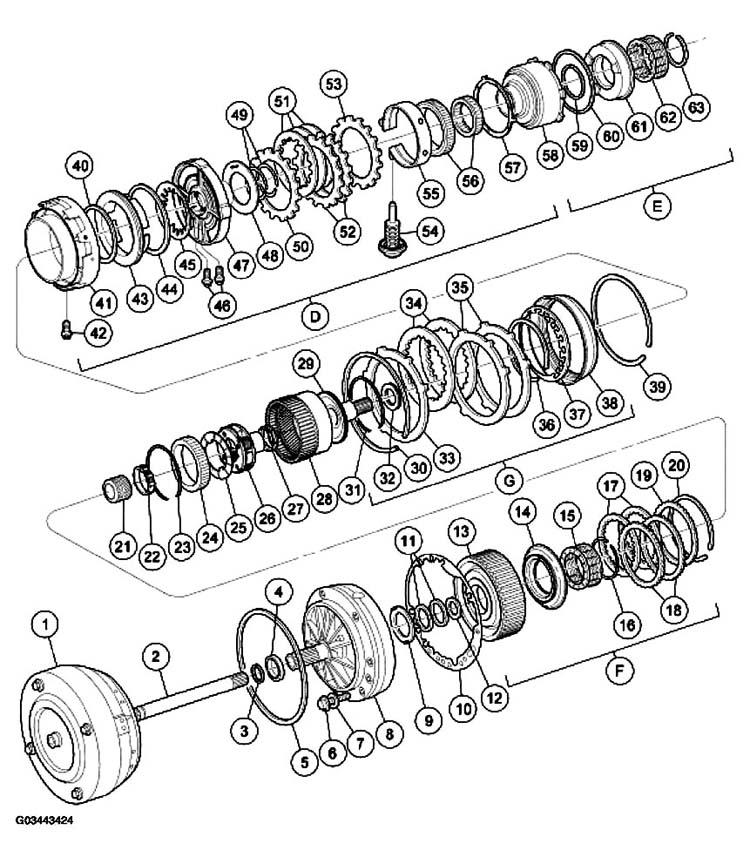

Fig 1: Disassembled View Of Automatic Transmission System (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Disassembled View Of Automatic Transmission System (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Disassembled View Of Automatic Transmission System (3 Of 3)

Courtesy of FORD MOTOR CO.

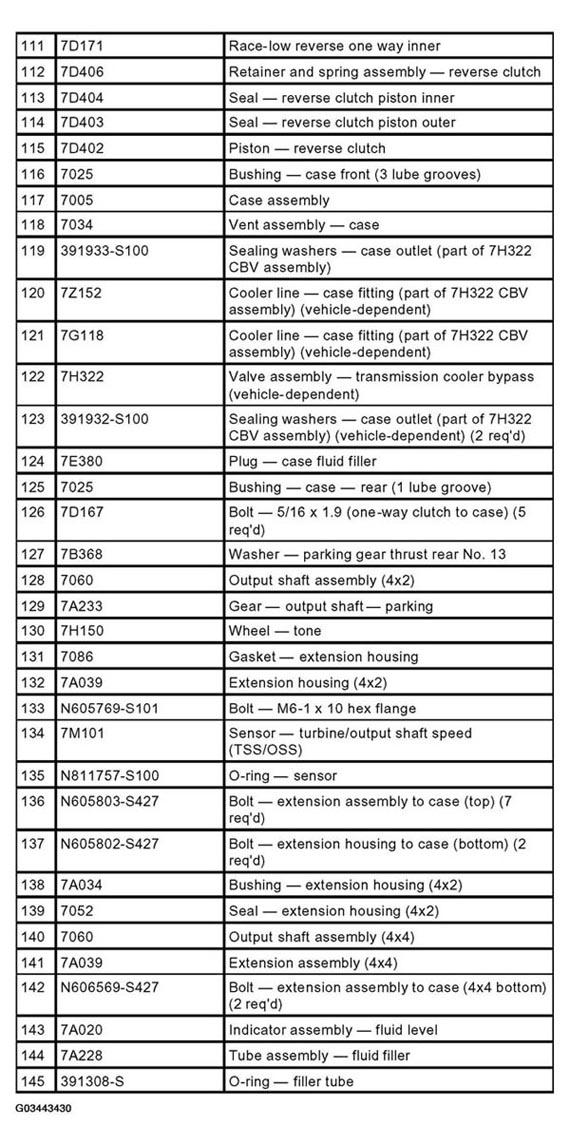

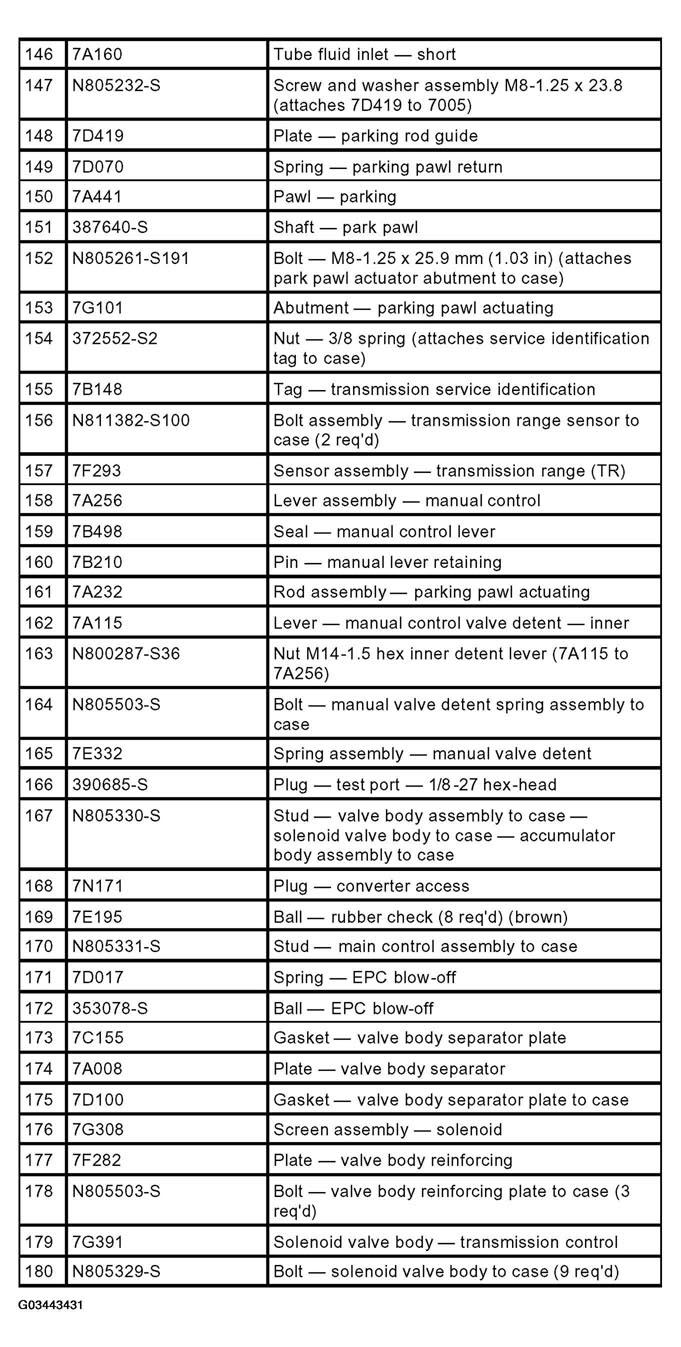

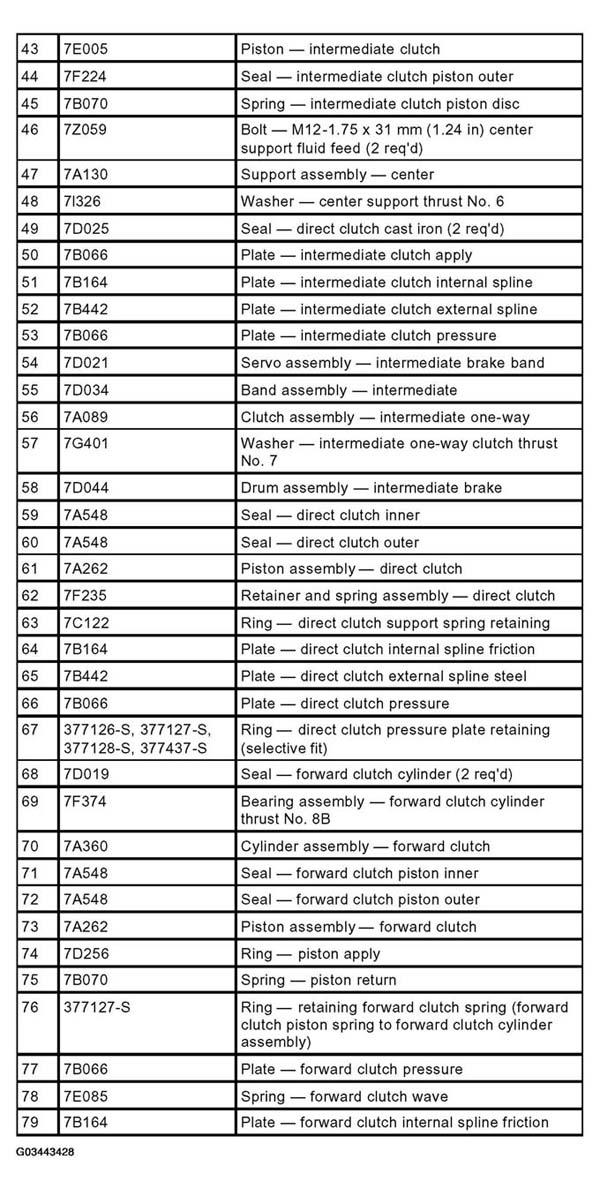

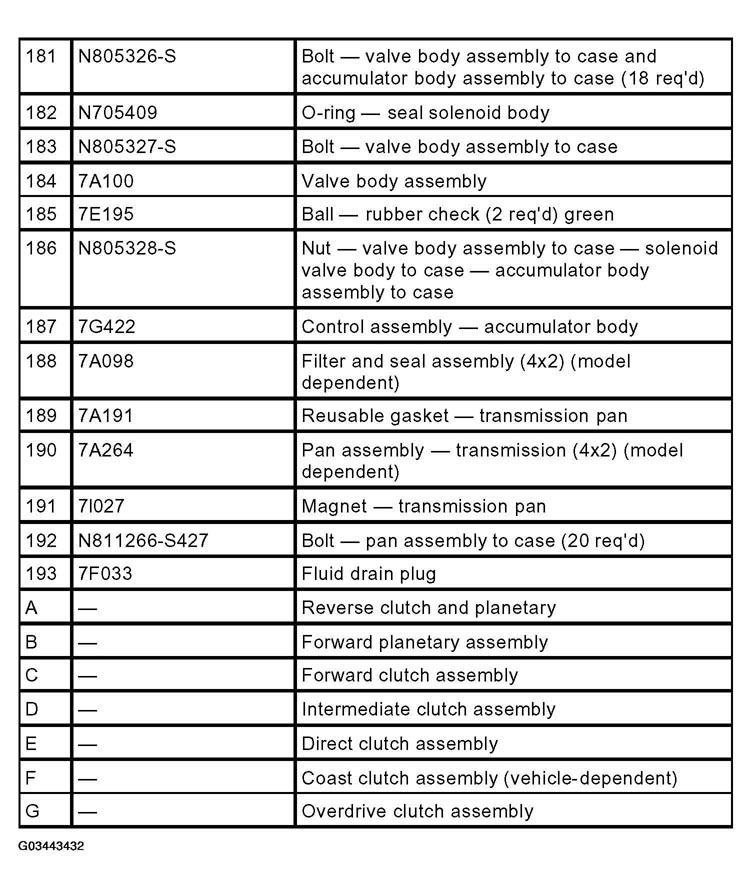

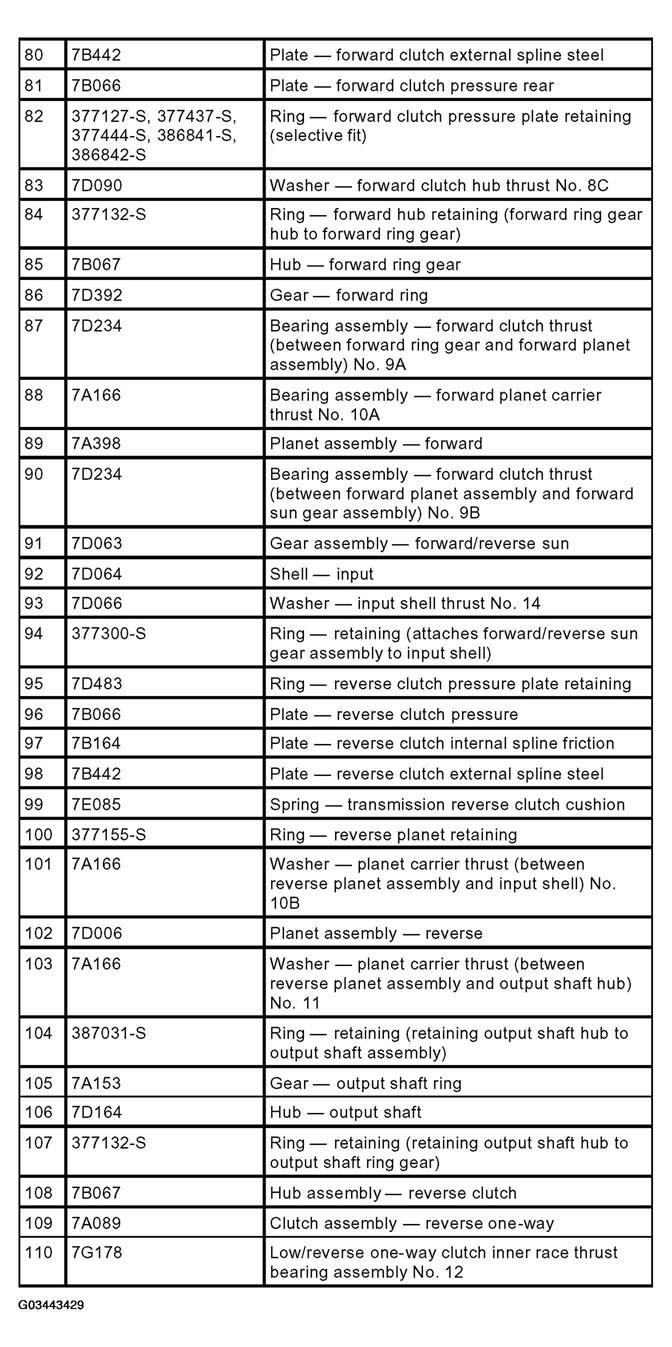

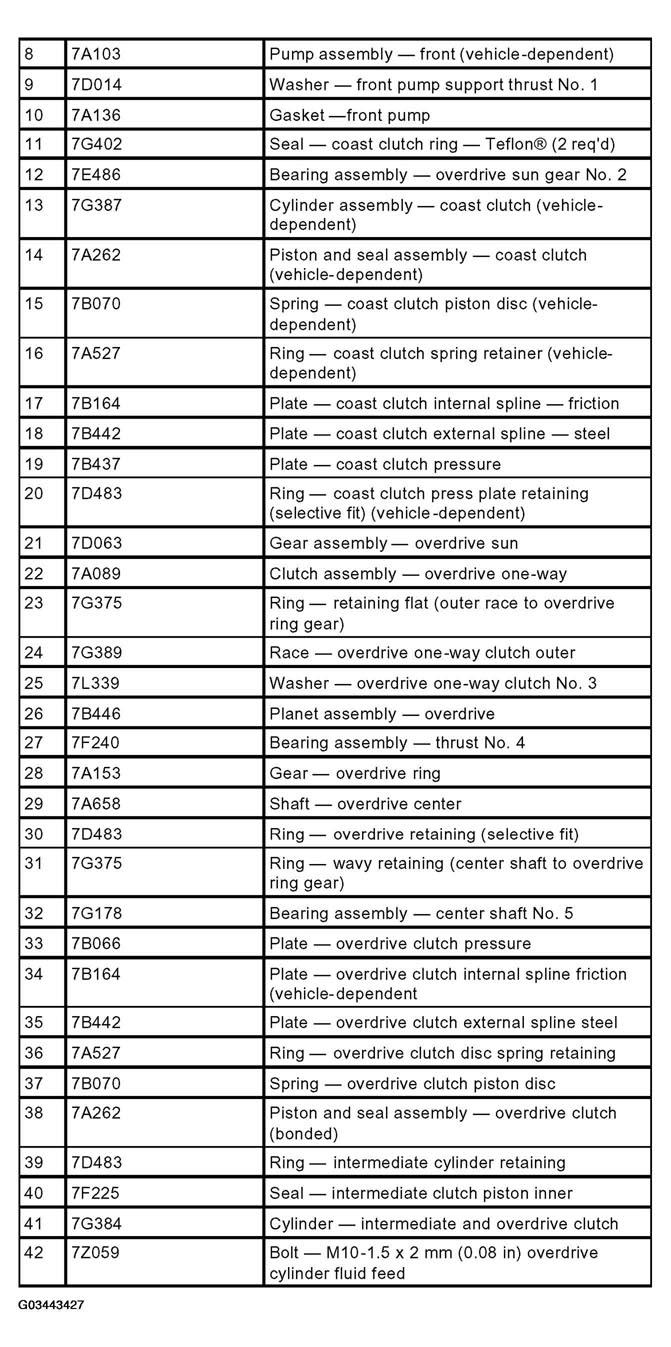

Fig 4: Automatic Transmission System Parts Description (1 Of 6)

Courtesy of FORD MOTOR CO.

Fig 5: Automatic Transmission System Parts Description (2 Of 6)

Courtesy of FORD MOTOR CO.

Fig 6: Automatic Transmission System Parts Description (3 Of 6)

Courtesy of FORD MOTOR CO.

Fig 7: Automatic Transmission System Parts Description (4 Of 6)

Courtesy of FORD MOTOR CO.

Fig 8: Automatic Transmission System Parts Description (5 Of 6)

Courtesy of FORD MOTOR CO.

Fig 9: Automatic Transmission System Parts Description (6 Of 6)

Courtesy of FORD MOTOR CO.
