Overdrive System

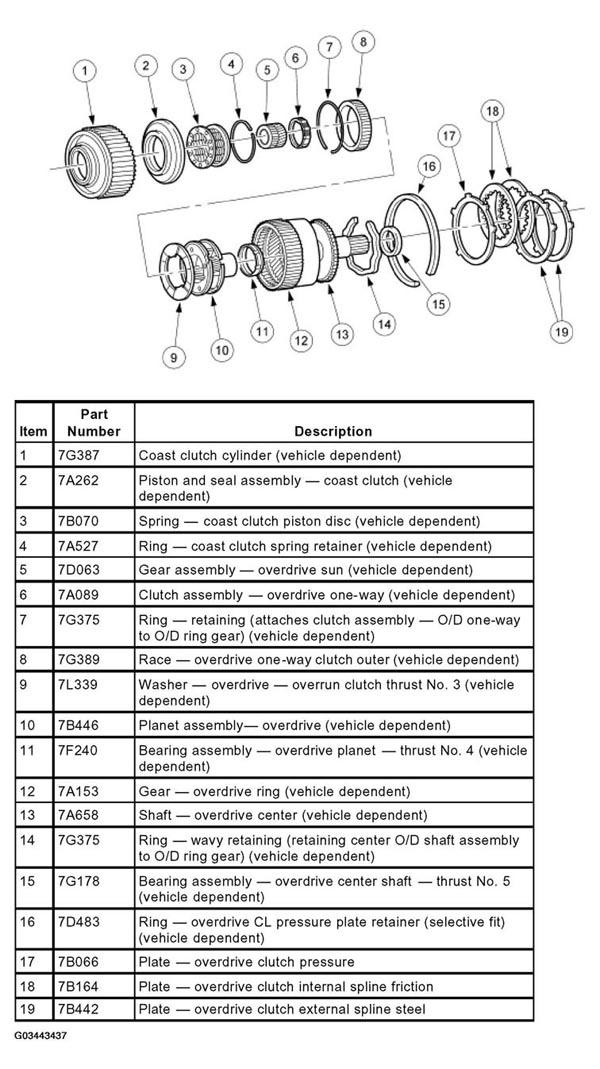

The overdrive planetary system consists of the overdrive planet assembly, overdrive sun gear, overdrive ring gear, coast clutch cylinder, overdrive one-way clutch assembly and the center shaft, as shown in the following illustration. The overdrive planet assembly is splined to the input shaft. The overdrive sun gear is centered by a bushing on the input shaft and held in place laterally by needle bearings on the reactor support and the overdrive planet assembly. The overdrive sun gear is splined to the coast clutch cylinder, which in turn is splined to the overdrive one-way clutch inner race.
The outer race of the one-way clutch is splined to the overdrive ring gear, which is splined to the center shaft. The center shaft is centered by the forward planetary assembly and is laterally held by needle bearings on the center support and the overdrive planet assembly. The center shaft is splined into the forward clutch cylinder.
The coast clutch is splined between the coast clutch cylinder and the overdrive ring gear. The coast clutch is activated to carry out engine braking in MANUAL 1, MANUAL 2 and third gear with the transmission control switch engaged.
The overdrive clutch steel plates are splined to the case, the friction plates are splined to the coast clutch cylinder. The overdrive clutch holds the coast clutch cylinder and, in turn, the overdrive sun gear, to permit the planet assembly to overdrive the ring gear.
