Rear Case Bushings: Disassembly

    NOTE: Remove any minor nicks or burrs using a fine oil stone. Remove the case bushings only if they show signs of excessive wear or scoring.
  1. Inspect the case bushing bores for nicks or burrs.
    2. CAUTION: Be careful not to damage the case bore while removing the bushing.
    NOTE: Always install both bushings when either bushing is installed. However, remove and install only one bushing at a time. Use the other bushing in the case to help align the tool and the new bushing during installation.

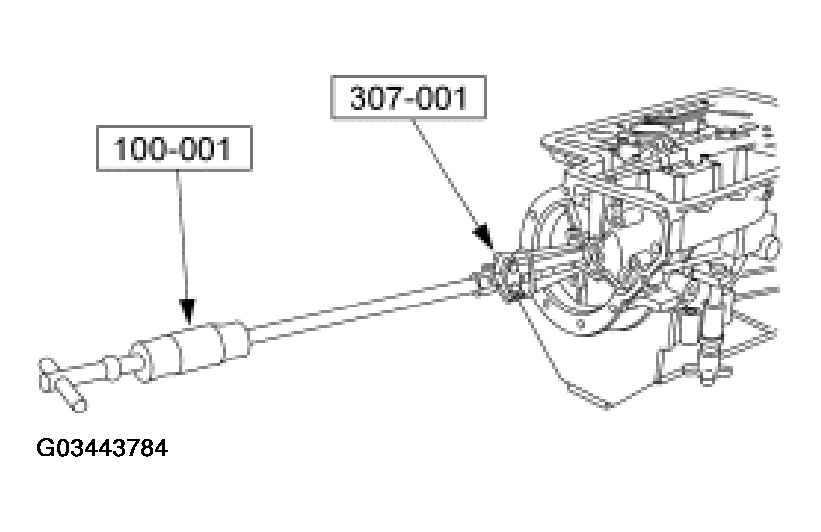

    Fig 1: Removing Rear Case Bushing
    G03443784Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the rear case bushing.
