Reverse Planet Assembly: Disassembly

NOTE: Individual parts of the planet assemblies are not repairable.

Remove the No. 11 rear reverse planet thrust washer.

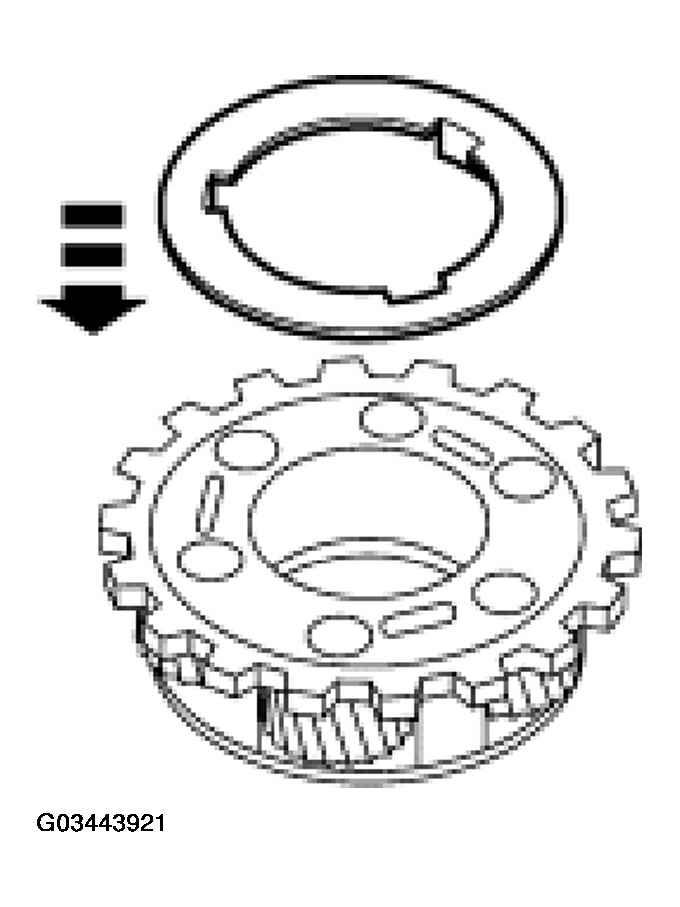

Fig 1: Removing No. 11 Rear Reverse Planet Thrust Washer
Courtesy of FORD MOTOR CO.
Remove the No. 10B front reverse planet thrust washer.
- The pins and shafts in the planet assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exists.
- Inspect the pinion gears for damaged or excessively worn teeth.
- Check for free rotation of the pinion gears.
- Check for damage in the overdrive planet assembly.

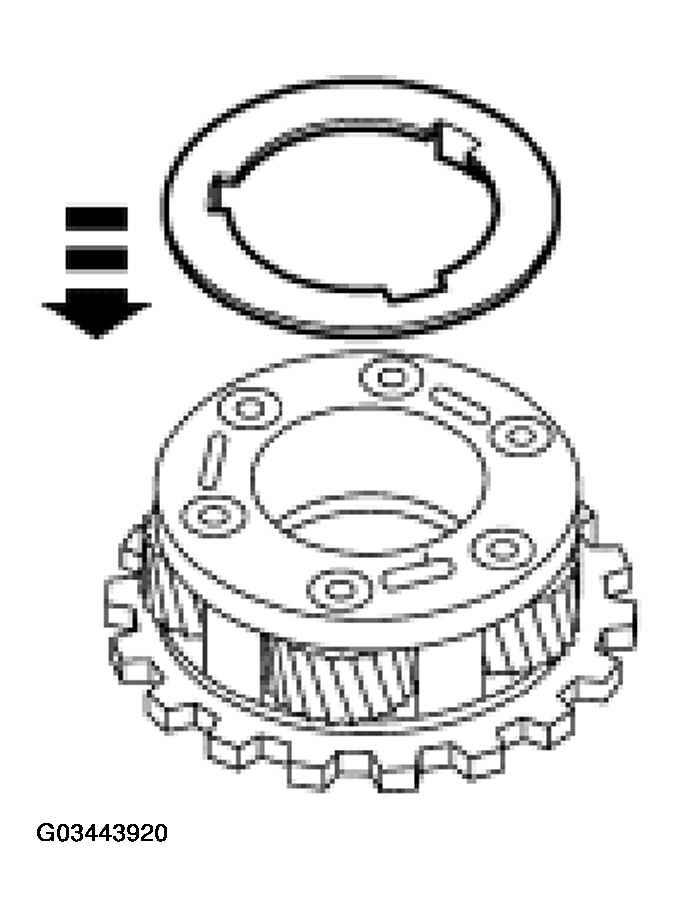

Fig 2: Removing No. 10B Front Reverse Planet Thrust Washer
Courtesy of FORD MOTOR CO.
