Digital Transmission Range (TR) Sensor: Installation

  1. Install the digital transmission range (TR) sensor.
    1. Install digital transmission range (TR) sensor.
    2. Loosely install the bolts.

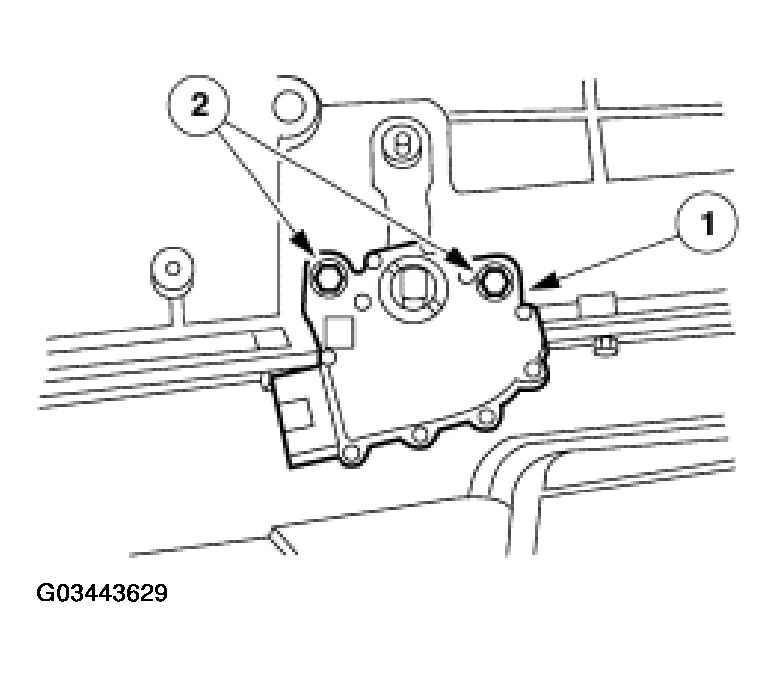

    Fig 1: Installing Digital Transmission Range (TR) Sensor & Bolts
    G03443629Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that the manual control lever is in the neutral position.

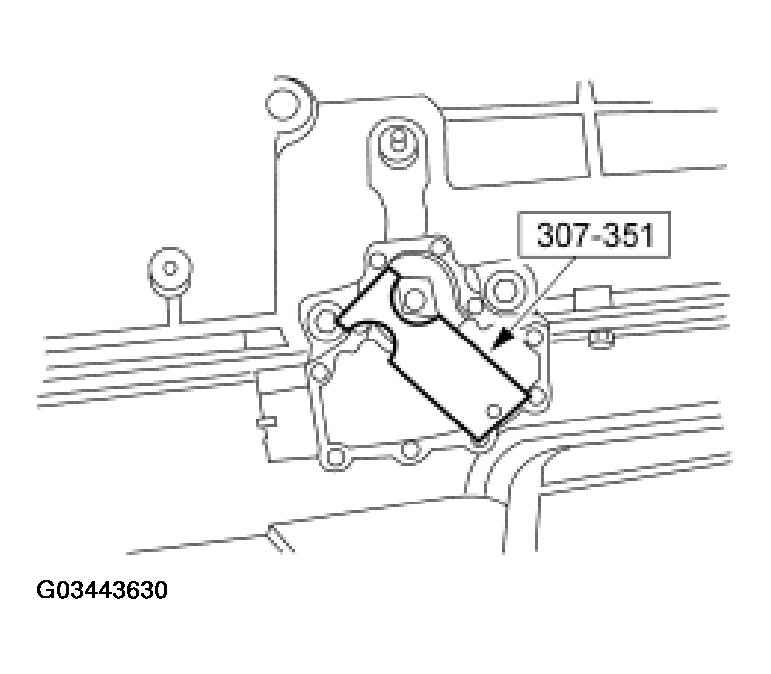

    Fig 2: Aligning Digital Transmission Range (TR) Sensor
    G03443630Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor.
  3. Tighten the bolts.

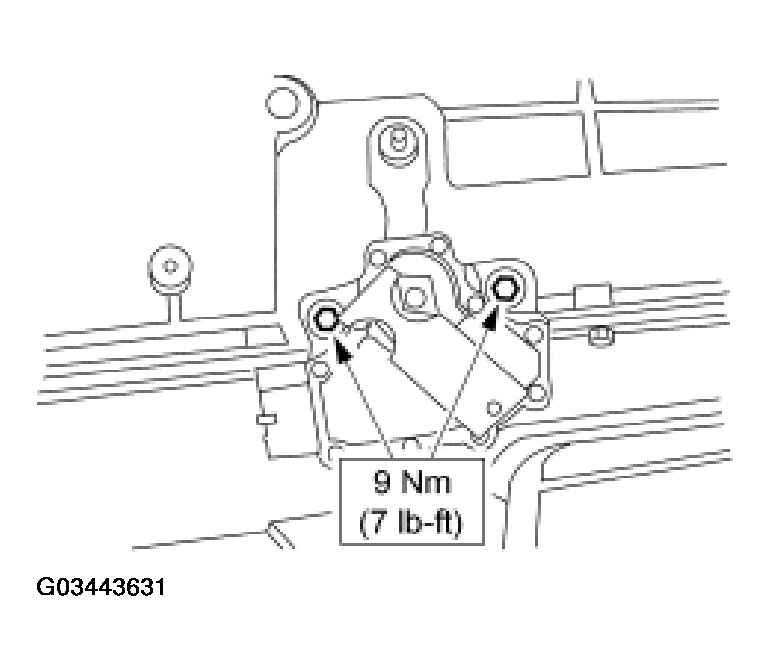

    Fig 3: Tightening Digital Transmission Range (TR) Sensor Bolts
    G03443631Courtesy of FORD MOTOR CO.
  4. Reconnect the shift cable at the manual control lever.

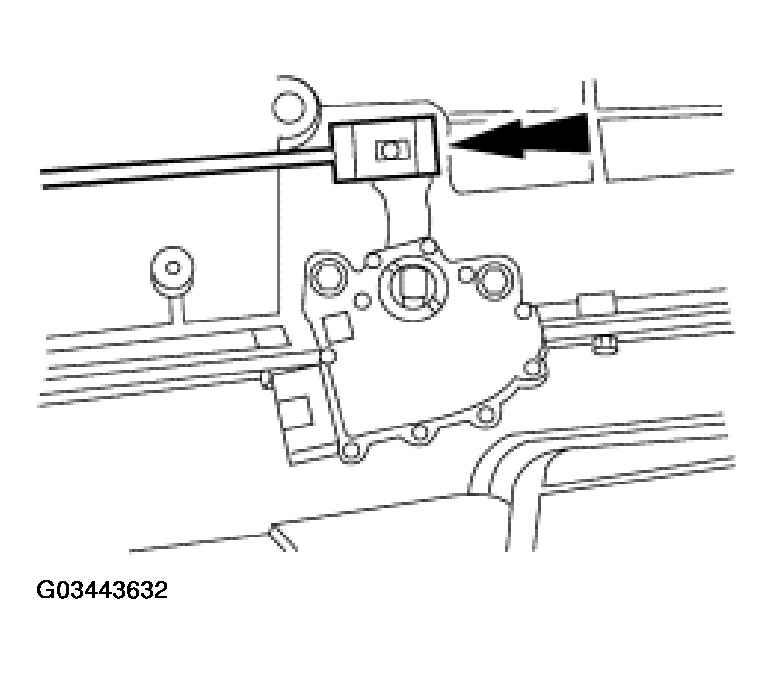

    Fig 4: Connecting Shift Cable To Manual Control Lever
    G03443632Courtesy of FORD MOTOR CO.
  5. Reconnect the connector.

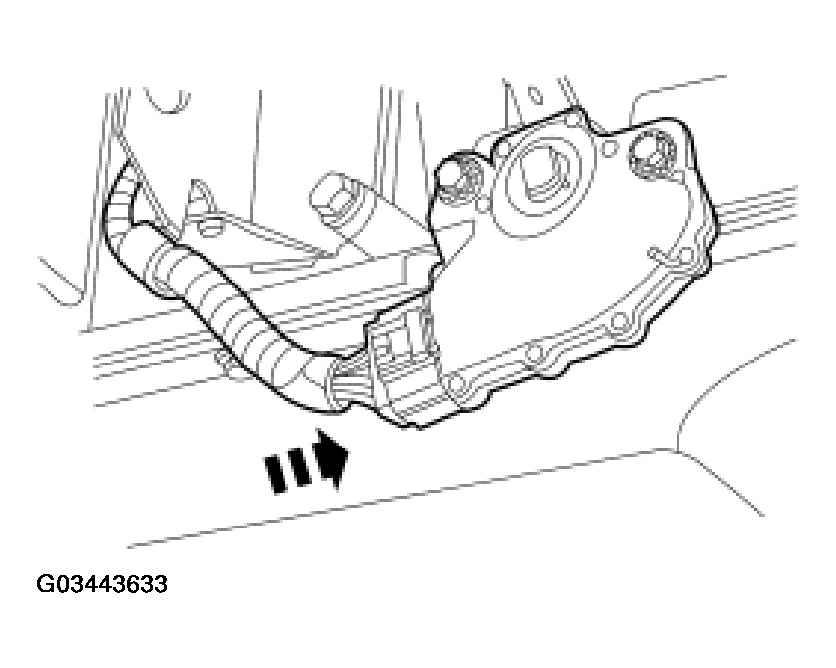

    Fig 5: Connecting Connector
    G03443633Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
