Park System: Removal

NOTE: For internal park mechanism service, refer to MANUAL CONTROL LEVER SHAFT AND SEAL in this article.

Remove the extension housing (7A039) and the extension housing gasket; refer to EXTENSION HOUSING SEAL AND BUSHING in this article.
Remove the parking rod guide plate.
1. Remove the bolts.
2. Remove the parking rod guide plate.

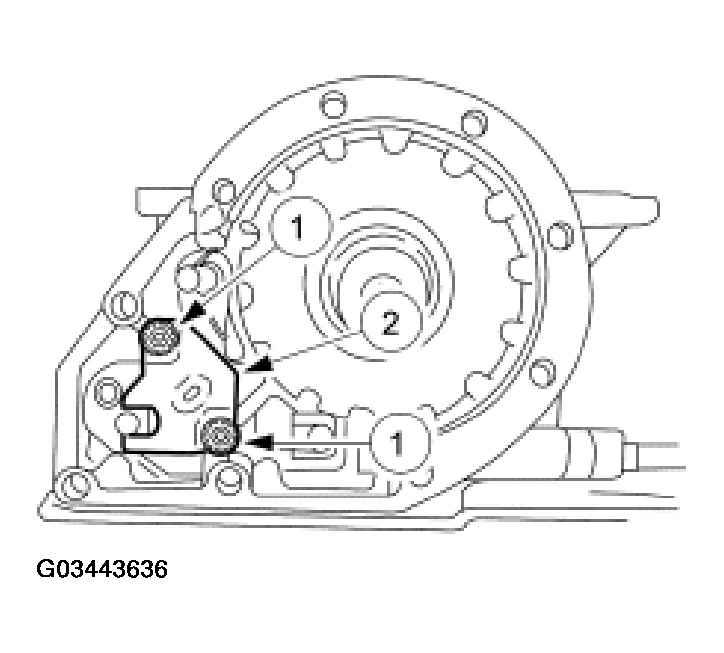

Fig 1: Removing Parking Rod Guide Plate & Bolts
Courtesy of FORD MOTOR CO.

NOTE: If the park gear replacement is required; refer to OUTPUT SHAFT - CHECK in this article.

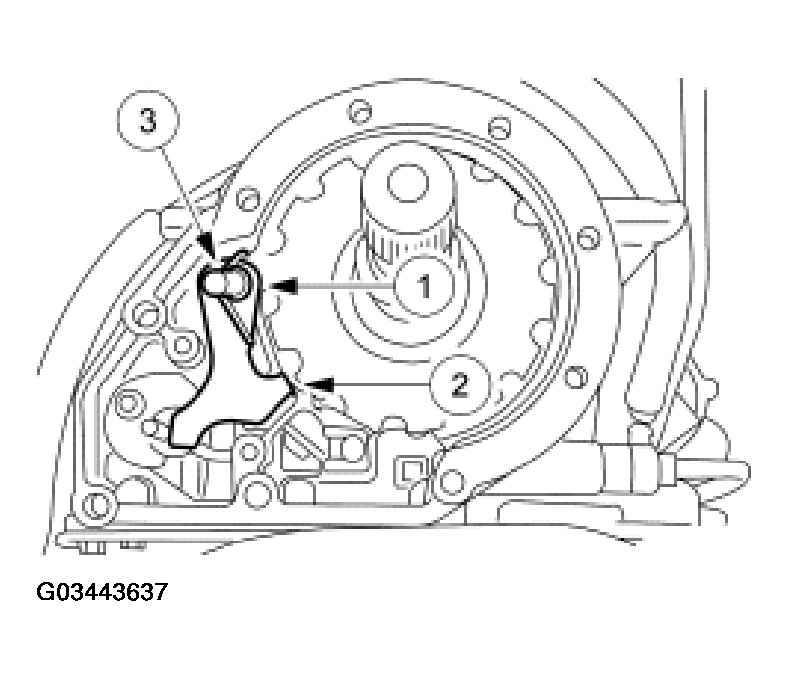

Fig 2: Removing Park Pawl, Shaft & Return Spring

Courtesy of FORD MOTOR CO.

Remove the park pawl shaft.
1. Remove the park pawl return spring.
2. Remove the park pawl.
3. Remove the park pawl shaft.
