Pinpoint Test I: The Traction Control Cannot Be Disabled/Is Inoperative

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

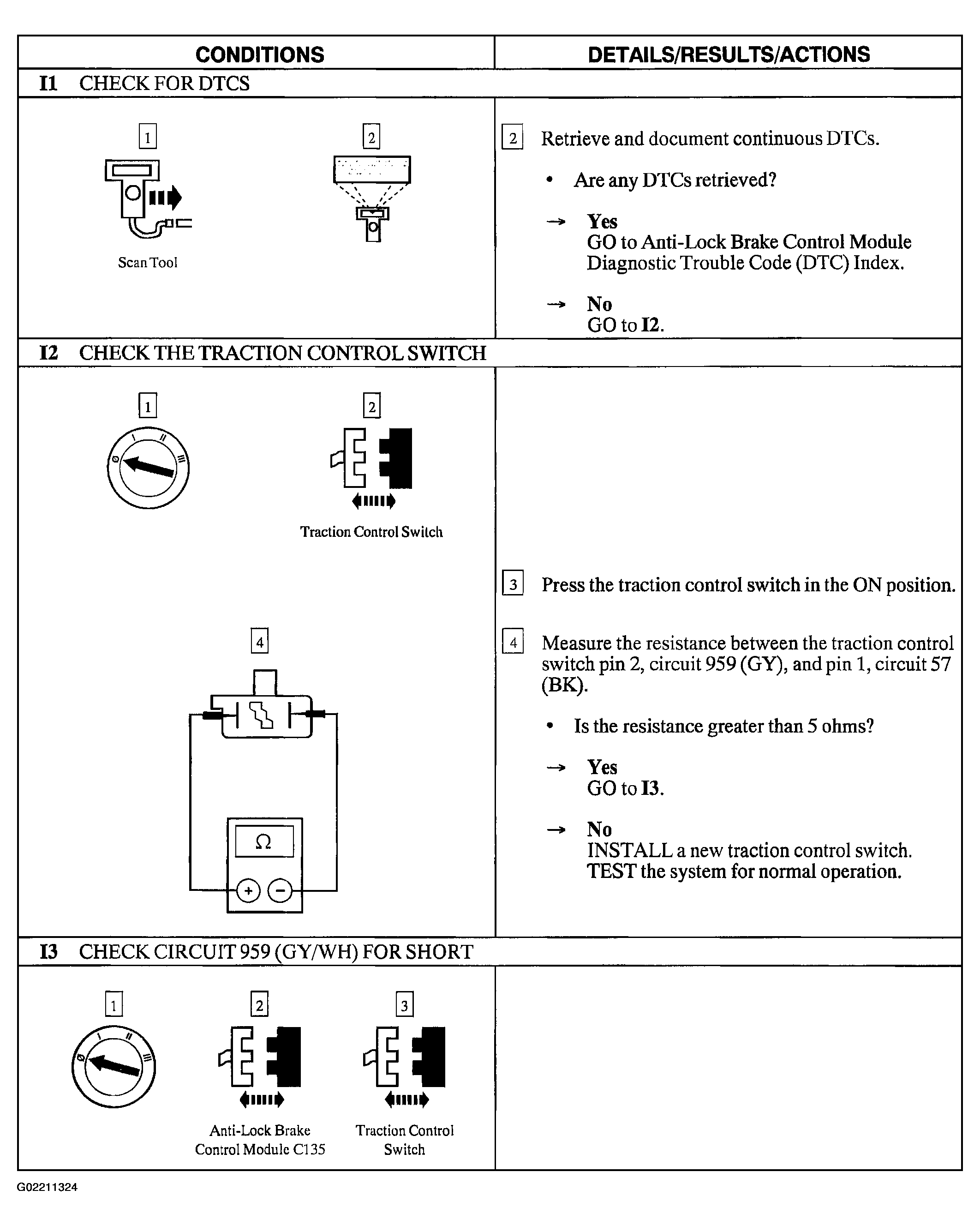

Fig 1: Pinpoint Test I: Traction Control Cannot Be Disabled/Is Inoperative (I1 - I3)

Courtesy of FORD MOTOR CO.

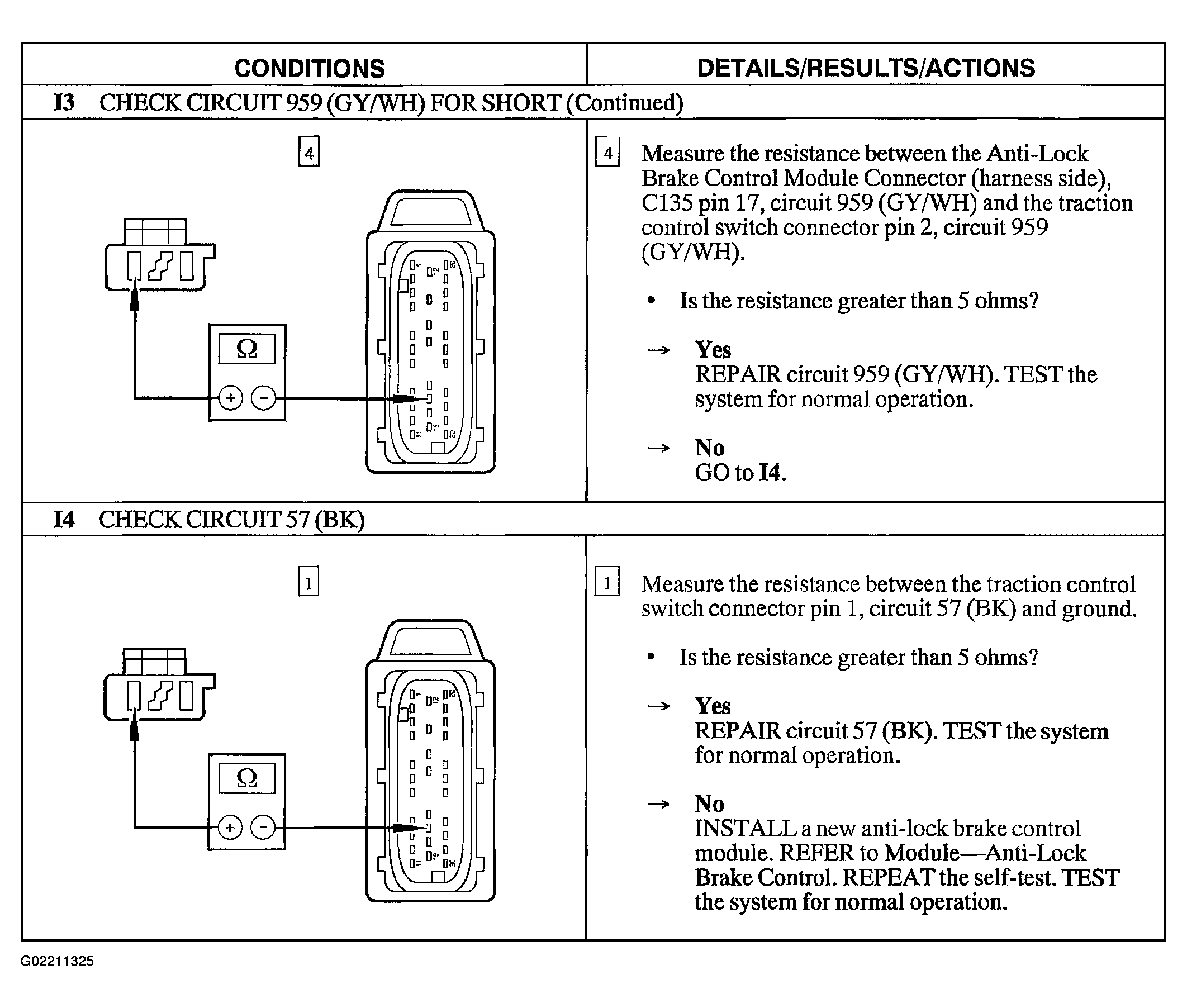

Fig 2: Pinpoint Test I: Traction Control Cannot Be Disabled/Is Inoperative (I3 - I4)

Courtesy of FORD MOTOR CO.

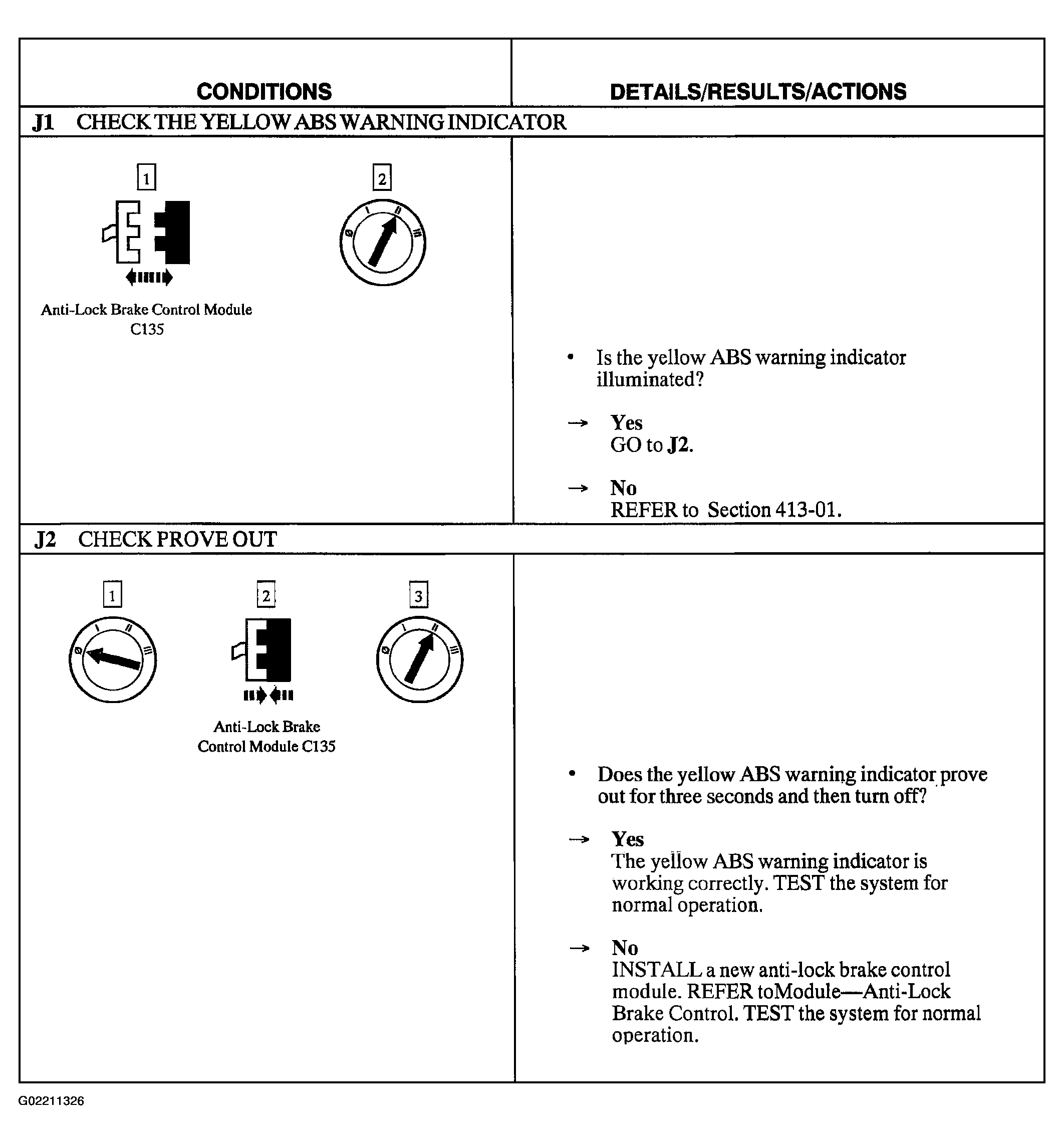

Fig 3: Pinpoint Test J: Yellow ABS Warning Indicator Does Not Self-Check

Courtesy of FORD MOTOR CO.
