Symptom Chart

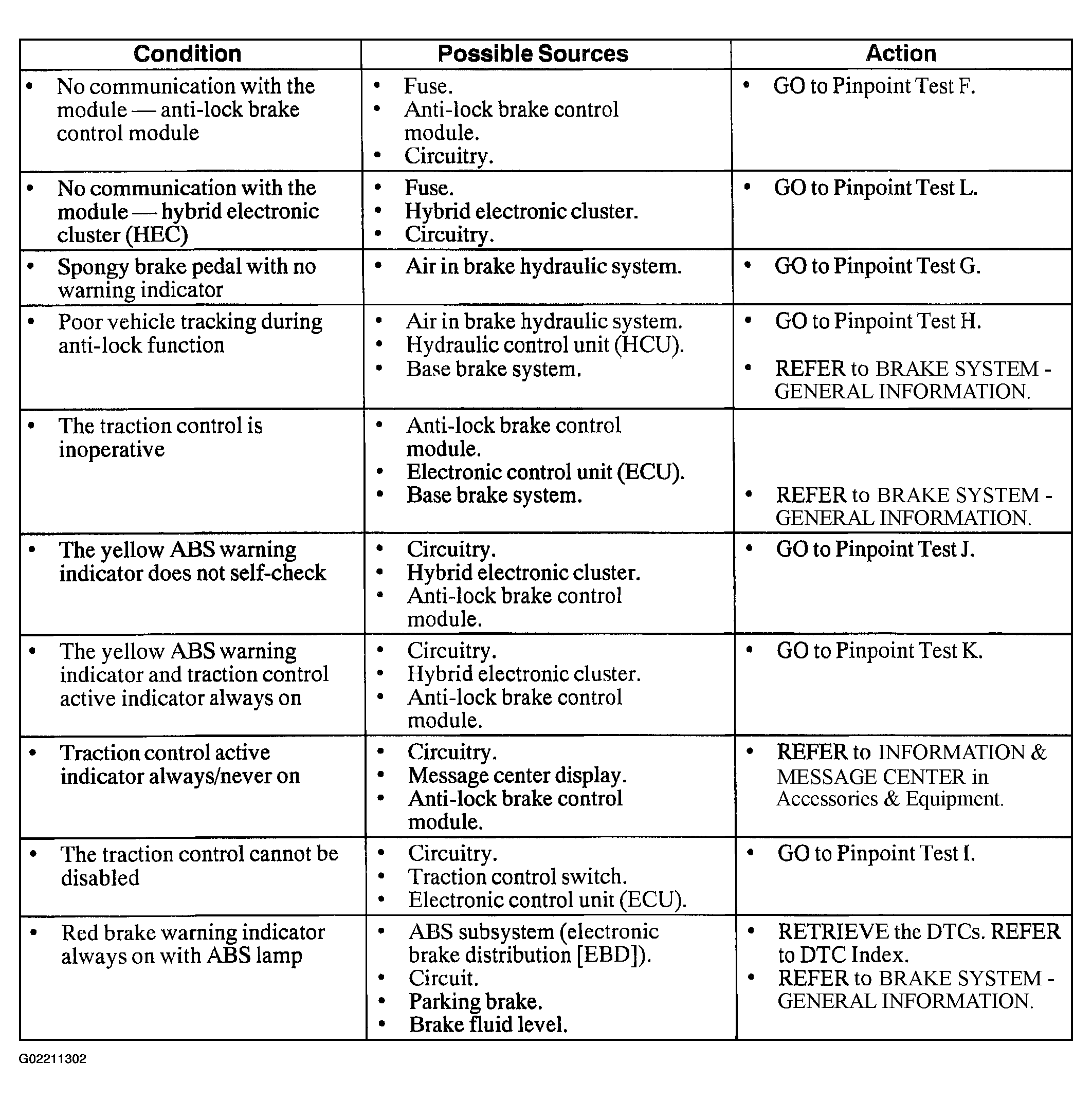

Fig 1: Anti-Lock Brake Control Trouble Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
